PRAMET 69871.40ADB-FMH1.40.050 Tooling system

Product Code: 69871.40ADB-FMH1.40.050

$258.32$234.84 Ex. GST

Product Code: 69871.40ADB-FMH1.40.050 SKU 69871.40ADB-FMH1.40.050 Categories CUTTING TOOLS (HSS & Carbide), Holding, N1 - Tooling system

Need Technical Advice?

Head over to our other technical website - millerstooling.com.au

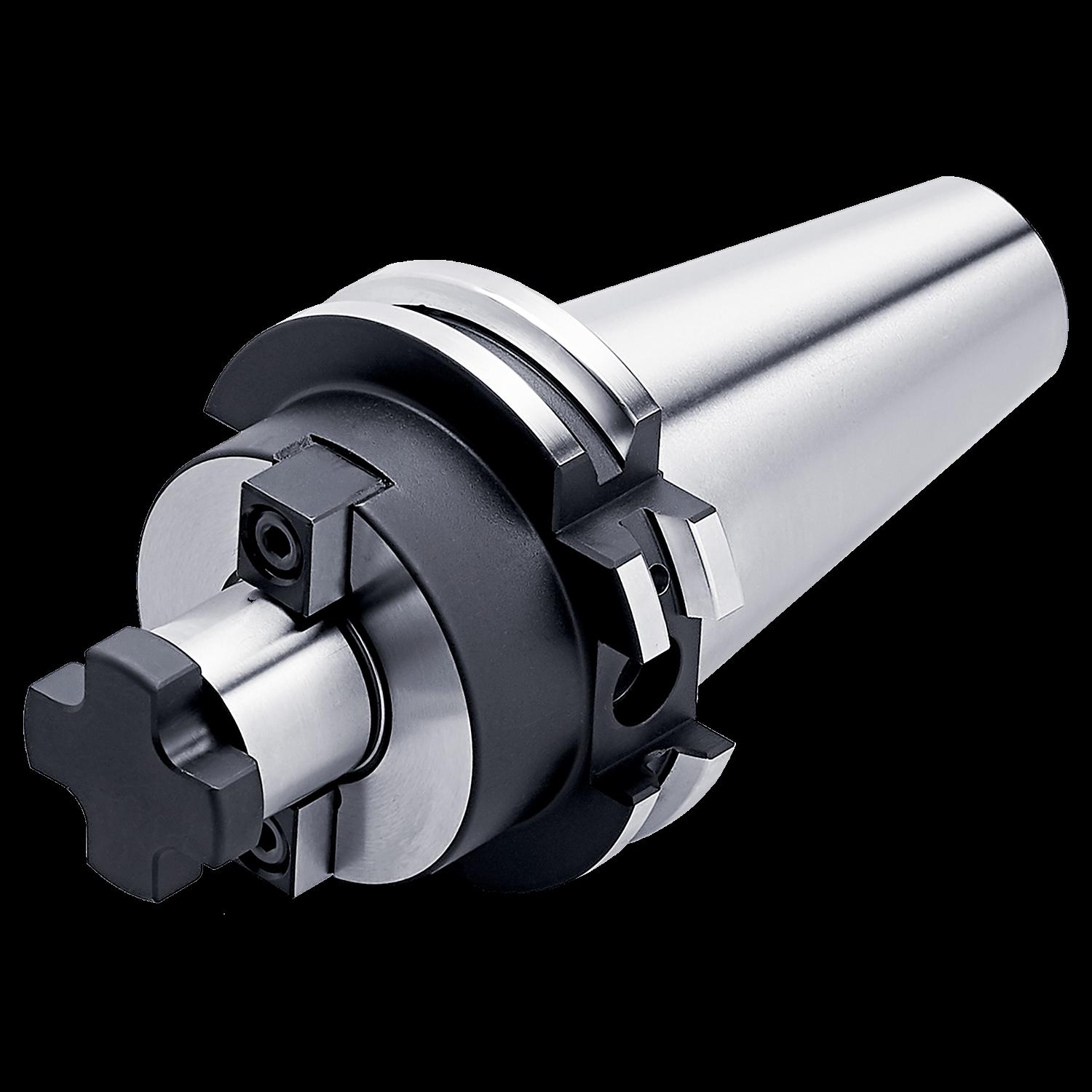

DIN 69871 – Shell mill holder with driving slot (B type)

Weight	0.2508 kg
barcode

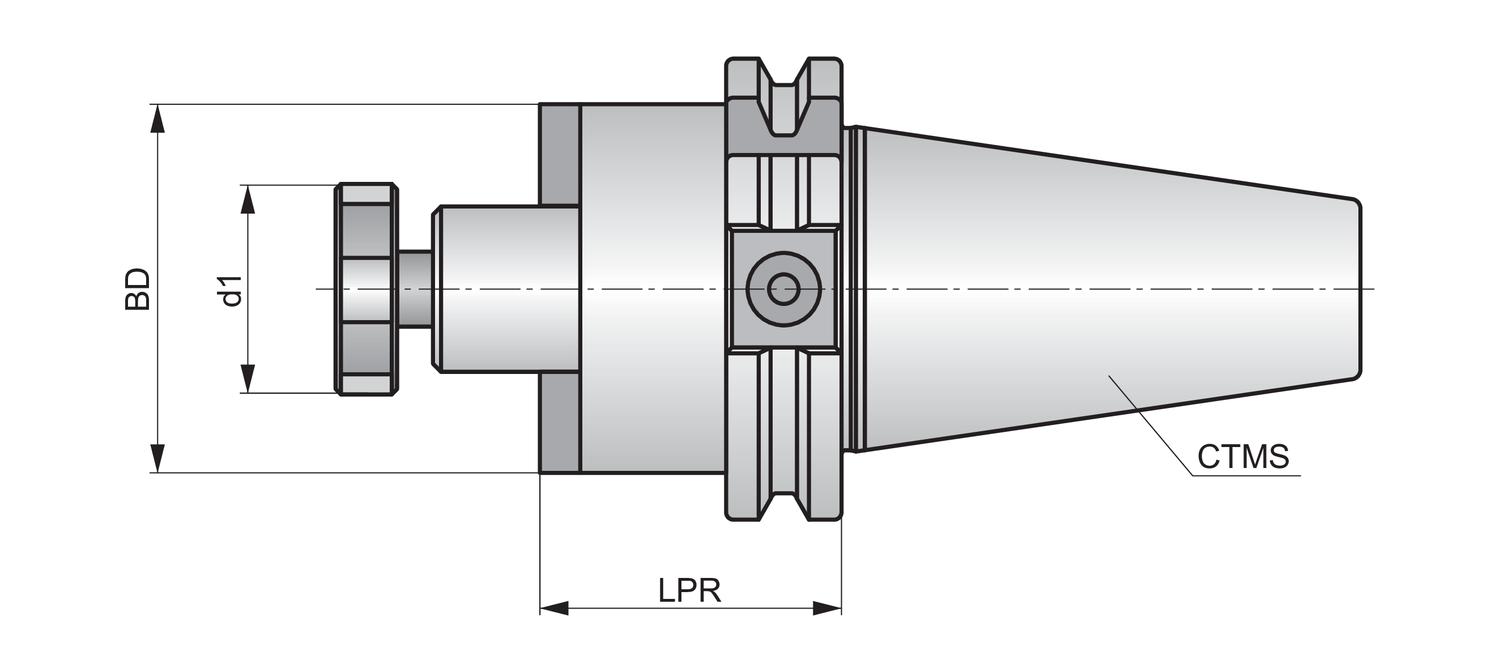

Additional Information	Description: Value Brand Name: Dormer Pramet EAN number: 3603603191907 Product number (SAP): 86027967 Size: 40 ISO: 69871.40ADB-FMH1.40.050 Ordering code ANSI: 69871.40ADB-FMH1.40.050 Net weight – grams: 2197.1 Gross weight – grams: 2359.1 Body diameter – millimeter (BD): 88 mm Connection diameter tolerance workpiece side (TCDCONWS): h6 Connection diameter workpiece side – millimeter (DCON WS): 40 mm Connection text machine side (CTMS): SK 40 Connection text range workpiece side (CTWS): 27 Functional length – millimeter (LF): 50 mm
