PRAMET 69871.40ADB-FMH2.22.055 Tooling system

Product Code: 69871.40ADB-FMH2.22.055

$75.34$68.49 Ex. GST

Product Code: 69871.40ADB-FMH2.22.055 SKU 69871.40ADB-FMH2.22.055 Categories CUTTING TOOLS (HSS & Carbide), Holding

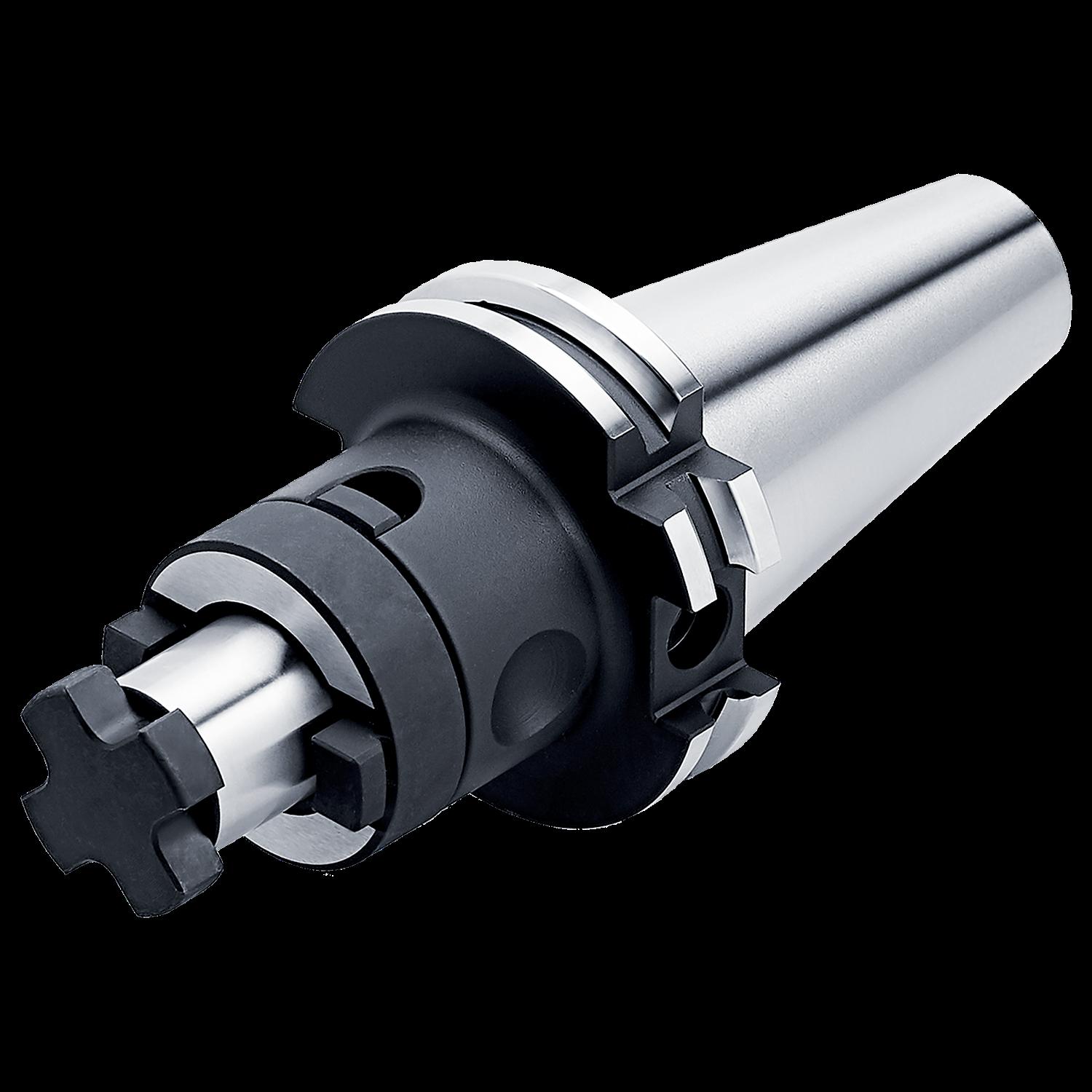

PRAMET 69871.40ADB-FMH2.22.055 Tooling system

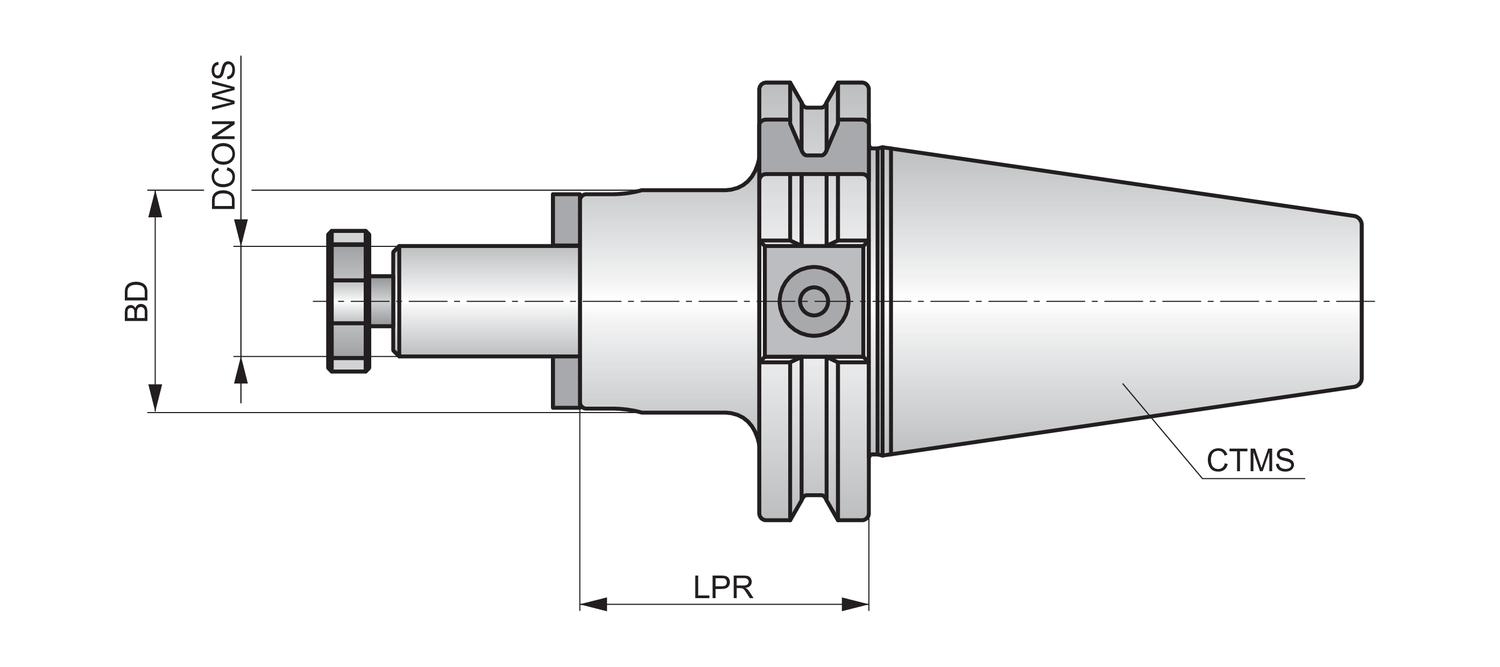

PRAMET 69871.40ADB-FMH2.22.055 Tooling system - Image 2

Need Technical Advice?

Head over to our other technical website - millerstooling.com.au

Description

DIN 69871 Combi Shell Mill Holder

Additional information

Weight	1.2820 kg
barcode
Additional Information	Description: Value Brand Name: Dormer Pramet EAN number: 3603603191471 Product number (SAP): 86027924 Size: 40 ISO: 69871.40ADB-FMH2.22.055 Ordering code ANSI: 69871.40ADB-FMH2.22.055 Net weight – grams: 1282 Gross weight – grams: 1293.3 Body diameter – millimeter (BD): 40 mm Connection diameter tolerance workpiece side (TCDCONWS): h6 Connection diameter workpiece side – millimeter (DCON WS): 22 mm Connection text machine side (CTMS): SK 40 Connection text range workpiece side (CTWS): 19 Functional length – millimeter (LF): 55 mm

Brand

Dormer Pramet
