PRAMET 69871.40ADB-FMH2.27.100 Tooling system

Product Code: 69871.40ADB-FMH2.27.100

$98.75$89.77 Ex. GST

Product Code: 69871.40ADB-FMH2.27.100 SKU 69871.40ADB-FMH2.27.100 Categories CUTTING TOOLS (HSS & Carbide), Holding

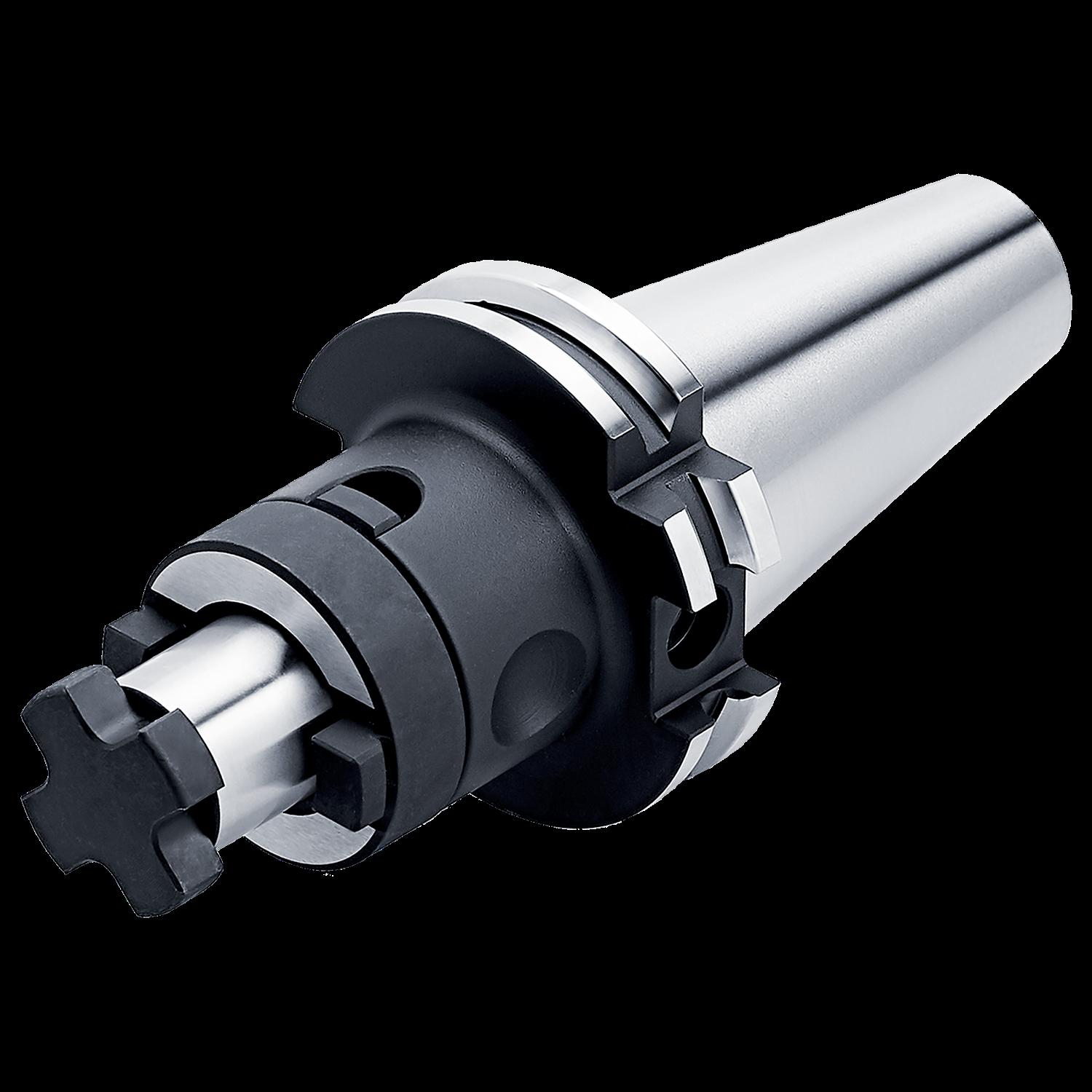

PRAMET 69871.40ADB-FMH2.27.100 Tooling system

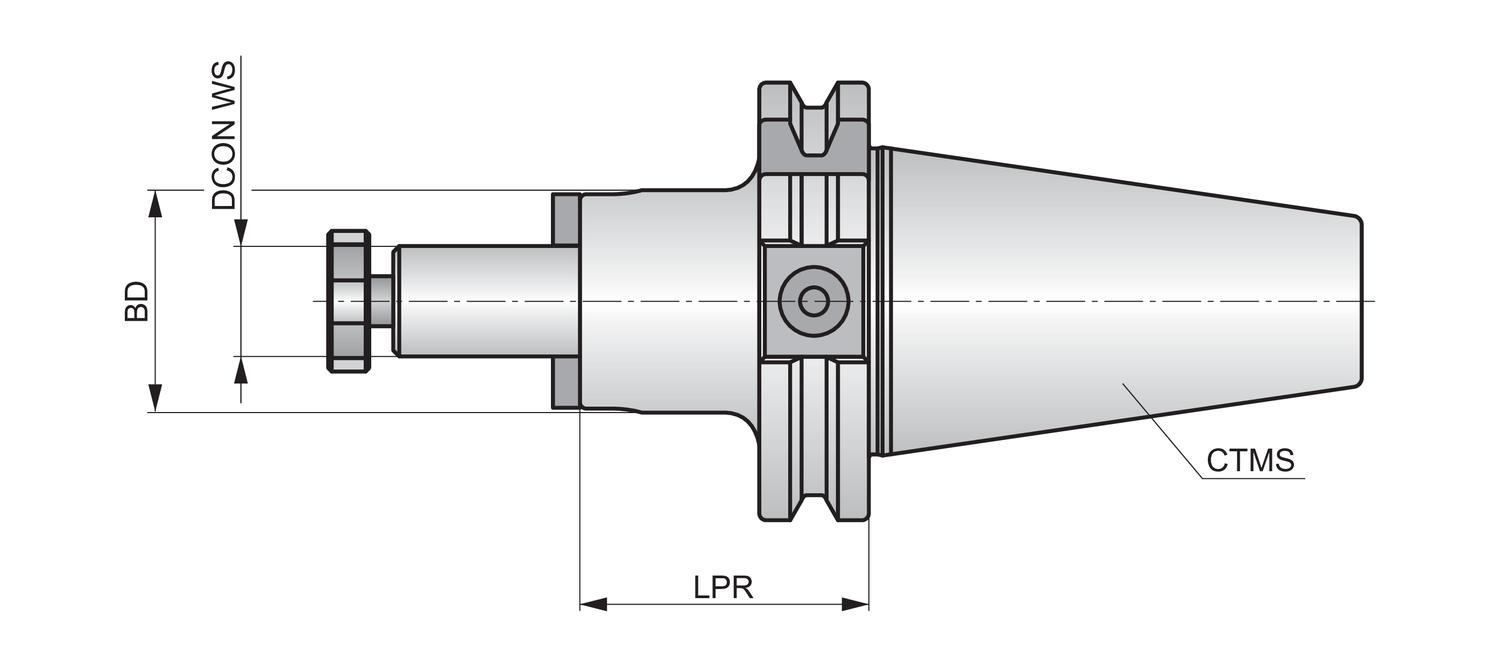

PRAMET 69871.40ADB-FMH2.27.100 Tooling system - Image 2

Need Technical Advice?

Head over to our other technical website - millerstooling.com.au

Description

DIN 69871 Combi Shell Mill Holder

Additional information

Weight	2.0020 kg
barcode
Additional Information	Description: Value Brand Name: Dormer Pramet EAN number: 3603603191518 Product number (SAP): 86027928 Size: 40 ISO: 69871.40ADB-FMH2.27.100 Ordering code ANSI: 69871.40ADB-FMH2.27.100 Net weight – grams: 2002 Gross weight – grams: 2113.9 Body diameter – millimeter (BD): 48 mm Connection diameter tolerance workpiece side (TCDCONWS): h6 Connection diameter workpiece side – millimeter (DCON WS): 27 mm Connection text machine side (CTMS): SK 40 Connection text range workpiece side (CTWS): 21 Functional length – millimeter (LF): 100 mm

Brand

Dormer Pramet
