PRAMET 69871.40ADB-FMH2.40.160 Tooling system

Product Code: 69871.40ADB-FMH2.40.160

$168.97$153.61 Ex. GST

Product Code: 69871.40ADB-FMH2.40.160 SKU 69871.40ADB-FMH2.40.160 Categories CUTTING TOOLS (HSS & Carbide), Holding

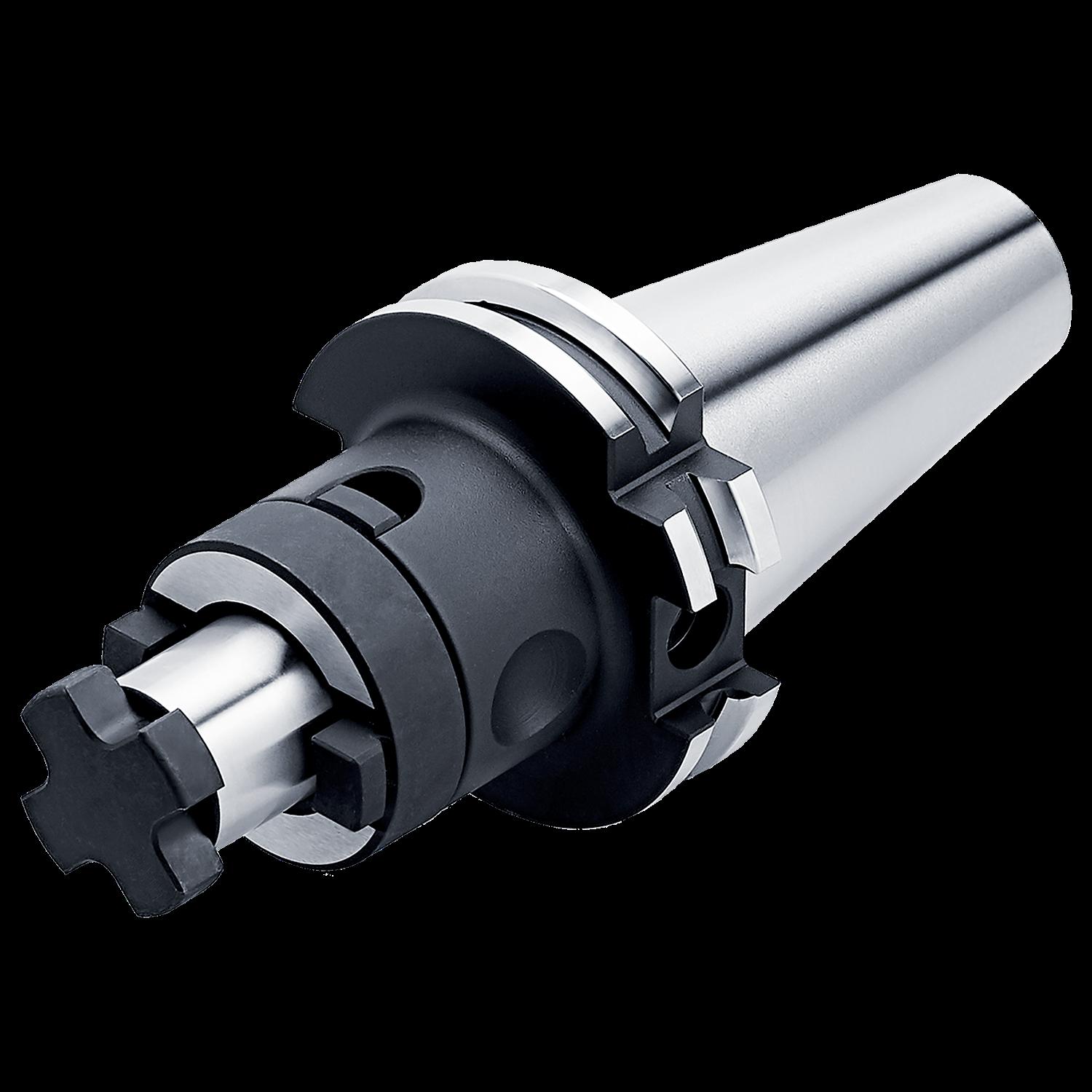

PRAMET 69871.40ADB-FMH2.40.160 Tooling system

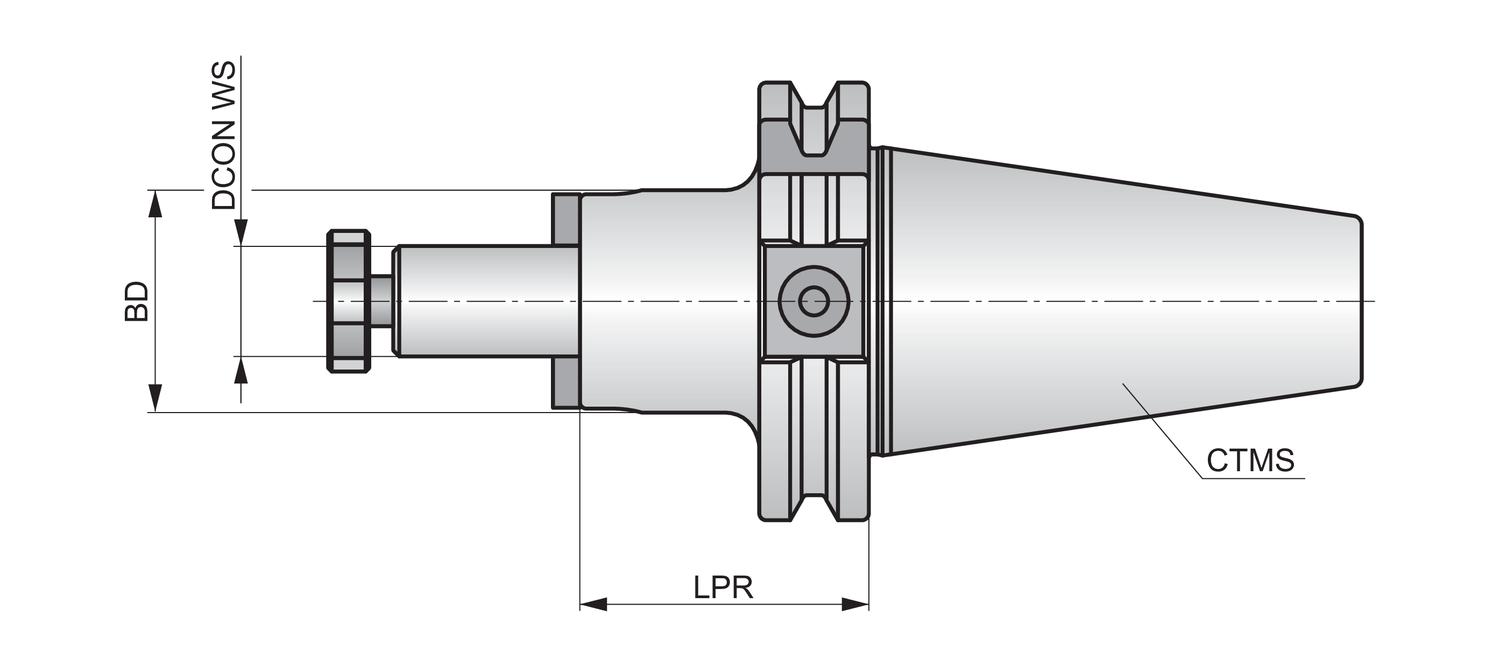

PRAMET 69871.40ADB-FMH2.40.160 Tooling system - Image 2

Need Technical Advice?

Head over to our other technical website - millerstooling.com.au

Description

DIN 69871 Combi Shell Mill Holder

Additional information

Weight	2.8000 kg
barcode
Additional Information	Description: Value Brand Name: Dormer Pramet EAN number: 3603603191587 Product number (SAP): 86027935 Size: 40 ISO: 69871.40ADB-FMH2.40.160 Ordering code ANSI: 69871.40ADB-FMH2.40.160 Net weight – grams: 2800 Gross weight – grams: 5125 Body diameter – millimeter (BD): 70 mm Connection diameter tolerance workpiece side (TCDCONWS): h6 Connection diameter workpiece side – millimeter (DCON WS): 40 mm Connection text machine side (CTMS): SK 40 Connection text range workpiece side (CTWS): 27 Functional length – millimeter (LF): 160 mm

Brand

Dormer Pramet
