PRAMET 69871.40ADB-HC.18.080 Tooling system

Product Code: 69871.40ADB-HC.18.080

$354.77$322.52 Ex. GST

Product Code: 69871.40ADB-HC.18.080 SKU 69871.40ADB-HC.18.080 Categories CUTTING TOOLS (HSS & Carbide), Holding

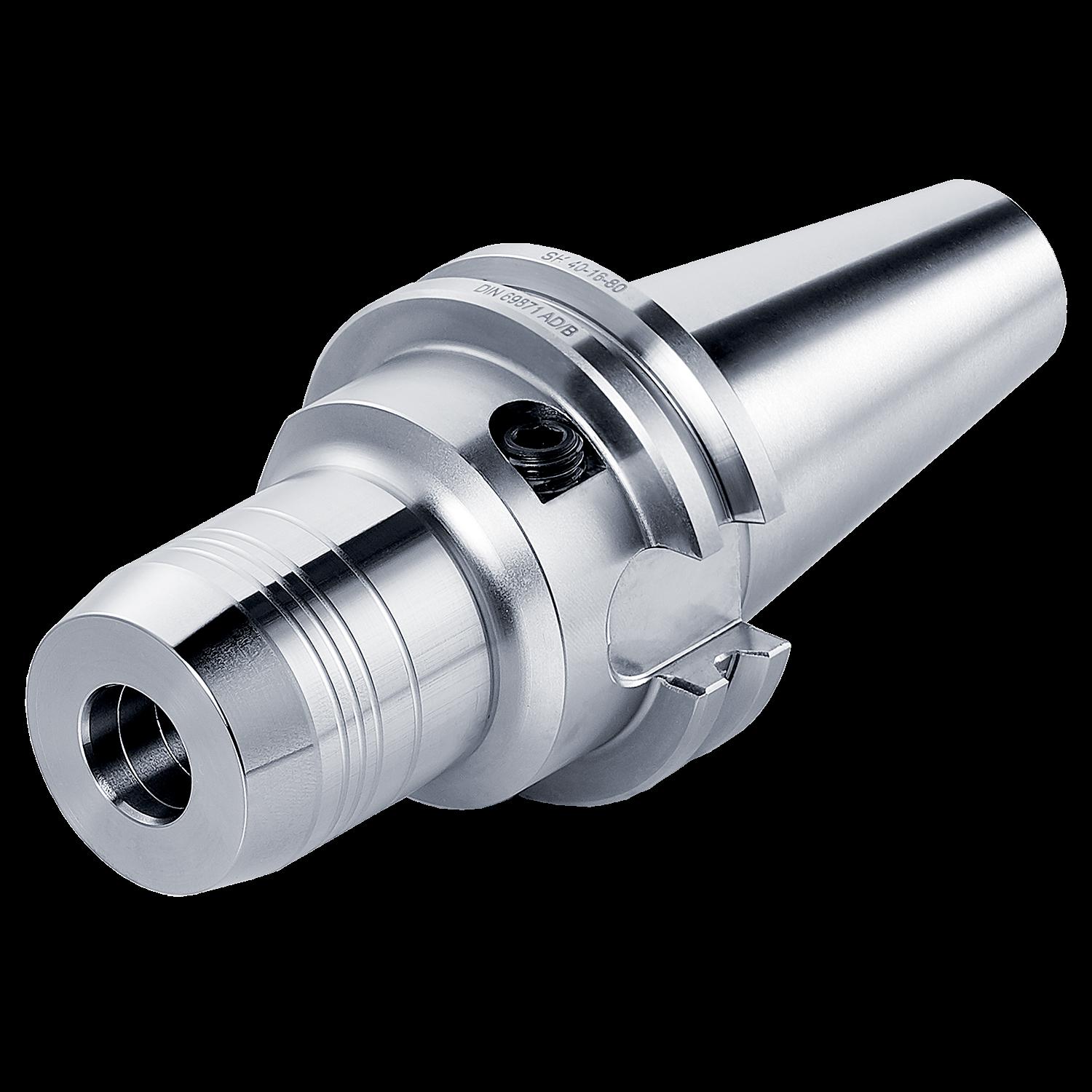

PRAMET 69871.40ADB-HC.18.080 Tooling system

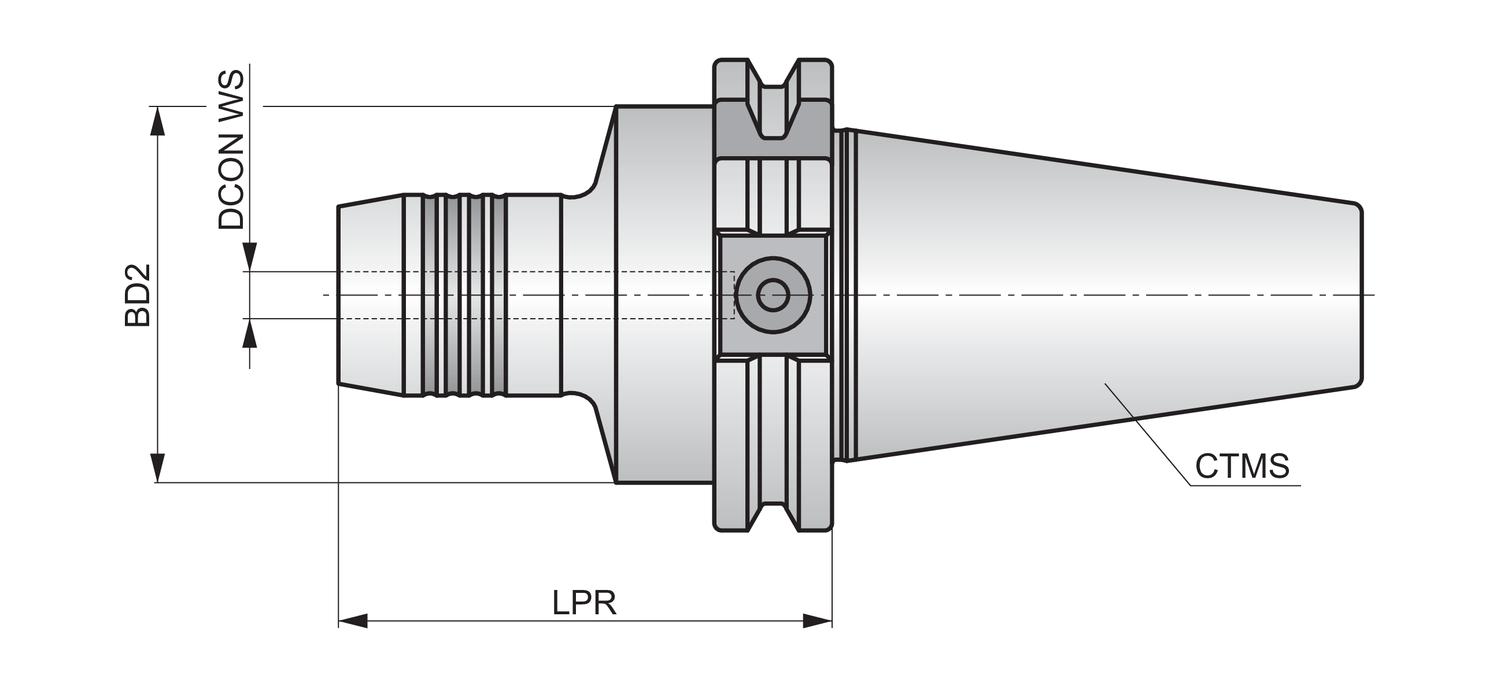

PRAMET 69871.40ADB-HC.18.080 Tooling system - Image 2

Need Technical Advice?

Head over to our other technical website - millerstooling.com.au

Description

DIN 69871 Hydraulic Chuck

Additional information

Weight	1.3000 kg
barcode
Additional Information	Description: Value Brand Name: Dormer Pramet EAN number: 3603603192645 Product number (SAP): 86028041 Size: 40 ISO: 69871.40ADB-HC.18.080 Ordering code ANSI: 69871.40ADB-HC.18.080 Net weight – grams: 1300 Gross weight – grams: 1432 Body diameter – millimeter (BD): 40 mm Body diameter 2 – millimeters (BD2): 50 mm Body length – millimeter (LB): 43 mm Connection diameter workpiece side – millimeter (DCON WS): 18 mm Connection text machine side (CTMS): SK 40 Protruding length – millimeter (LPR): 80 mm

Brand

Dormer Pramet
