PRAMET 69871.40ADB-HC.20.082 Tooling system

Product Code: 69871.40ADB-HC.20.082

$354.77$322.52 Ex. GST

Product Code: 69871.40ADB-HC.20.082 SKU 69871.40ADB-HC.20.082 Categories CUTTING TOOLS (HSS & Carbide), Holding

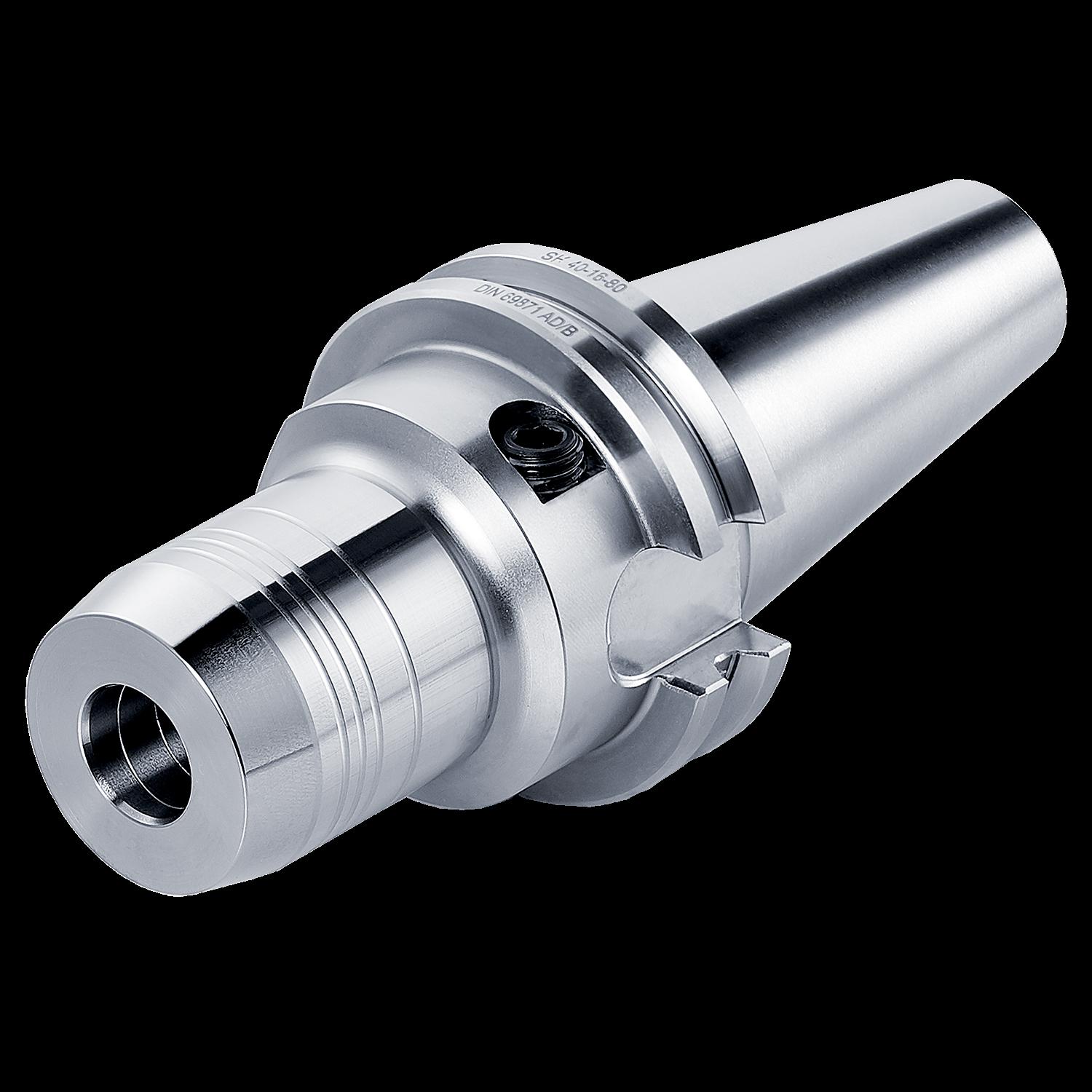

PRAMET 69871.40ADB-HC.20.082 Tooling system

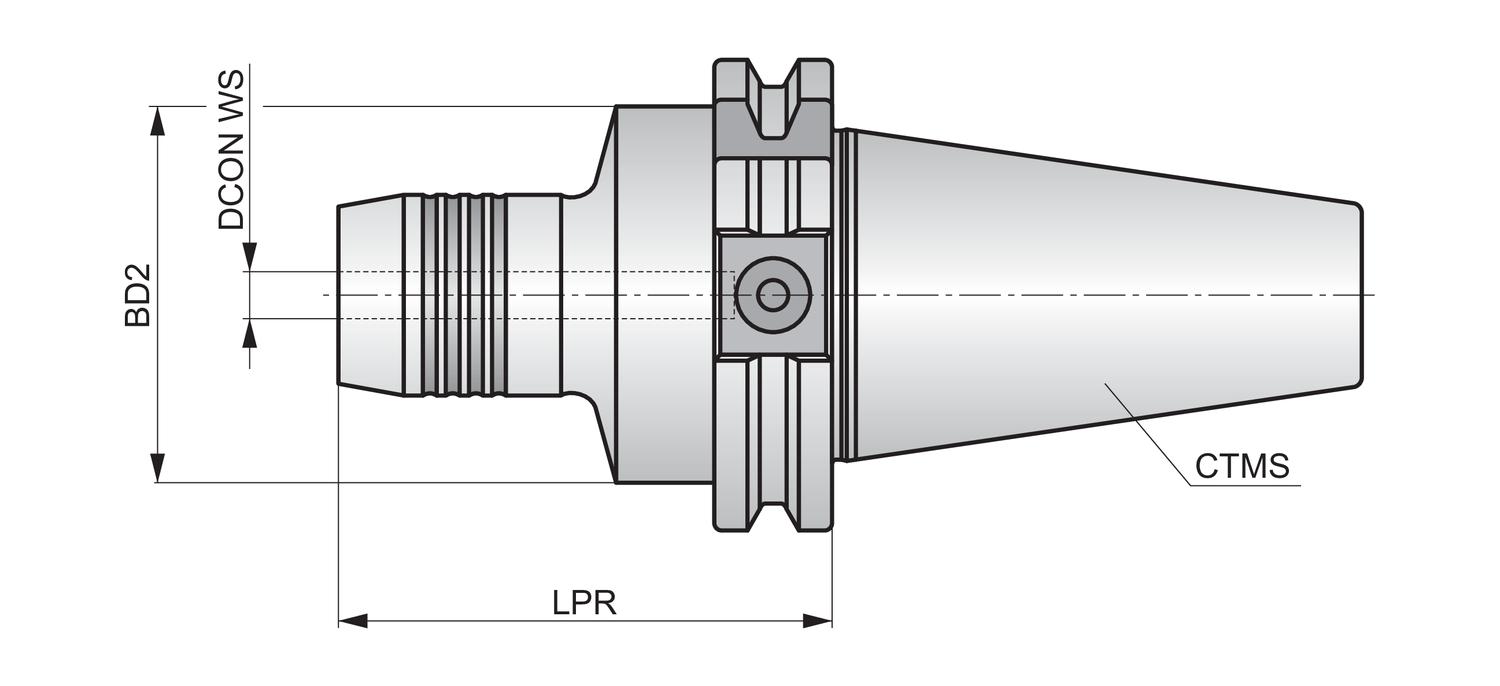

PRAMET 69871.40ADB-HC.20.082 Tooling system - Image 2

Need Technical Advice?

Head over to our other technical website - millerstooling.com.au

Description

DIN 69871 Hydraulic Chuck

Additional information

Weight	1.4230 kg
barcode
Additional Information	Description: Value Brand Name: Dormer Pramet EAN number: 3603603192669 Product number (SAP): 86028043 Size: 40 ISO: 69871.40ADB-HC.20.082 Ordering code ANSI: 69871.40ADB-HC.20.082 Net weight – grams: 1423 Gross weight – grams: 1483.4 Body diameter – millimeter (BD): 42 mm Body diameter 2 – millimeters (BD2): 50 mm Body length – millimeter (LB): 47 mm Connection diameter workpiece side – millimeter (DCON WS): 20 mm Connection text machine side (CTMS): SK 40 Protruding length – millimeter (LPR): 82 mm

Brand

Dormer Pramet
