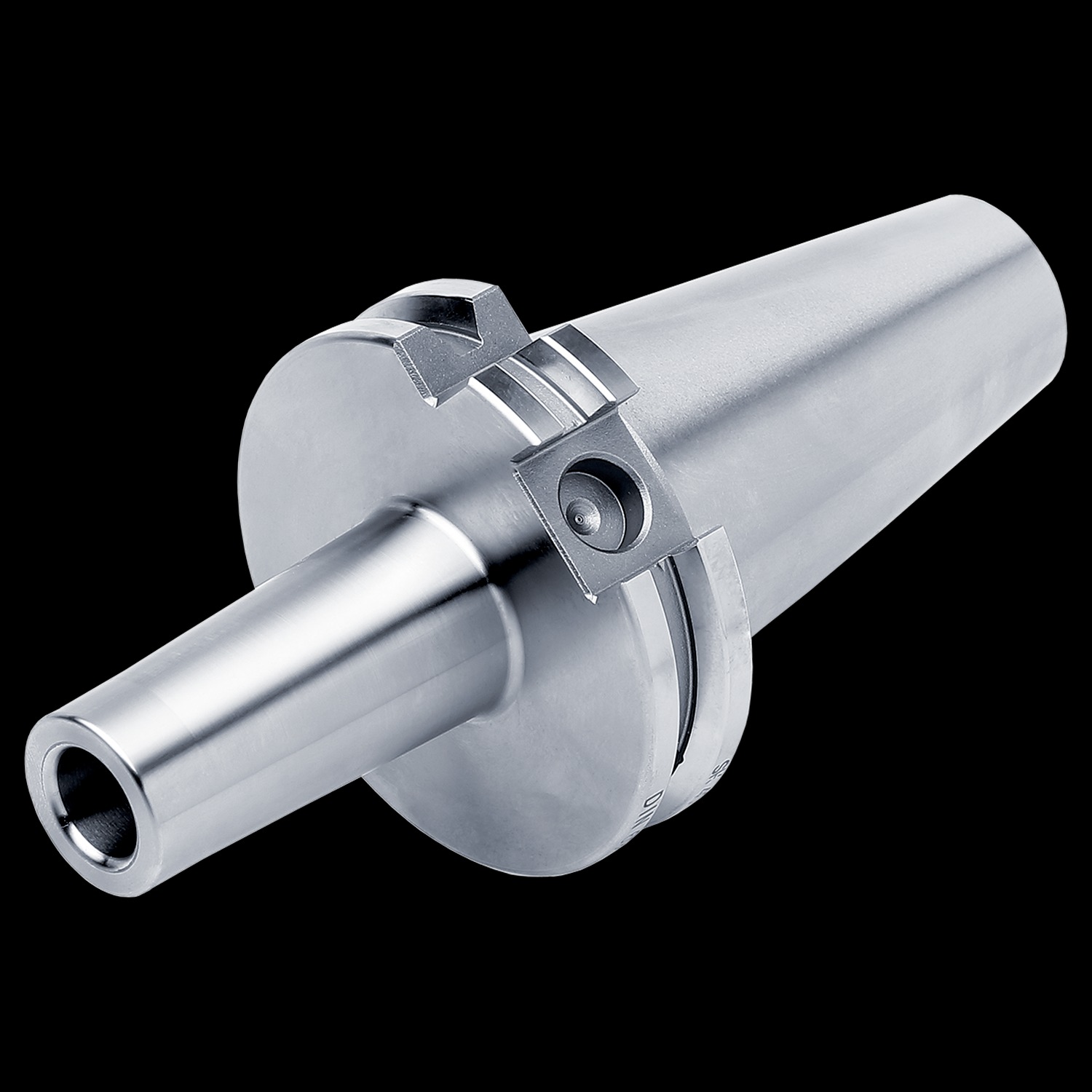

PRAMET 69871.40ADB-IHA.M12.025 Tooling system

Description: Value
Brand Name: Dormer Pramet
EAN number: 3603603194229
Product number (SAP): 86028199
Size: 40
ISO: 69871.40ADB-IHA.M12.025
Ordering code ANSI: 69871.40ADB-IHA.M12.025
Net weight – grams: 832.5
Gross weight – grams: 924.8
Body diameter – millimeter (BD): 21 mm
Body diameter 2 – millimeters (BD2): 24 mm
Body length – millimeter (LB): 44 mm
Connection diameter tolerance workpiece side (TCDCONWS): H4
Connection diameter workpiece side – millimeter (DCON WS): 12.5 mm
Connection text machine side (CTMS): SK 40
Connection thread nominal size workpiece side (THSZWS): M12
Protruding length – millimeter (LPR): 44 mm
