PRAMET 69871.50A-QTCC.M5.M22 Tooling system

Product Code: 69871.50A-QTCC.M5.M22

$912.07$829.15 Ex. GST

Product Code: 69871.50A-QTCC.M5.M22 SKU 69871.50A-QTCC.M5.M22 Categories CUTTING TOOLS (HSS & Carbide), Holding, N1 - Tooling system

Need Technical Advice?

Head over to our other technical website - millerstooling.com.au

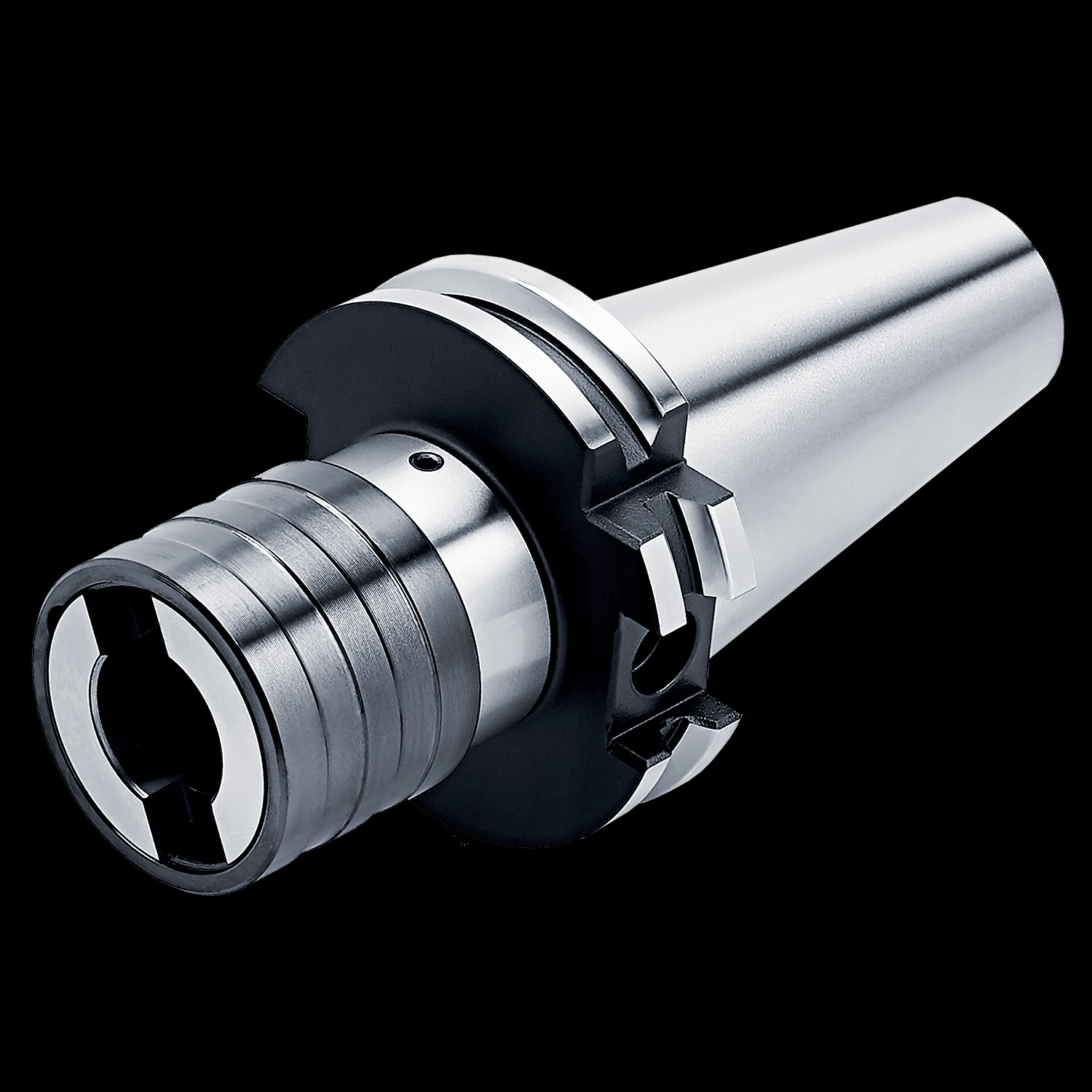

DIN 69871 Quick-Change Tapping Chuck With Compensation

Weight	0.8855 kg
barcode
Additional Information	Description: Value Brand Name: Dormer Pramet EAN number: 3603603192294 Product number (SAP): 86028006 Size: 50 ISO: 69871.50A-QTCC.M5.M22 Ordering code ANSI: 69871.50A-QTCC.M5.M22 Net weight – grams: 3570 Gross weight – grams: 3715.6 Axial Floating Back – millimeters (FLB): 12 mm Axial Floating Forward – millimeters (FLF): 12 mm Body diameter – millimeter (BD): 54 mm Connection diameter workpiece side – millimeter (DCON WS): 31 mm Connection text machine side (CTMS): SK 50 Functional length – millimeter (LF): 97 mm
