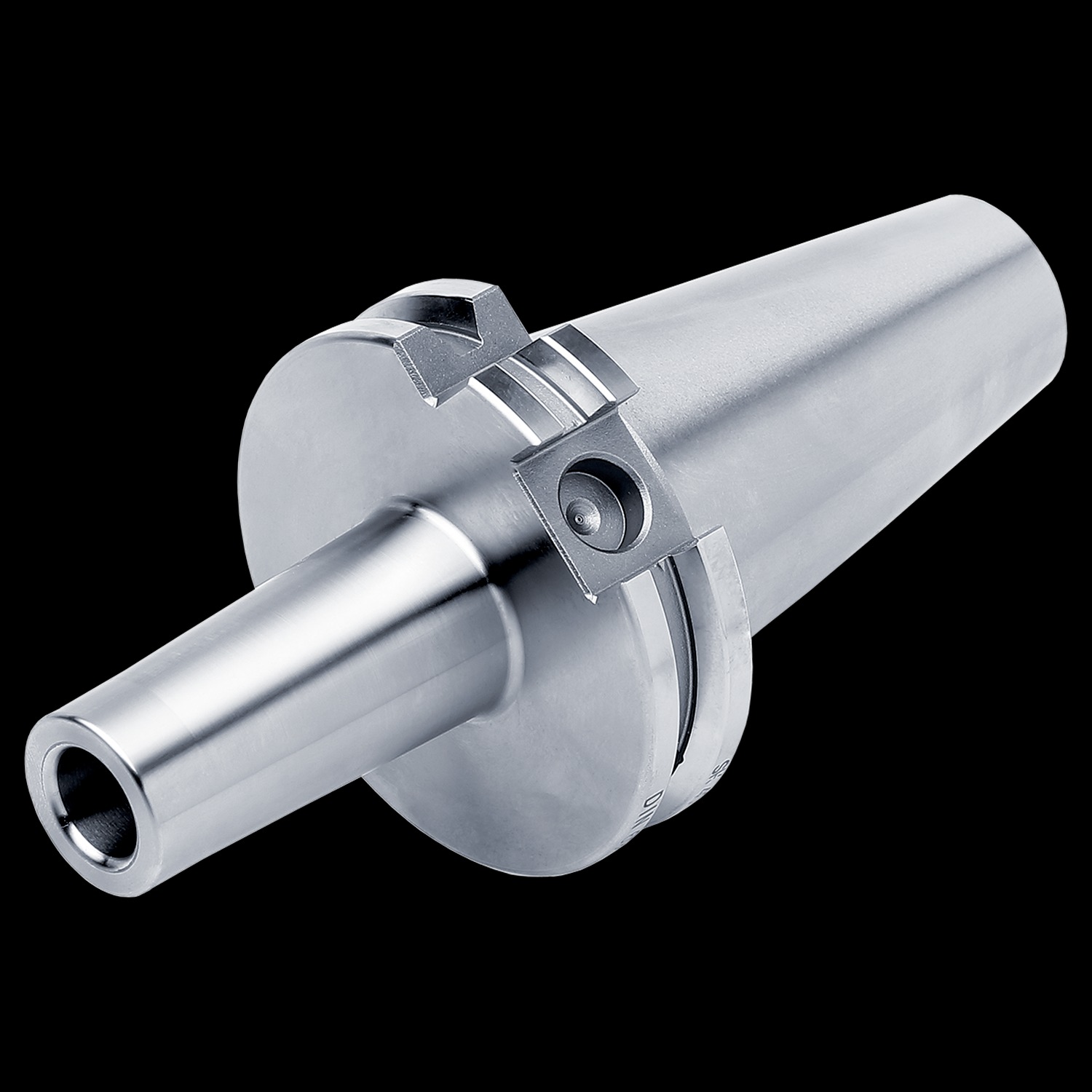

PRAMET 69871.50ADB-IHA.M12.150 Tooling system

Description: Value
Brand Name: Dormer Pramet
EAN number: 3603603194458
Product number (SAP): 86028222
Size: 50
ISO: 69871.50ADB-IHA.M12.150
Ordering code ANSI: 69871.50ADB-IHA.M12.150
Net weight – grams: 3374
Gross weight – grams: 3374
Body diameter – millimeter (BD): 21 mm
Body diameter 2 – millimeters (BD2): 40 mm
Body length – millimeter (LB): 169 mm
Connection diameter tolerance workpiece side (TCDCONWS): H4
Connection diameter workpiece side – millimeter (DCON WS): 12.5 mm
Connection text machine side (CTMS): SK 50
Connection thread nominal size workpiece side (THSZWS): M12
Protruding length – millimeter (LPR): 169 mm
