PRAMET 69871.50ADB-W.40.100.C Tooling system

Product Code: 69871.50ADB-W.40.100.C

$335.37$304.88 Ex. GST

Product Code: 69871.50ADB-W.40.100.C SKU 69871.50ADB-W.40.100.C Categories CUTTING TOOLS (HSS & Carbide), Holding, N1 - Tooling system

Need Technical Advice?

Head over to our other technical website - millerstooling.com.au

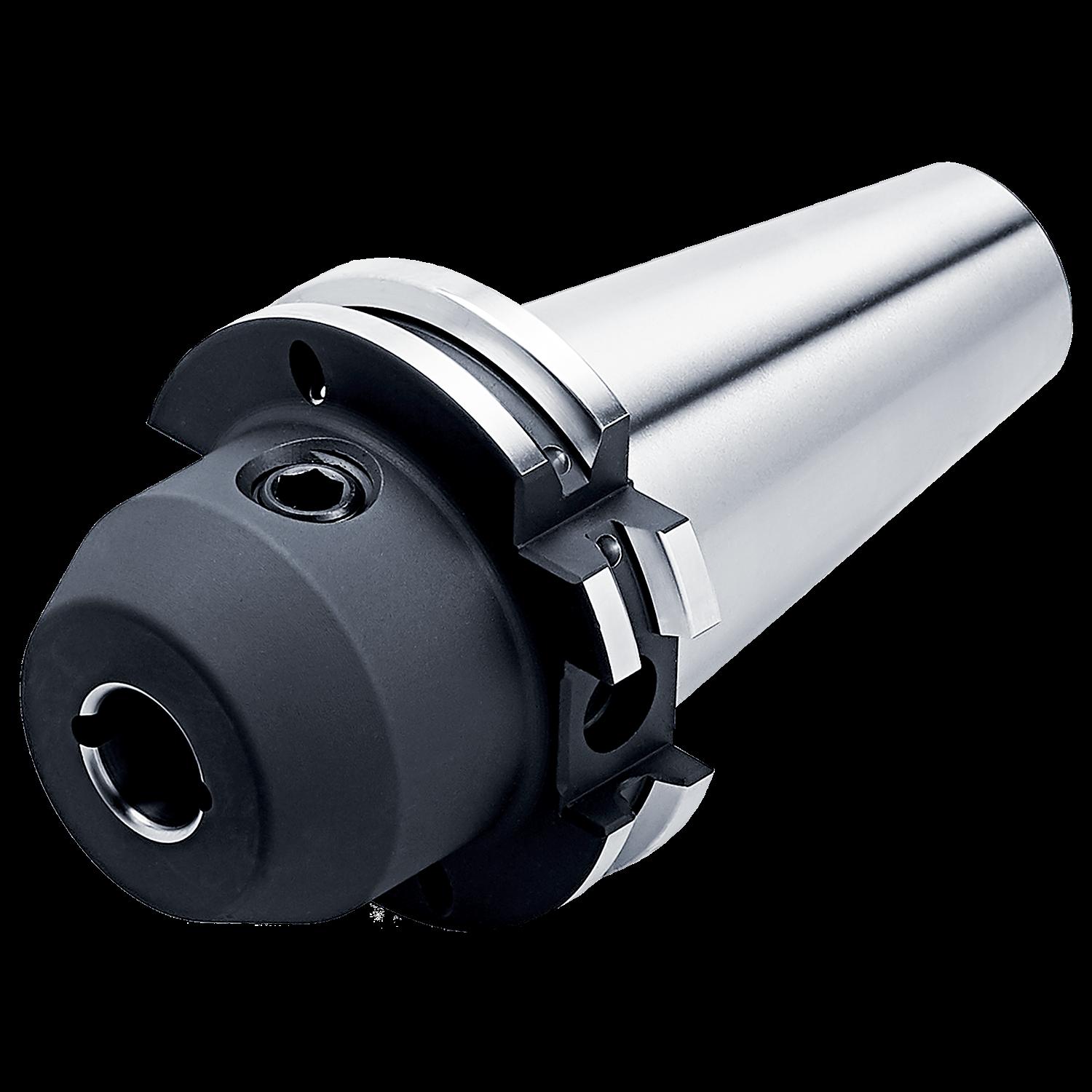

DIN 69871 Weldon End Mill Holder With Coolant Channels

Weight	0.3256 kg
barcode
Additional Information	Description: Value Brand Name: Dormer Pramet EAN number: 3603603191075 Product number (SAP): 86027884 Size: 50 ISO: 69871.50ADB-W.40.100.C Ordering code ANSI: 69871.50ADB-W.40.100.C Net weight – grams: 4843 Gross weight – grams: 4989.4 Body diameter – millimeter (BD): 80 mm Connection diameter tolerance workpiece side (TCDCONWS): H4 Connection diameter workpiece side – millimeter (DCON WS): 40 mm Connection text machine side (CTMS): SK 50 Protruding length – millimeter (LPR): 100 mm
