PRAMET 802D-1032-206-S125 Drills

Product Code: 802D-1032-206-S125

$760.24$691.13 Ex. GST

Product Code: 802D-1032-206-S125 SKU 802D-1032-206-S125 Categories , ,
PRAMET 802D-1032-206-S125 Drills

Need Technical Advice?

Head over to our other technical website - millerstooling.com.au
Get advice now

Description

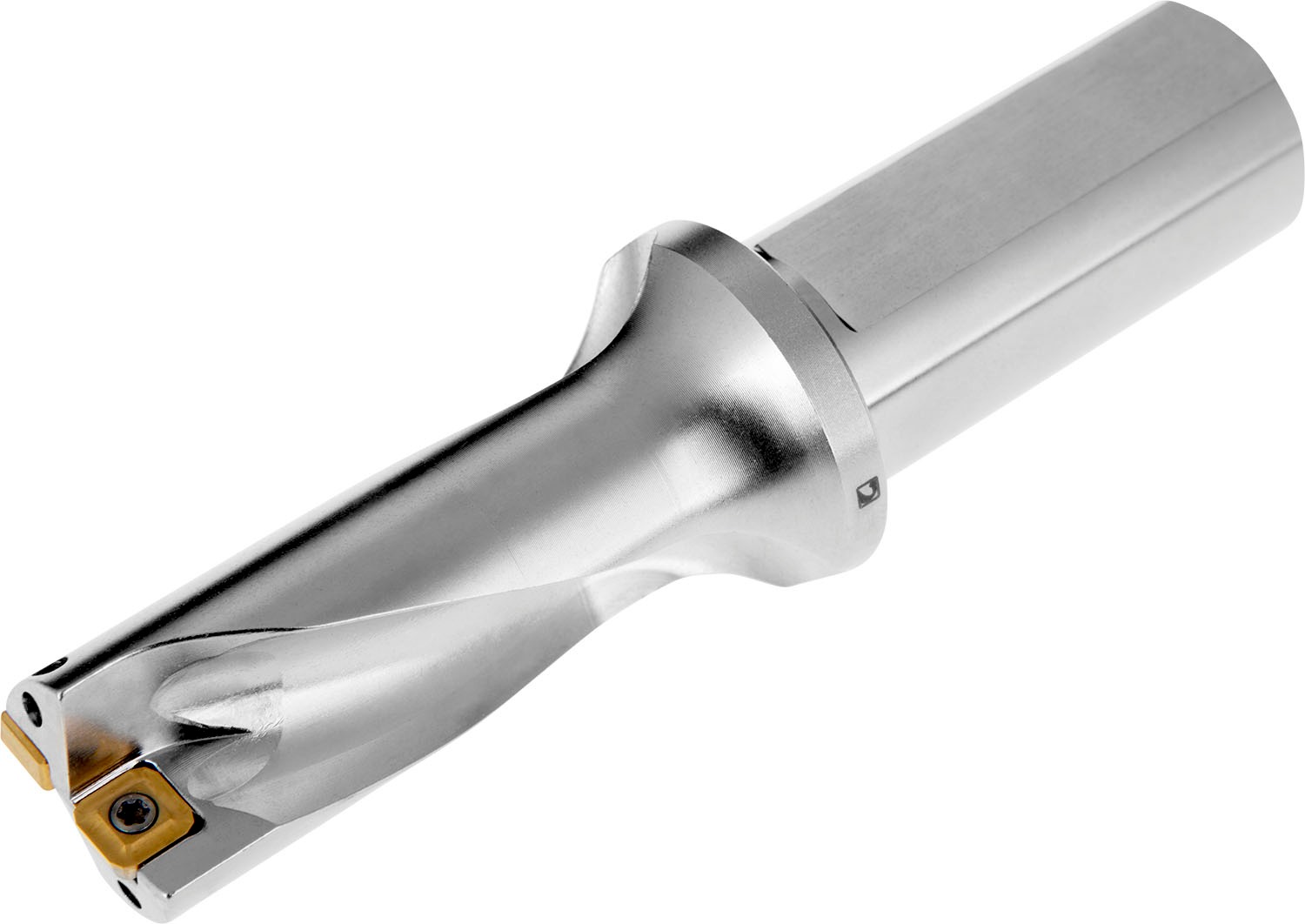

Indexable insert drill which utilises an XPET 0903.. insert in the central pocket and a SCET 0703.. insert in the peripheral pocket, cutting diameter 1.032”, with a 1.250” cylindrical shank with flat according to ISO 9766 and through coolant for maximum drilling depths up to 2 x D

Additional information

Weight 0.7381 kg
barcode
Additional Information

Description: Value
Product name: 802D-1032-206-S125
Cutting diameter – inch (DC): 1.032 inch
Depth of cut maximum – inch (APMX): 2.064 inch
Overall length – inch (OAL): 5.409 inch
Protruding length – inch (LPR): 3.047 inch
Shank length – inch (LS): 2.362 inch
Usable Length – inch (LU): 2.283 inch
Connection diameter – inch (DCON MS): 1.25 inch
Adjustment limit minimum – inch (ADJLN): 0.004 inch
Adjustment limit maximum – inch (ADJLX): 0.019 inch
ISO: 802D-1032-206-S125

Brand

PRAMET
