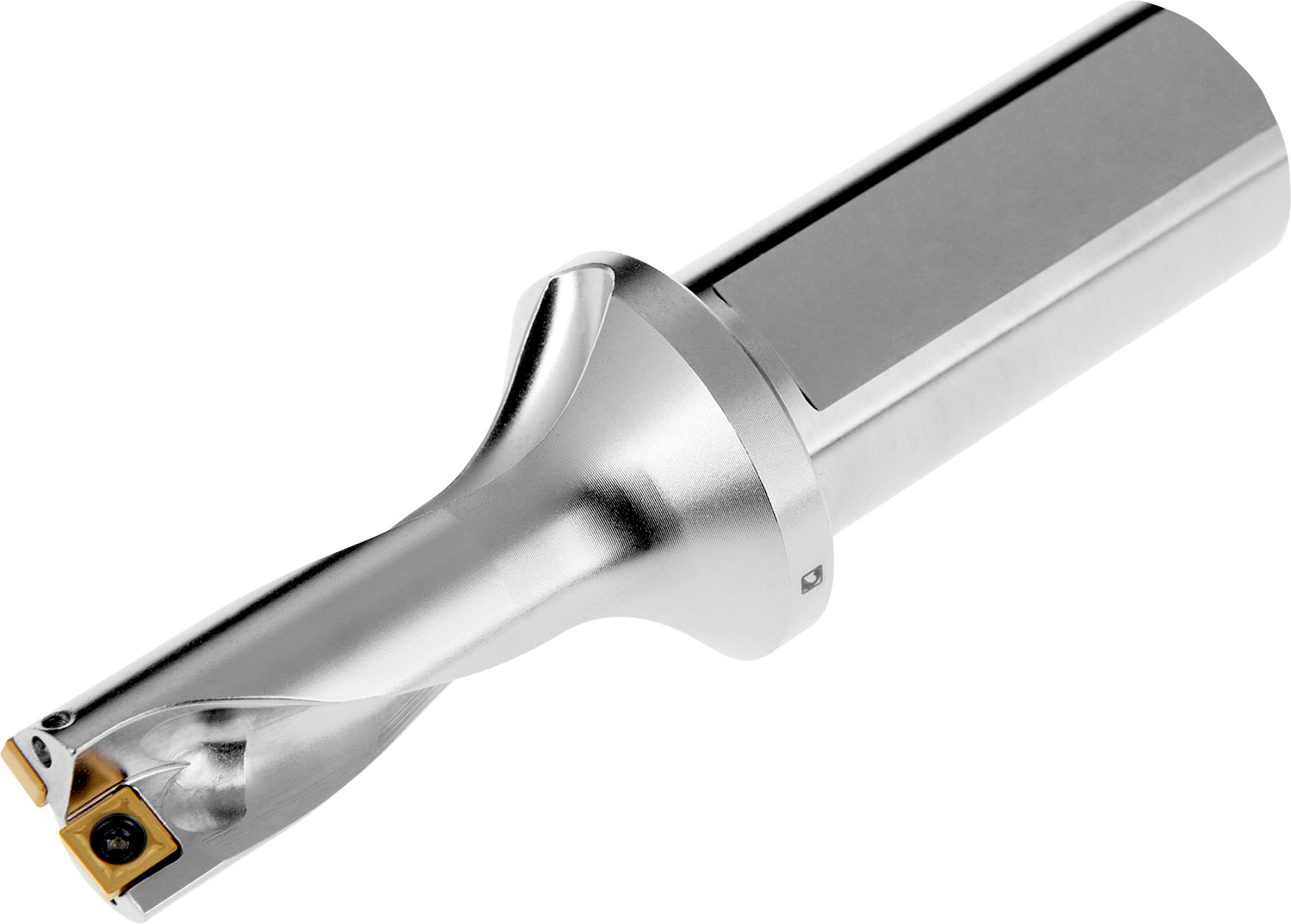

PRAMET 802D-16-32-S25 Drills

Description

Indexable insert drill which utilises an XPET 0502.. insert in the central pocket and a SCET 0502.. insert in the peripheral pocket, cutting diameter 16mm in combination with EP253253, suited for a radial adjustment of -0.15 to +0.45mm, with a 25mm cylindrical shank with flat according to ISO 9766 and through coolant for maximum drilling depths up to 2 x D

Additional information

Weight	0.6919 kg
Dimensions
barcode
Additional Information	Description: Value EAN number: 3603603005020 Product number (SAP): 86022323 Ordering code ANSI: 802D-16-32-S25 Gross weight – grams: 322.1 Cutting diameter – millimeter (DC): 16 mm Depth of cut maximum – millimeter (APMX): 32 mm Overall length – millimeter (OAL): 123 mm Protruding length – millimeter (LPR): 67 mm Shank length – millimeter (LS): 56 mm Usable Length – millimeter (LU): 37 mm Connection diameter – millimeter (DCON MS): 25 mm Flange diameter – millimeter (DF): 35 mm Adjustment limit minimum – millimeter (ADJLN): 0.15 mm Adjustment limit maximum – millimeter (ADJLX): 0.45 mm Adjustment Sleeve Code: EP253253 Net weight – grams: 294.1 ISO: 802D-16-32-S25

Need Technical Advice?

Description

Additional information

Brand

PRAMET
