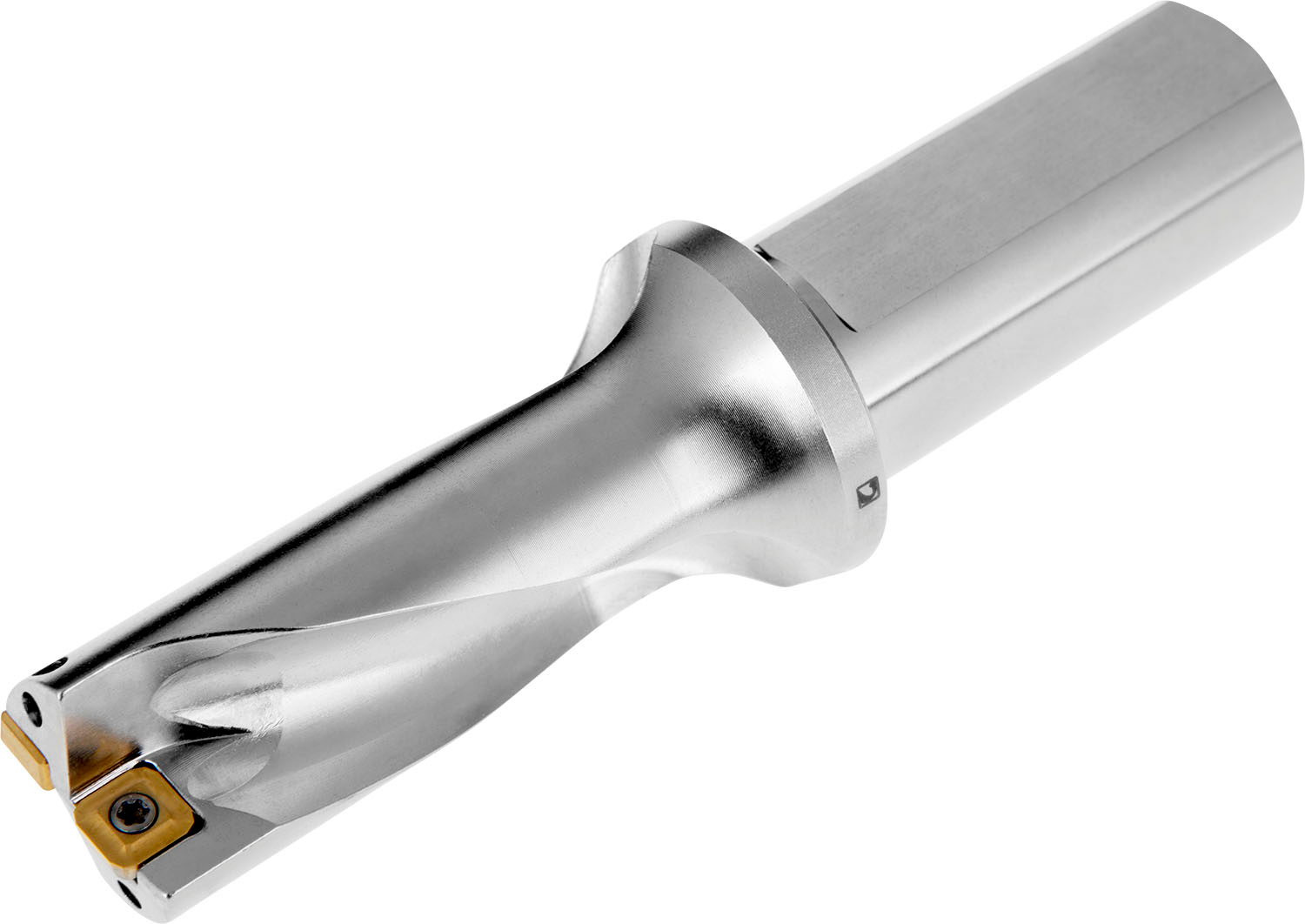

PRAMET 802D-22-44-S25 Drills

Description

Indexable insert drill which utilises an XPET 0703.. insert in the central pocket and a SCET 0602.. insert in the peripheral pocket, cutting diameter 22mm in combination with EP253253, suited for a radial adjustment of -0.45 to +0.50mm, with a 25mm cylindrical shank with flat according to ISO 9766 and through coolant for maximum drilling depths up to 2 x D

Additional information

Weight	0.7414 kg
Dimensions
barcode
Additional Information	Description: Value EAN number: 3603603005082 Product number (SAP): 86022328 Ordering code ANSI: 802D-22-44-S25 Gross weight – grams: 374.8 Cutting diameter – millimeter (DC): 22 mm Depth of cut maximum – millimeter (APMX): 44 mm Overall length – millimeter (OAL): 135 mm Protruding length – millimeter (LPR): 79 mm Shank length – millimeter (LS): 56 mm Usable Length – millimeter (LU): 52 mm Connection diameter – millimeter (DCON MS): 25 mm Flange diameter – millimeter (DF): 35 mm Adjustment limit minimum – millimeter (ADJLN): 0.45 mm Adjustment limit maximum – millimeter (ADJLX): 0.5 mm Adjustment Sleeve Code: EP253253 Net weight – grams: 346 ISO: 802D-22-44-S25

Need Technical Advice?

Description

Additional information

Brand

PRAMET
