PRAMET 802D-27-54-S32 Drills

Description

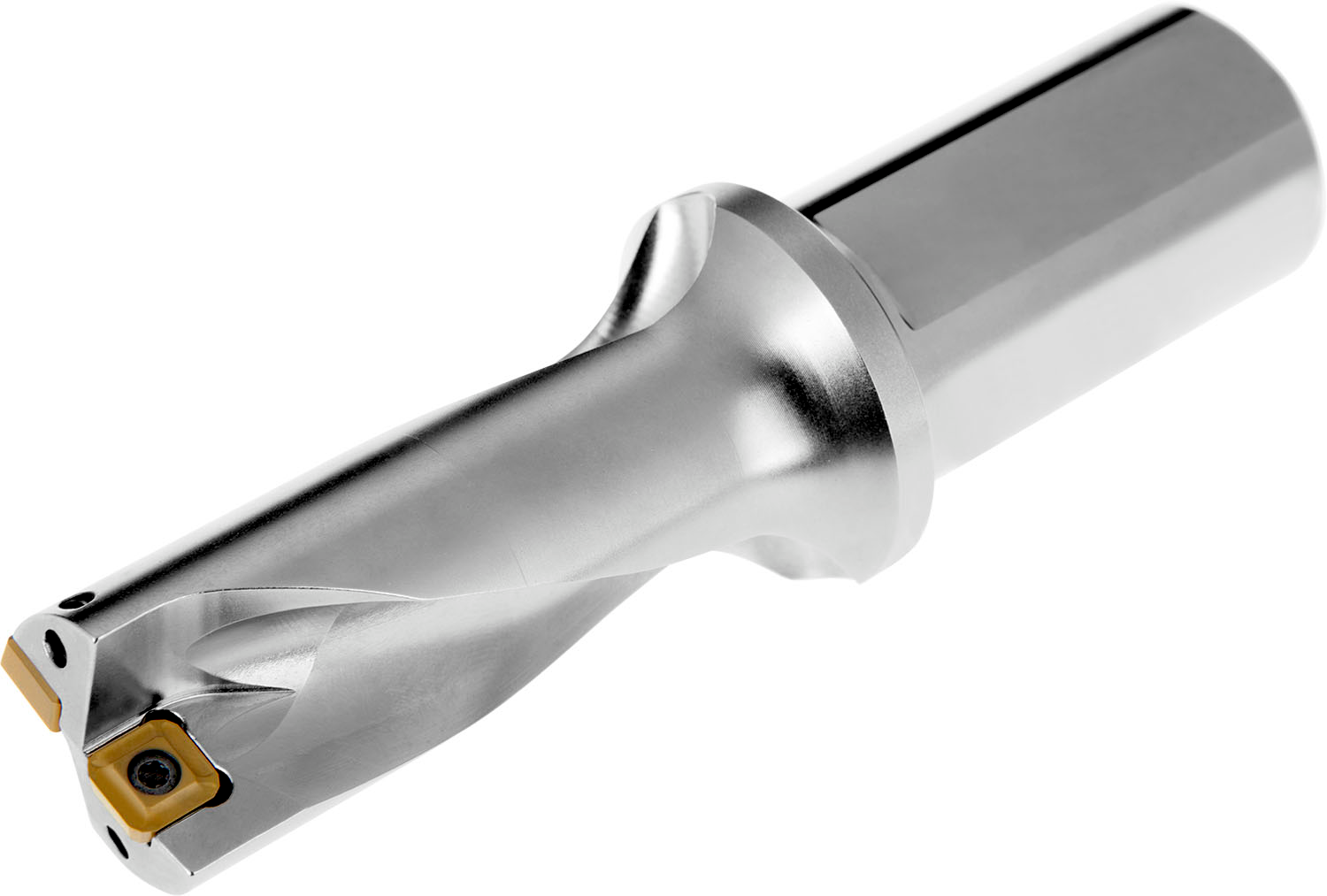

Indexable insert drill which utilises an XPET 0903.. insert in the central pocket and a SCET 0703.. insert in the peripheral pocket, cutting diameter 27mm in combination with EP324058, suited for a radial adjustment of -0.50 to +0.30mm, with a 32mm cylindrical shank with flat according to ISO 9766 and through coolant for maximum drilling depths up to 2 x D

Additional information

Weight	0.8173 kg
Dimensions
barcode
Additional Information	Description: Value EAN number: 3603603005136 Product number (SAP): 86022332 Ordering code ANSI: 802D-27-54-S32 Gross weight – grams: 591 Cutting diameter – millimeter (DC): 27 mm Depth of cut maximum – millimeter (APMX): 54 mm Overall length – millimeter (OAL): 149 mm Protruding length – millimeter (LPR): 89 mm Shank length – millimeter (LS): 60 mm Usable Length – millimeter (LU): 62 mm Connection diameter – millimeter (DCON MS): 32 mm Flange diameter – millimeter (DF): 42 mm Adjustment limit minimum – millimeter (ADJLN): 0.5 mm Adjustment limit maximum – millimeter (ADJLX): 0.3 mm Adjustment Sleeve Code: EP324058 Net weight – grams: 591 ISO: 802D-27-54-S32

Need Technical Advice?

Description

Additional information

Brand

PRAMET
