PRAMET 802D-34-68-S40 Drills

Description

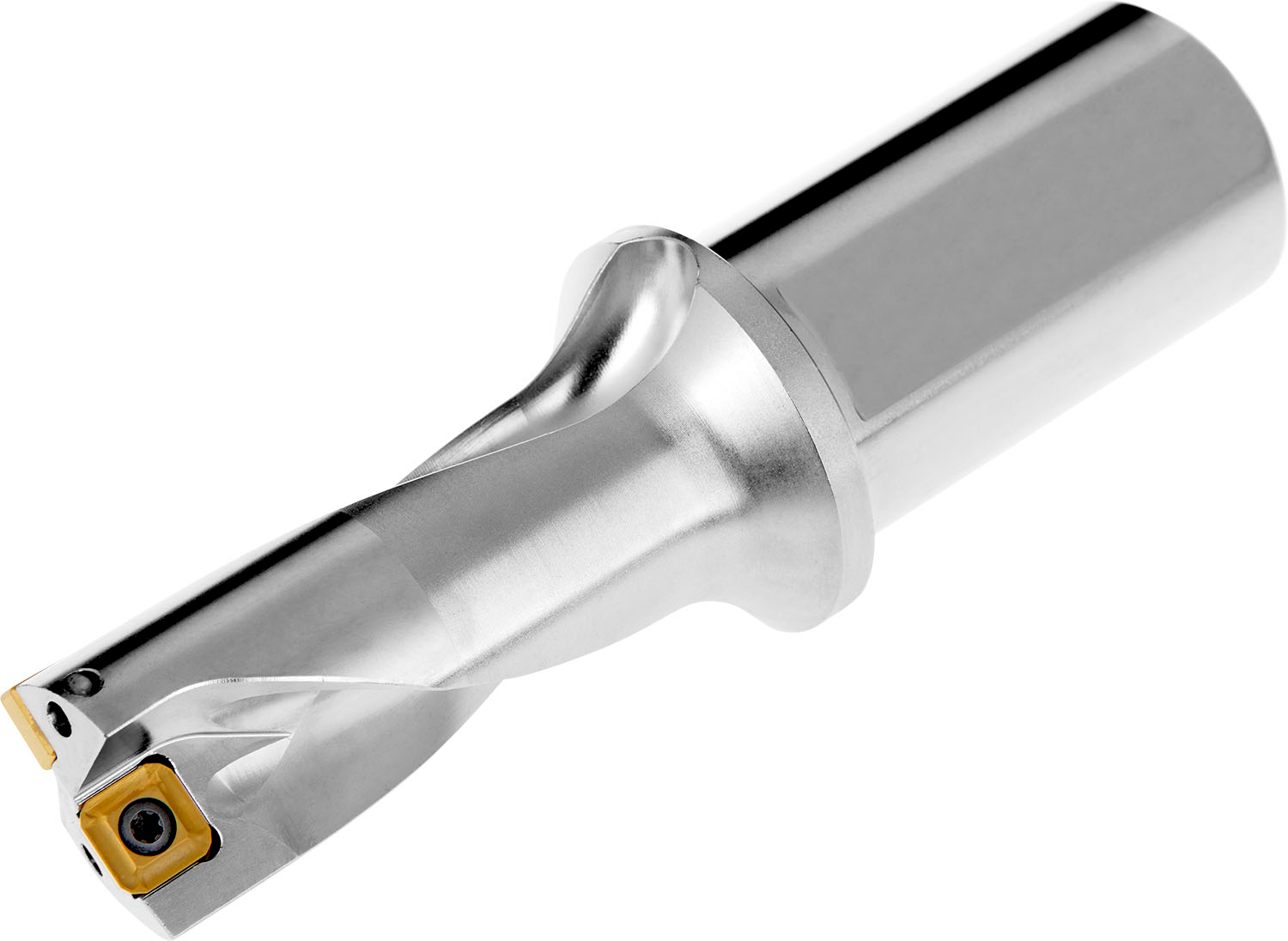

Indexable insert drill which utilises an XPET 11T3.. insert in the central pocket and a SCET 09T3.. insert in the peripheral pocket, cutting diameter 34mm, with a 40mm cylindrical shank with flat according to ISO 9766 and through coolant for maximum drilling depths up to 2 x D

Additional information

Weight	0.9317 kg
Dimensions
barcode
Additional Information	Description: Value EAN number: 3603603005204 Product number (SAP): 86022337 Ordering code ANSI: 802D-34-68-S40 Gross weight – grams: 1102 Cutting diameter – millimeter (DC): 34 mm Depth of cut maximum – millimeter (APMX): 68 mm Overall length – millimeter (OAL): 171 mm Protruding length – millimeter (LPR): 103 mm Shank length – millimeter (LS): 68 mm Usable Length – millimeter (LU): 75 mm Connection diameter – millimeter (DCON MS): 40 mm Flange diameter – millimeter (DF): 50 mm Adjustment limit minimum – millimeter (ADJLN): 0.25 mm Adjustment limit maximum – millimeter (ADJLX): 0.5 mm Net weight – grams: 1074 ISO: 802D-34-68-S40

Need Technical Advice?

Description

Additional information

Brand

PRAMET
