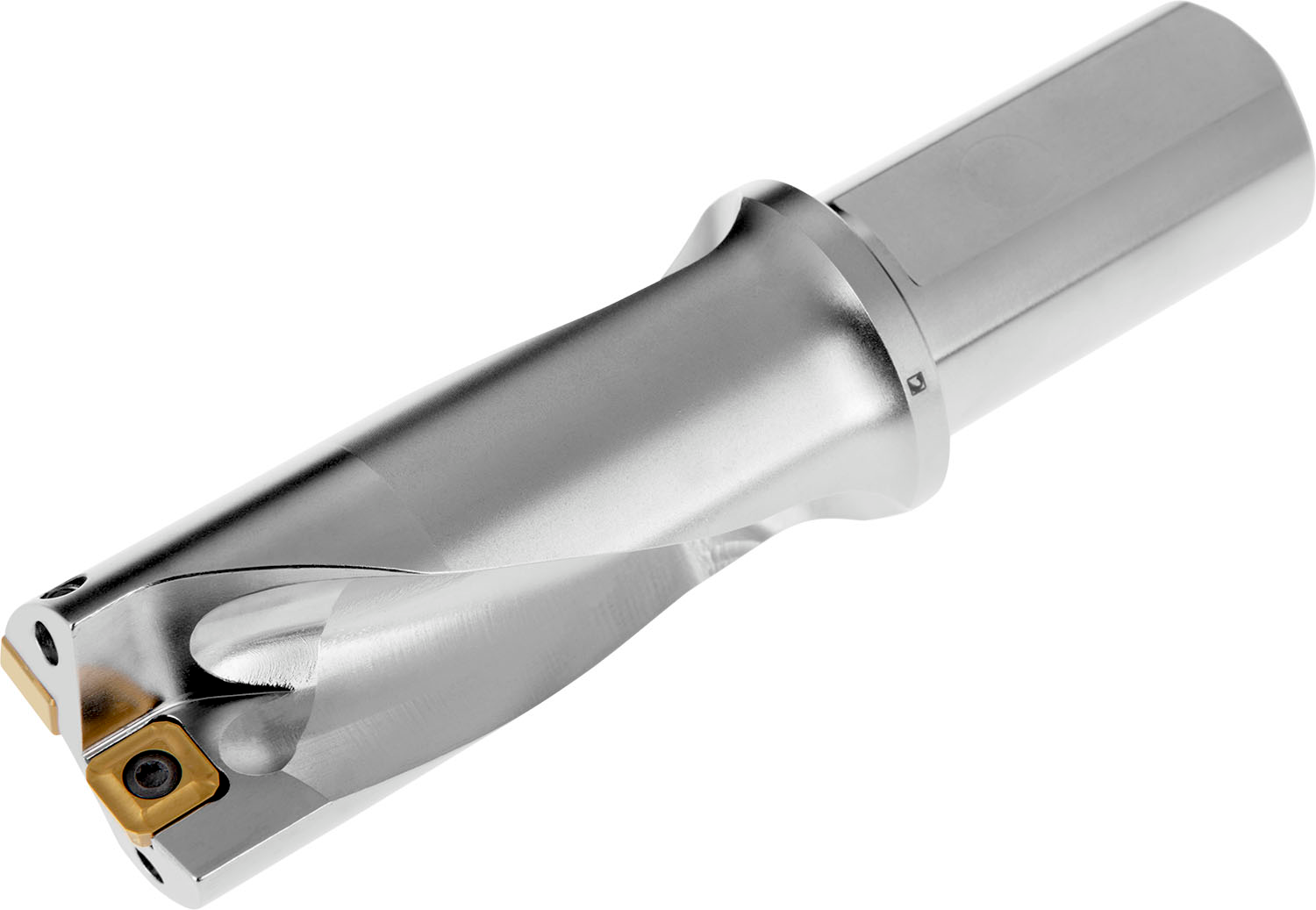

PRAMET 802D-40-80-S40 Drills

Description: Value
EAN number: 3603603005266
Product number (SAP): 86022339
Ordering code ANSI: 802D-40-80-S40
Gross weight – grams: 1296
Cutting diameter – millimeter (DC): 40 mm
Depth of cut maximum – millimeter (APMX): 80 mm
Overall length – millimeter (OAL): 183 mm
Protruding length – millimeter (LPR): 115 mm
Shank length – millimeter (LS): 68 mm
Usable Length – millimeter (LU): 90 mm
Connection diameter – millimeter (DCON MS): 40 mm
Flange diameter – millimeter (DF): 50 mm
Adjustment limit minimum – millimeter (ADJLN): 0.2 mm
Adjustment limit maximum – millimeter (ADJLX): 0.5 mm
Net weight – grams: 1251
ISO: 802D-40-80-S40
