PRAMET 803D-0827-248-S100 Drills

Product Code: 803D-0827-248-S100

$765.91$696.28 Ex. GST

Product Code: 803D-0827-248-S100 SKU 803D-0827-248-S100 Categories , ,
PRAMET 803D-0827-248-S100 Drills

Need Technical Advice?

Head over to our other technical website - millerstooling.com.au
Get advice now

Description

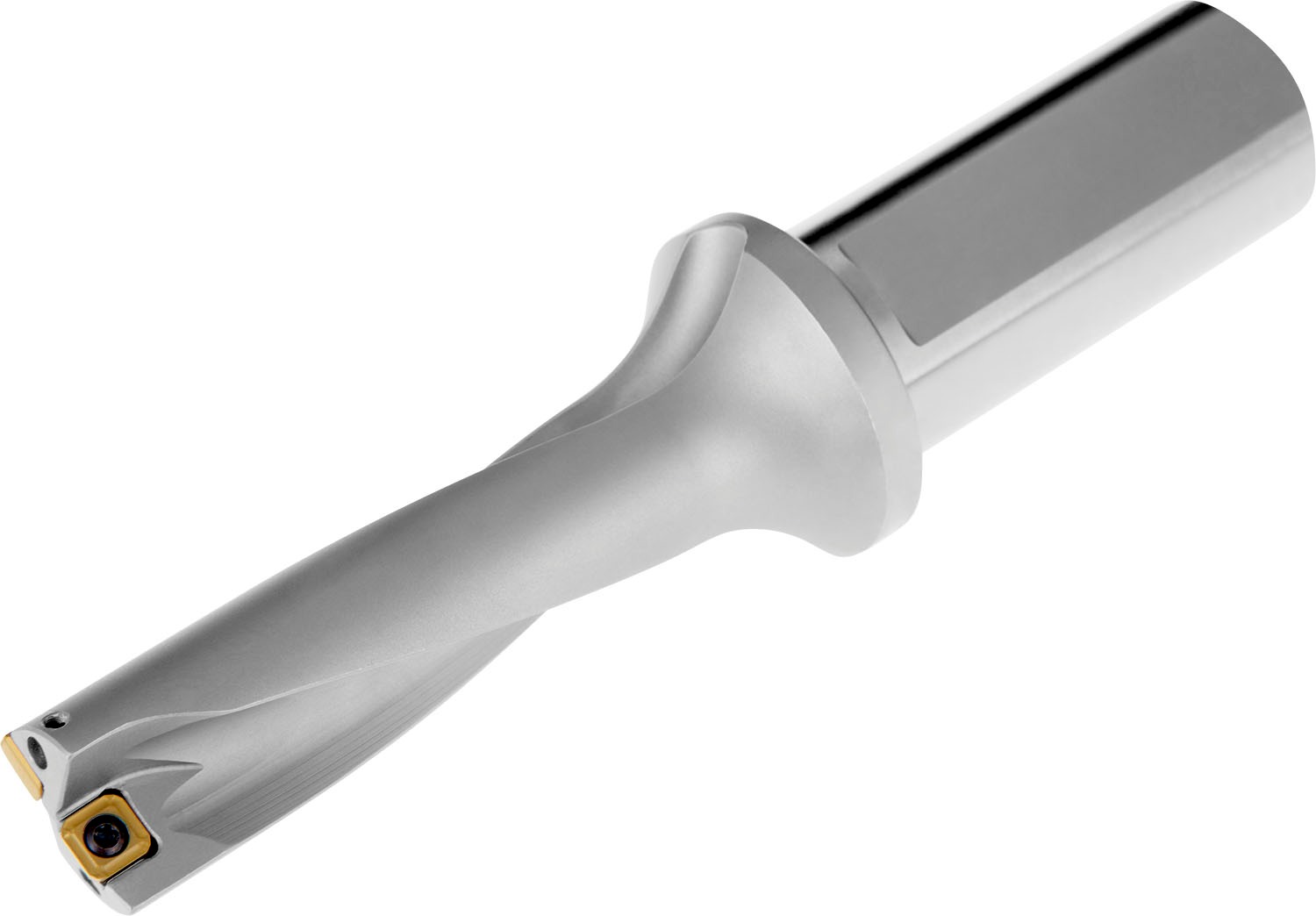

Indexable insert drill which utilises an XPET 0602.. insert in the central pocket and a SCET 0602.. insert in the peripheral pocket, cutting diameter 0.827”, with a 1.000” cylindrical shank with flat according to ISO 9766 and through coolant for maximum drilling depths up to 3 x D

Additional information

Weight 0.7436 kg
barcode
Additional Information

Description: Value
Product name: 803D-0827-248-S100
Cutting diameter – inch (DC): 0.827 inch
Depth of cut maximum – inch (APMX): 2.481 inch
Overall length – inch (OAL): 5.709 inch
Protruding length – inch (LPR): 3.465 inch
Shank length – inch (LS): 2.244 inch
Usable Length – inch (LU): 2.697 inch
Connection diameter – inch (DCON MS): 1 inch
Adjustment limit minimum – inch (ADJLN): 0.004 inch
Adjustment limit maximum – inch (ADJLX): 0.019 inch
ISO: 803D-0827-248-S100

Brand

PRAMET
