PRAMET 803D-1375-412-S150 Drills

Product Code: 803D-1375-412-S150

$1,017.43$924.94 Ex. GST

Product Code: 803D-1375-412-S150 SKU 803D-1375-412-S150 Categories , ,

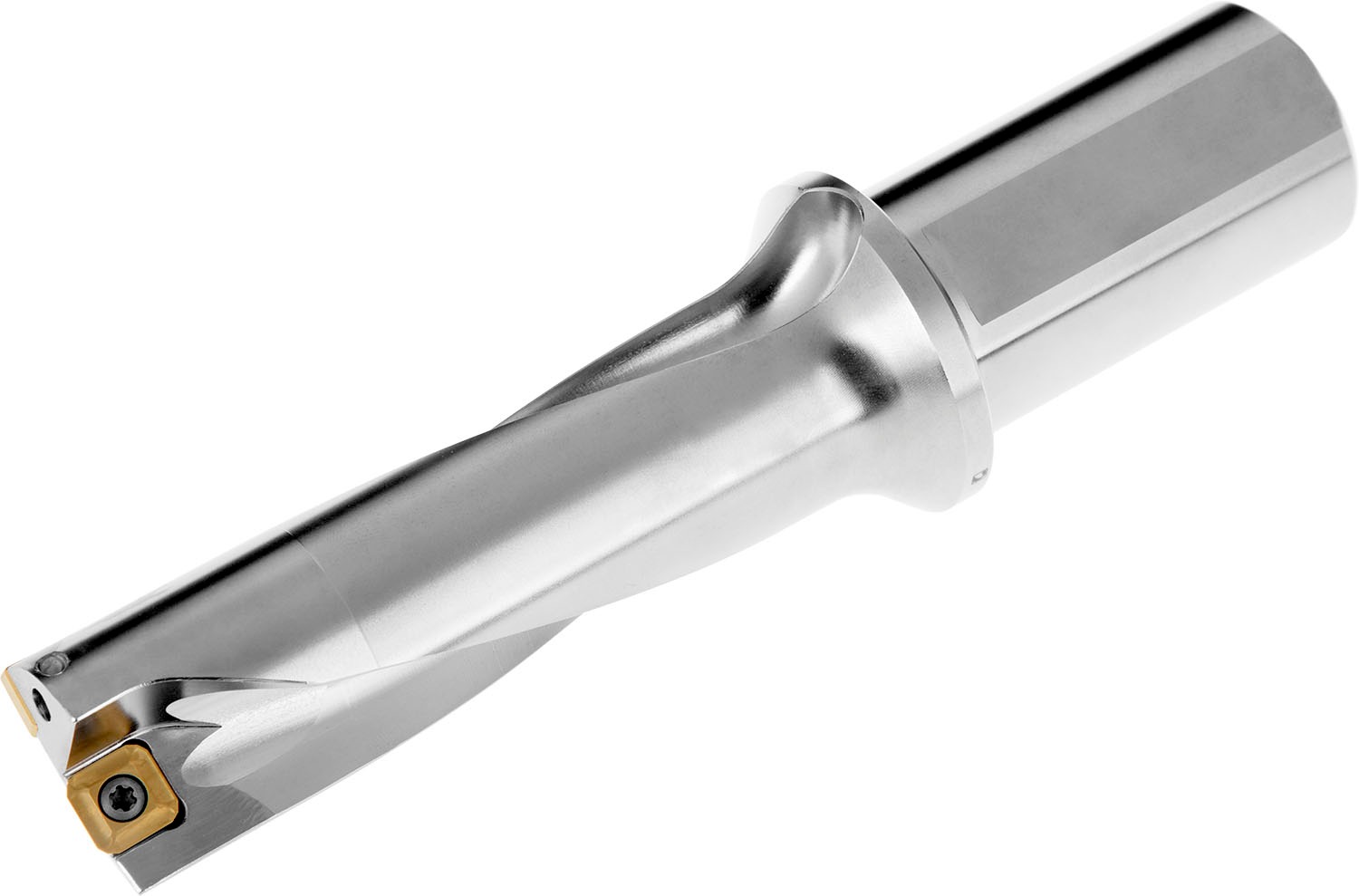

PRAMET 803D-1375-412-S150 Drills

Need Technical Advice?

Head over to our other technical website - millerstooling.com.au
Get advice now

Description

Indexable insert drill which utilises an XPET 11T3.. insert in the central pocket and a SCET 1204.. insert in the peripheral pocket, cutting diameter 1.375”, with a 1.500” cylindrical shank with flat according to ISO 9766 and through coolant for maximum drilling depths up to 3 x D

Additional information

Weight 0.9878 kg
barcode
Additional Information

Description: Value
Product name: 803D-1375-412-S150
Cutting diameter – inch (DC): 1.375 inch
Depth of cut maximum – inch (APMX): 4.125 inch
Overall length – inch (OAL): 7.748 inch
Protruding length – inch (LPR): 5.11 inch
Shank length – inch (LS): 2.638 inch
Usable Length – inch (LU): 4.319 inch
Connection diameter – inch (DCON MS): 1.5 inch
Adjustment limit minimum – inch (ADJLN): 0.008 inch
Adjustment limit maximum – inch (ADJLX): 0.02 inch
ISO: 803D-1375-412-S150

Brand

PRAMET
