PRAMET 803D-1750-525-S150 Drills

Product Code: 803D-1750-525-S150

$1,065.02$968.20 Ex. GST

Product Code: 803D-1750-525-S150 SKU 803D-1750-525-S150 Categories , ,

Need Technical Advice?

Head over to our other technical website - millerstooling.com.au

Description

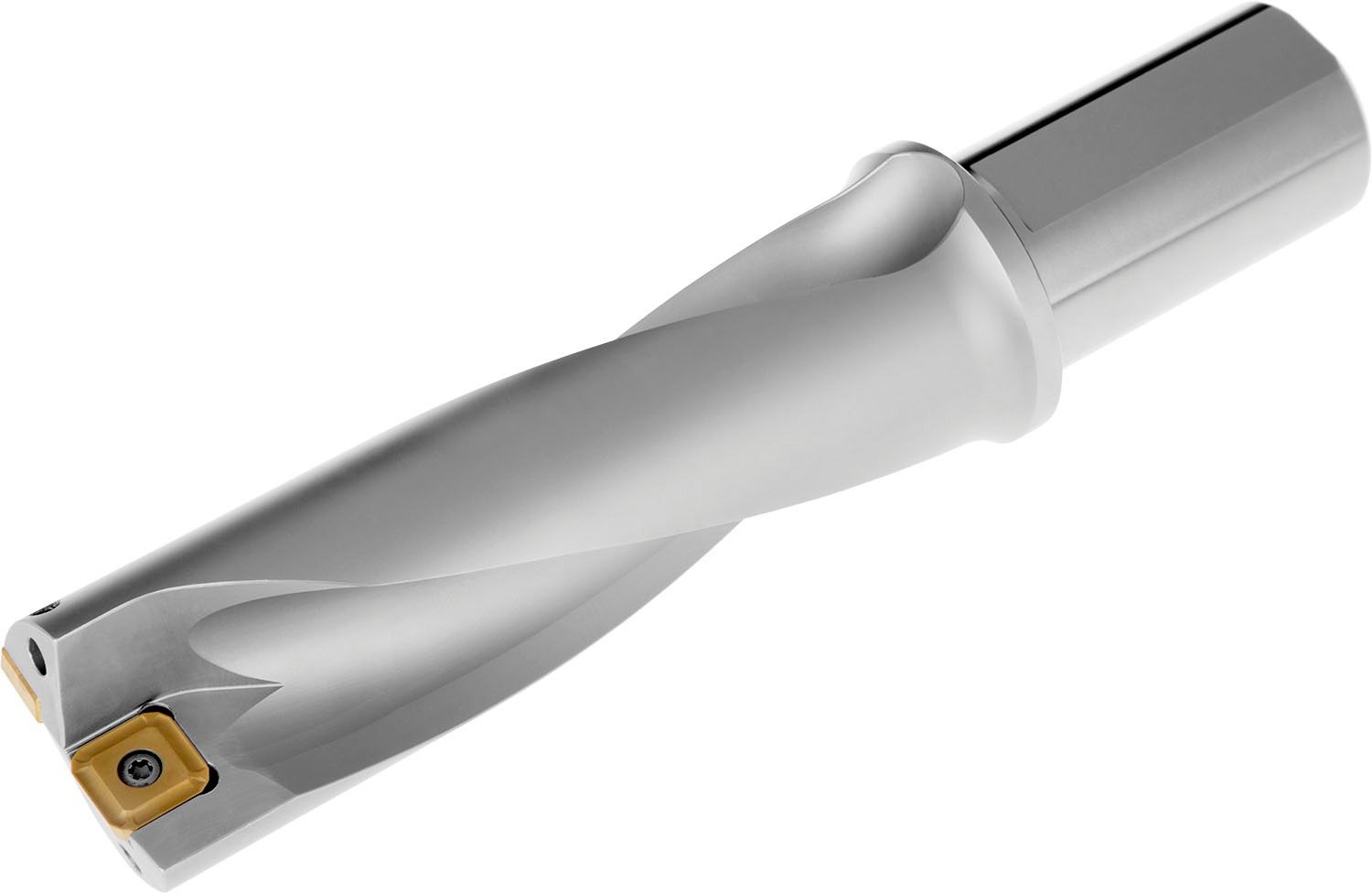

Indexable insert drill which utilises an XPET 12T3.. insert in the central pocket and a SCET 1204.. insert in the peripheral pocket, cutting diameter 1.750”, with a 1.500” cylindrical shank with flat according to ISO 9766 and through coolant for maximum drilling depths up to 3 x D

Additional information

Weight 1.034 kg
barcode
Additional Information

Description: Value
Product name: 803D-1750-525-S150
Cutting diameter – inch (DC): 1.75 inch
Depth of cut maximum – inch (APMX): 5.25 inch
Overall length – inch (OAL): 8.843 inch
Protruding length – inch (LPR): 6.205 inch
Shank length – inch (LS): 2.638 inch
Usable Length – inch (LU): 5.642 inch
Connection diameter – inch (DCON MS): 1.5 inch
Adjustment limit minimum – inch (ADJLN): 0.02 inch
Adjustment limit maximum – inch (ADJLX): 0.02 inch
ISO: 803D-1750-525-S150

Brand

PRAMET
