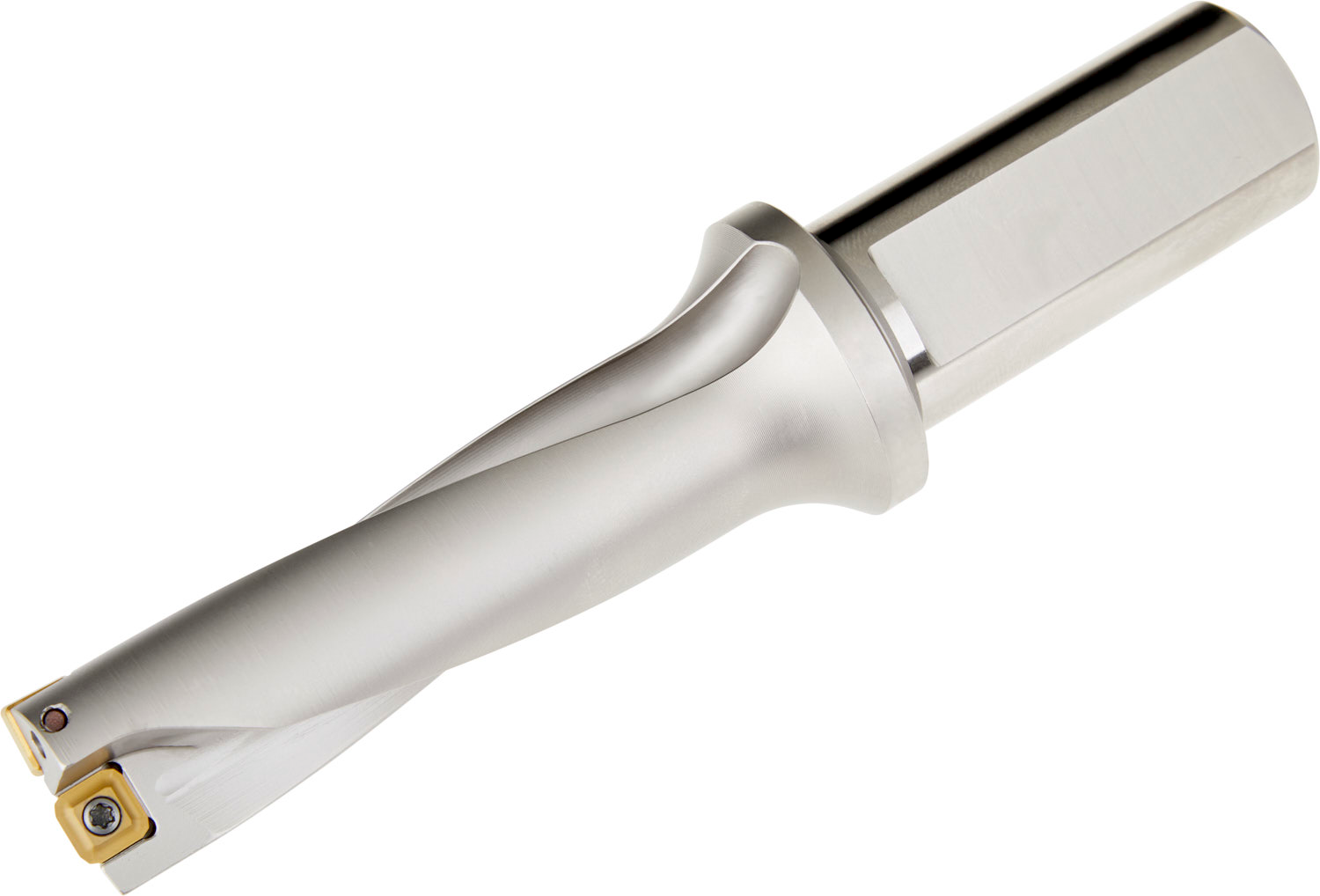

PRAMET 803D-21-63-S25 Drills

Description

Indexable insert drill which utilises an XPET 0602.. insert in the central pocket and a SCET 0602.. insert in the peripheral pocket, cutting diameter 21mm in combination with EP253253, suited for a radial adjustment of -0.10 to +0.50mm, with a 25mm cylindrical shank with flat according to ISO 9766 and through coolant for maximum drilling depths up to 3 x D

Additional information

Weight	0.7436 kg
Dimensions
barcode
Additional Information	Description: Value EAN number: 3603603005402 Product number (SAP): 86022358 Ordering code ANSI: 803D-21-63-S25 Gross weight – grams: 384 Cutting diameter – millimeter (DC): 21 mm Depth of cut maximum – millimeter (APMX): 63 mm Overall length – millimeter (OAL): 154 mm Protruding length – millimeter (LPR): 98 mm Shank length – millimeter (LS): 56 mm Usable Length – millimeter (LU): 70.5 mm Connection diameter – millimeter (DCON MS): 25 mm Flange diameter – millimeter (DF): 35 mm Adjustment limit minimum – millimeter (ADJLN): 0.1 mm Adjustment limit maximum – millimeter (ADJLX): 0.5 mm Adjustment Sleeve Code: EP253253 Net weight – grams: 360 ISO: 803D-21-63-S25

Need Technical Advice?

Description

Additional information

Brand

PRAMET
