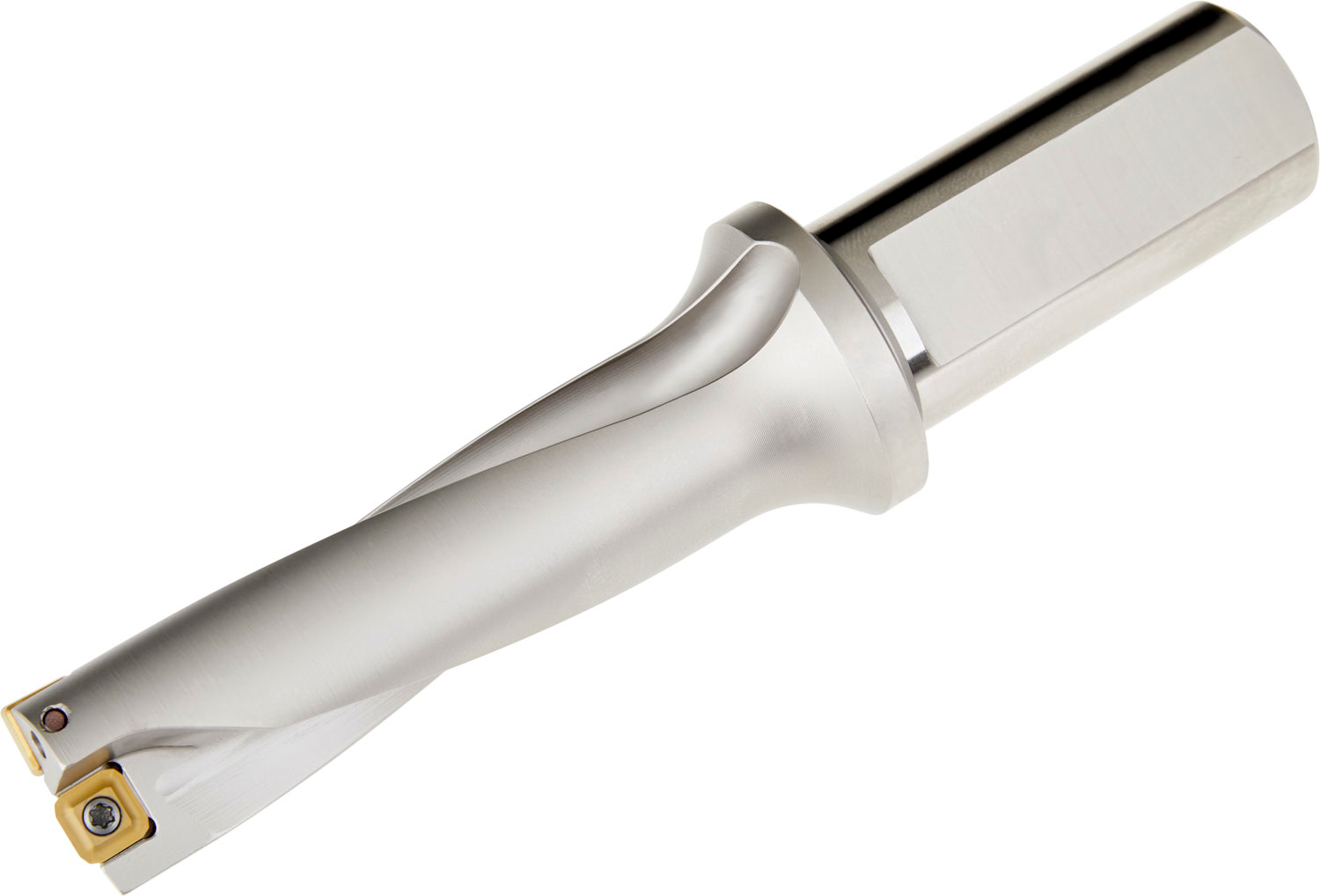

PRAMET 803D-25,5-76,5-S32 Drills

Description: Value
EAN number: 3603603005471
Product number (SAP): 86022350
Ordering code ANSI: 803D-25
5-76
5-S32
Gross weight – grams: 662.4
Cutting diameter – millimeter (DC): 25.5 mm
Depth of cut maximum – millimeter (APMX): 77 mm
Overall length – millimeter (OAL): 171.5 mm
Protruding length – millimeter (LPR): 111.5 mm
Shank length – millimeter (LS): 60 mm
Usable Length – millimeter (LU): 82.2 mm
Connection diameter – millimeter (DCON MS): 32 mm
Flange diameter – millimeter (DF): 42 mm
Adjustment limit minimum – millimeter (ADJLN): 0.5 mm
Adjustment limit maximum – millimeter (ADJLX): 0.1 mm
Adjustment Sleeve Code: EP324058
Net weight – grams: 630
ISO: 803D-25
5-76
5-S32
