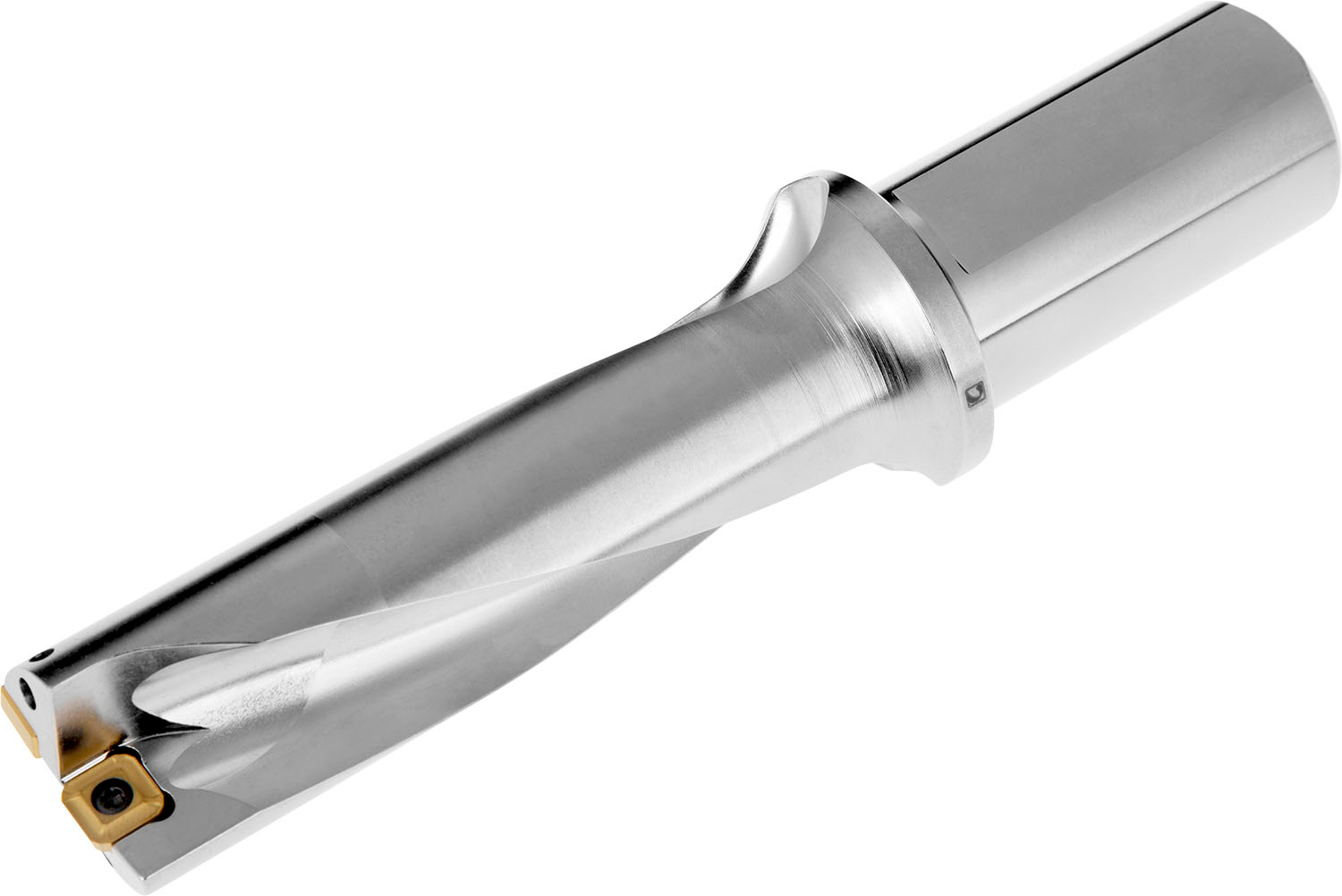

PRAMET 803D-30-90-S32 Drills

Description

Indexable insert drill which utilises an XPET 0903.. insert in the central pocket and a SCET 09T3.. insert in the peripheral pocket, cutting diameter 30mm in combination with EP324058, suited for a radial adjustment of -0.15 to +0.50mm, with a 32mm cylindrical shank with flat according to ISO 9766 and through coolant for maximum drilling depths up to 3 x D

Additional information

Weight	0.8954 kg
Dimensions
barcode
Additional Information	Description: Value EAN number: 3603603005549 Product number (SAP): 86022367 Ordering code ANSI: 803D-30-90-S32 Gross weight – grams: 767 Cutting diameter – millimeter (DC): 30 mm Depth of cut maximum – millimeter (APMX): 90 mm Overall length – millimeter (OAL): 185 mm Protruding length – millimeter (LPR): 125 mm Shank length – millimeter (LS): 60 mm Usable Length – millimeter (LU): 99.5 mm Connection diameter – millimeter (DCON MS): 32 mm Flange diameter – millimeter (DF): 42 mm Adjustment limit minimum – millimeter (ADJLN): 0.15 mm Adjustment limit maximum – millimeter (ADJLX): 0.5 mm Adjustment Sleeve Code: EP324058 Net weight – grams: 730 ISO: 803D-30-90-S32

Need Technical Advice?

Description

Additional information

Brand

PRAMET
