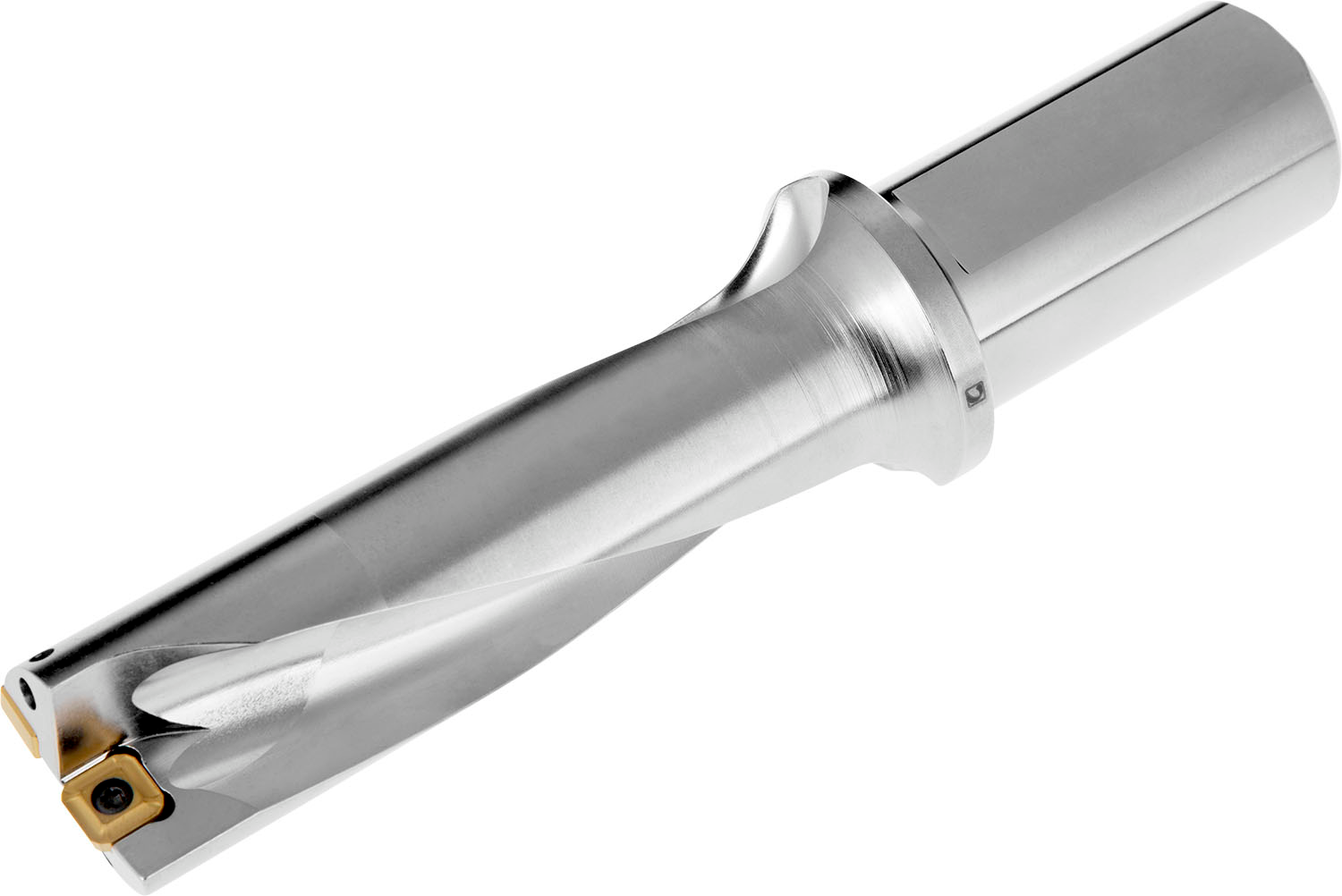

PRAMET 803D-34-102-S40 Drills

Description: Value
EAN number: 3603603005617
Product number (SAP): 86022371
Ordering code ANSI: 803D-34-102-S40
Gross weight – grams: 1266.2
Cutting diameter – millimeter (DC): 34 mm
Depth of cut maximum – millimeter (APMX): 102 mm
Overall length – millimeter (OAL): 205 mm
Protruding length – millimeter (LPR): 137 mm
Shank length – millimeter (LS): 68 mm
Usable Length – millimeter (LU): 109 mm
Connection diameter – millimeter (DCON MS): 40 mm
Flange diameter – millimeter (DF): 50 mm
Adjustment limit minimum – millimeter (ADJLN): 0.25 mm
Adjustment limit maximum – millimeter (ADJLX): 0.5 mm
Net weight – grams: 1120
ISO: 803D-34-102-S40
