PRAMET 803D-36-108-S40 Drills

Product Code: 803D-36-108-S40

$1,017.43$924.94 Ex. GST

Product Code: 803D-36-108-S40 SKU 803D-36-108-S40 Categories , ,
PRAMET 803D-36-108-S40 Drills

Need Technical Advice?

Head over to our other technical website - millerstooling.com.au
Get advice now

Description

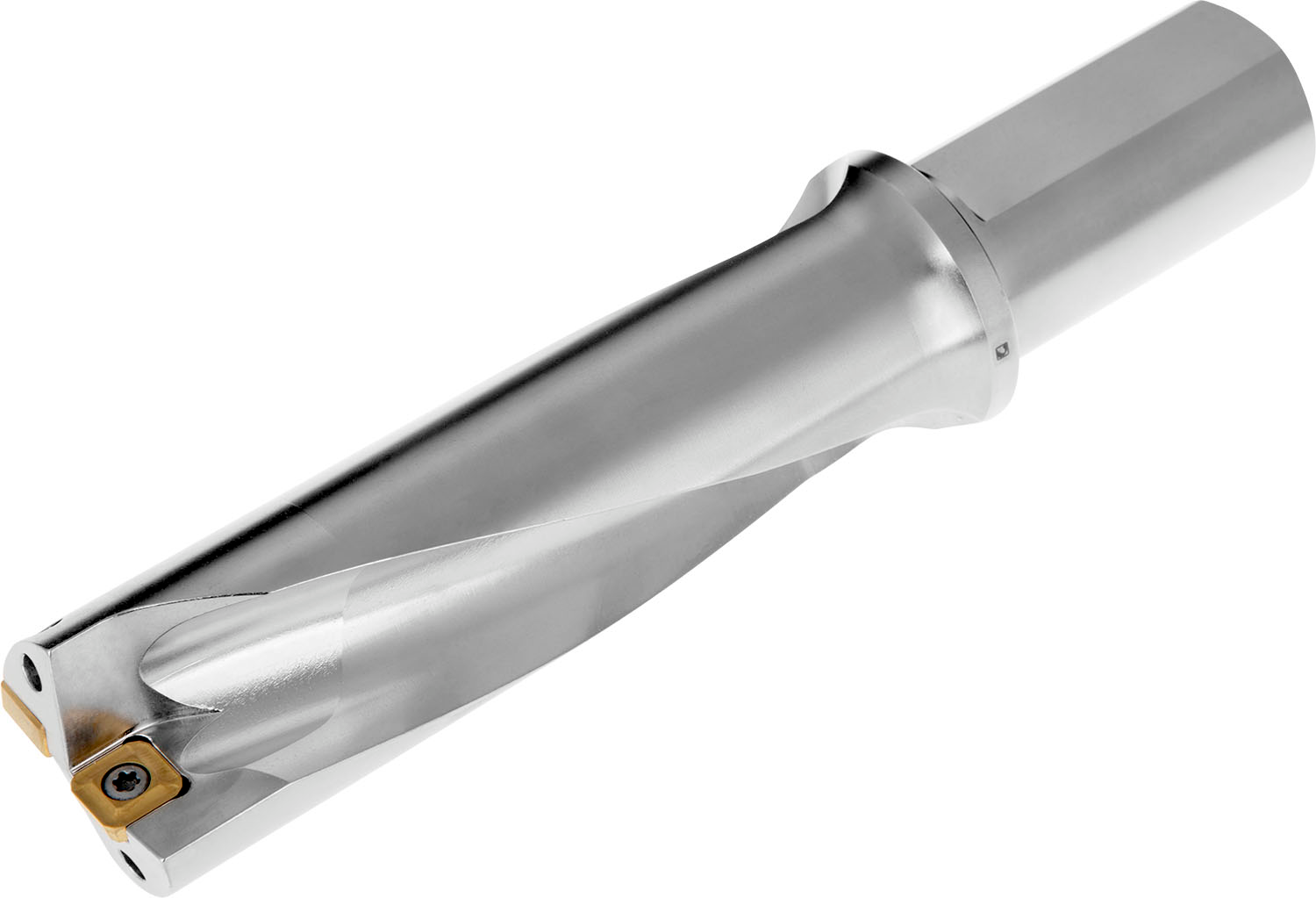

Indexable insert drill which utilises an XPET 11T3.. insert in the central pocket and a SCET 1204.. insert in the peripheral pocket, cutting diameter 36mm, with a 40mm cylindrical shank with flat according to ISO 9766 and through coolant for maximum drilling depths up to 3 x D

Additional information

Weight 0.9878 kg
Dimensions
barcode
Additional Information

Description: Value
EAN number: 3603603005655
Product number (SAP): 86022373
Ordering code ANSI: 803D-36-108-S40
Gross weight – grams: 1321.1
Cutting diameter – millimeter (DC): 36 mm
Depth of cut maximum – millimeter (APMX): 108 mm
Overall length – millimeter (OAL): 211 mm
Protruding length – millimeter (LPR): 143 mm
Shank length – millimeter (LS): 68 mm
Usable Length – millimeter (LU): 116 mm
Connection diameter – millimeter (DCON MS): 40 mm
Flange diameter – millimeter (DF): 50 mm
Adjustment limit minimum – millimeter (ADJLN): 0.1 mm
Adjustment limit maximum – millimeter (ADJLX): 0.5 mm
Net weight – grams: 1250
ISO: 803D-36-108-S40

Brand

PRAMET
