PRAMET 803D-39-117-S32 Drills

Description

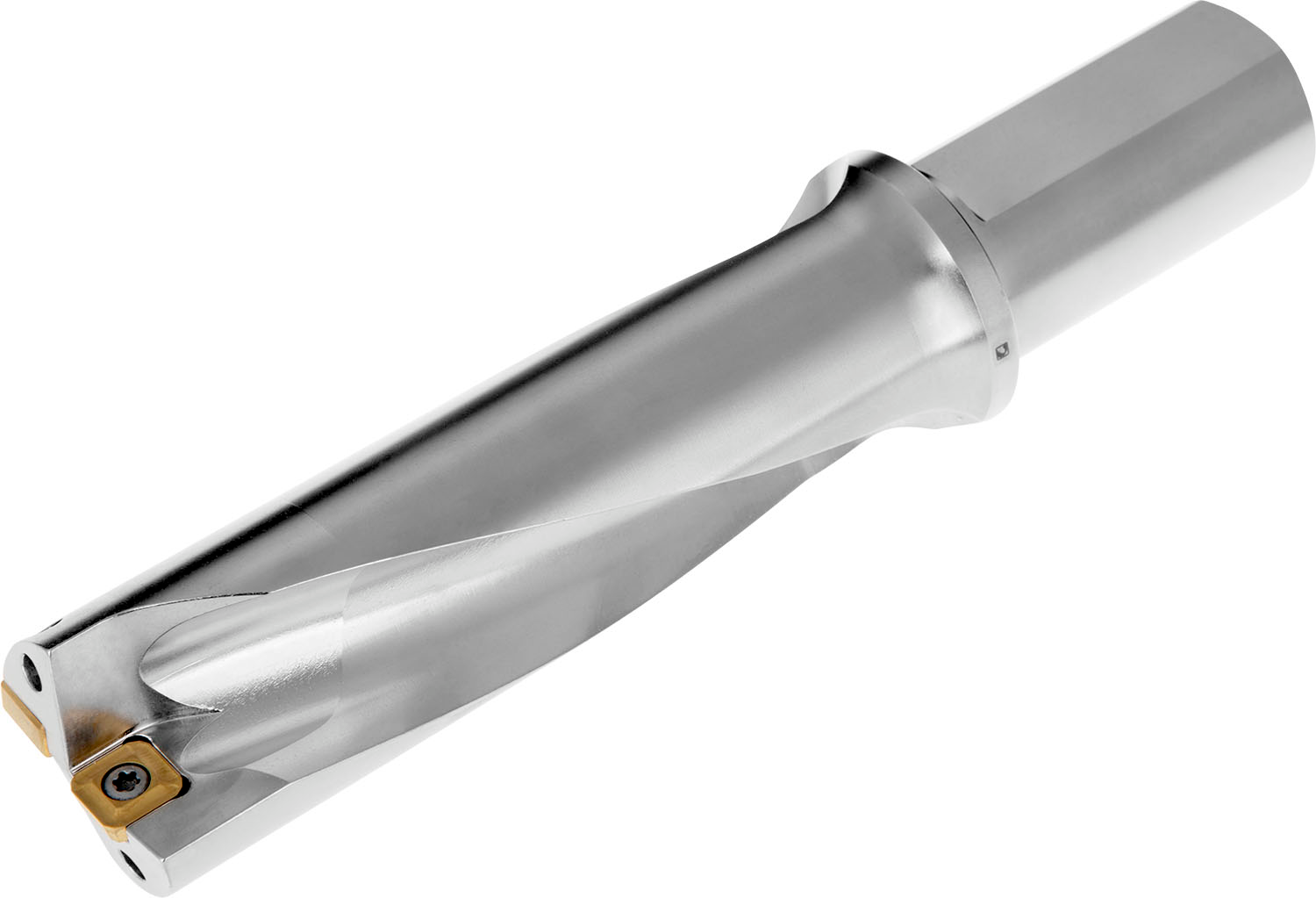

Indexable insert drill which utilises an XPET 12T3.. insert in the central pocket and a SCET 1204.. insert in the peripheral pocket, cutting diameter 38mm in combination with EP324058, suited for a radial adjustment of -0.40 to +0.50mm, with a 32mm cylindrical shank with flat according to ISO 9766 and through coolant for maximum drilling depths up to 3 x D

Additional information

Weight	1.0175 kg
Dimensions
barcode
Additional Information	Description: Value EAN number: 3603603005709 Product number (SAP): 86022385 Ordering code ANSI: 803D-39-117-S32 Gross weight – grams: 1090.2 Cutting diameter – millimeter (DC): 39 mm Depth of cut maximum – millimeter (APMX): 114 mm Overall length – millimeter (OAL): 209 mm Protruding length – millimeter (LPR): 149 mm Shank length – millimeter (LS): 60 mm Usable Length – millimeter (LU): 123 mm Connection diameter – millimeter (DCON MS): 32 mm Flange diameter – millimeter (DF): 42 mm Adjustment limit minimum – millimeter (ADJLN): 0.4 mm Adjustment limit maximum – millimeter (ADJLX): 0.5 mm Adjustment Sleeve Code: EP324058 Net weight – grams: 1060 ISO: 803D-39-117-S32

Need Technical Advice?

Description

Additional information

Brand

PRAMET
