PRAMET 803D-51-153-S40 Drills

Product Code: 803D-51-153-S40

$1,087.68$988.80 Ex. GST

Product Code: 803D-51-153-S40 SKU 803D-51-153-S40 Categories , ,
PRAMET 803D-51-153-S40 Drills

Need Technical Advice?

Head over to our other technical website - millerstooling.com.au
Get advice now

Description

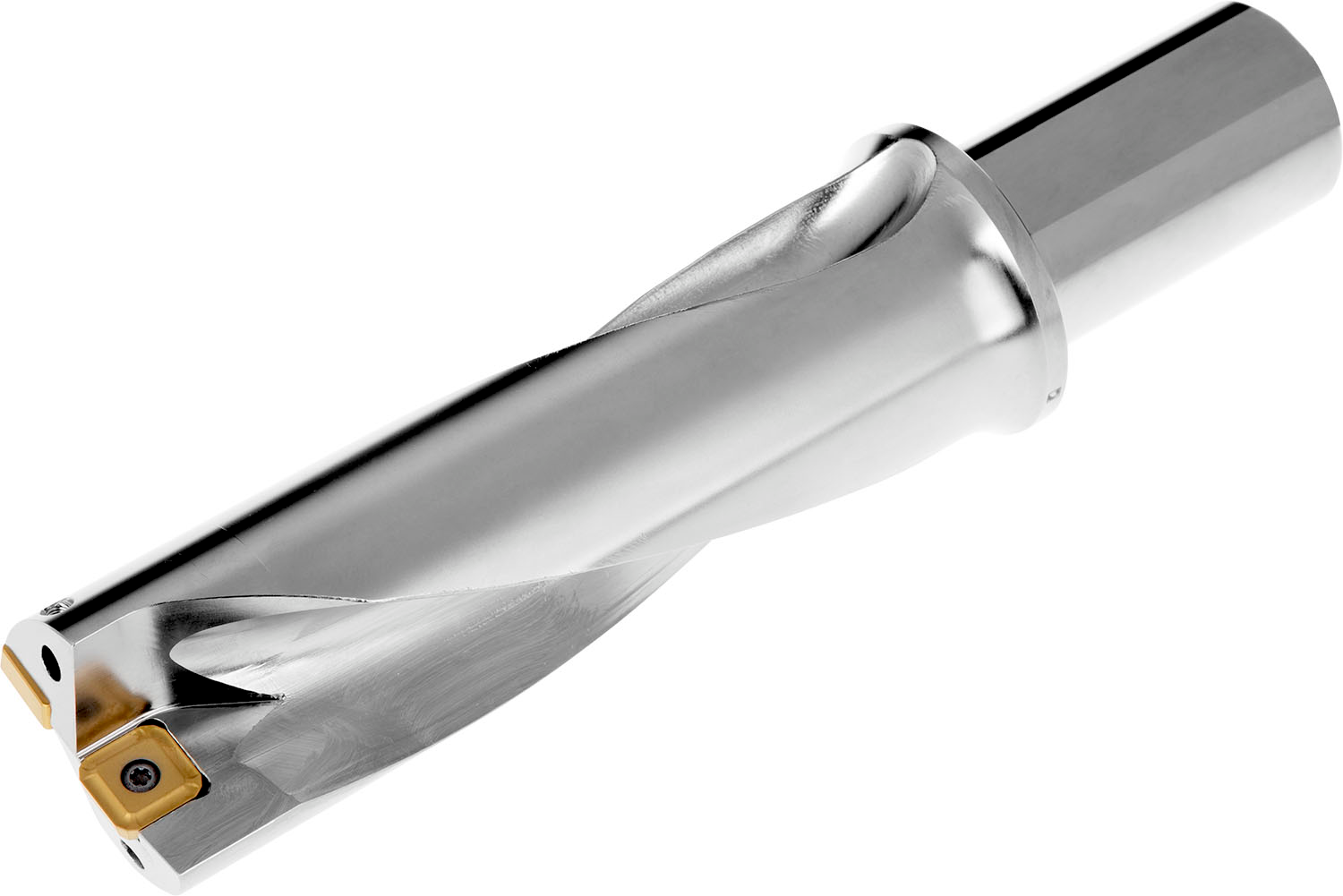

Indexable insert drill which utilises an XPET 1504.. insert in the central pocket and a SCET 1505.. insert in the peripheral pocket, cutting diameter 51mm, with a 40mm cylindrical shank with flat according to ISO 9766 and through coolant for maximum drilling depths up to 3 x D

Additional information

Weight 1.0560 kg
Dimensions
barcode
Additional Information

Description: Value
EAN number: 3603602943286
Product number (SAP): 84006905
Ordering code ANSI: 803D-51-153-S40
Gross weight – grams: 2295.7
Cutting diameter – millimeter (DC): 51 mm
Depth of cut maximum – millimeter (APMX): 153 mm
Overall length – millimeter (OAL): 249 mm
Protruding length – millimeter (LPR): 179 mm
Shank length – millimeter (LS): 70 mm
Usable Length – millimeter (LU): 163 mm
Connection diameter – millimeter (DCON MS): 40 mm
Flange diameter – millimeter (DF): 58 mm
Adjustment limit minimum – millimeter (ADJLN): 0.15 mm
Adjustment limit maximum – millimeter (ADJLX): 0.5 mm
Net weight – grams: 2240
ISO: 803D-51-153-S40

Brand

PRAMET
