PRAMET 803D-56-168-S40 Drills

Description

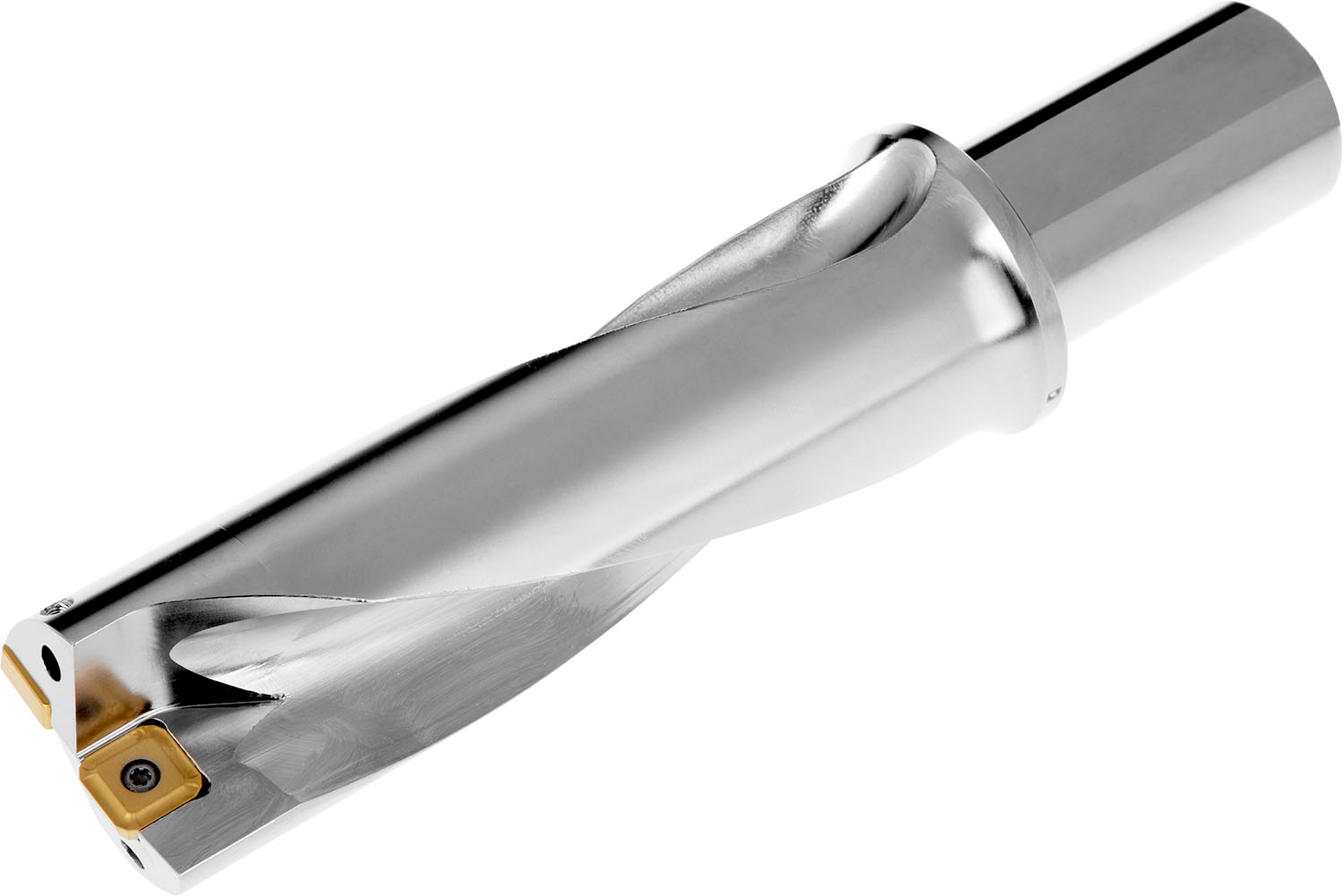

Indexable insert drill which utilises an XPET 1904.. insert in the central pocket and a SCET 1505.. insert in the peripheral pocket, cutting diameter 56mm, with a 40mm cylindrical shank with flat according to ISO 9766 and through coolant for maximum drilling depths up to 3 x D

Additional information

Weight	1.2430 kg
Dimensions
barcode
Additional Information	Description: Value EAN number: 3603602943330 Product number (SAP): 84006910 Ordering code ANSI: 803D-56-168-S40 Gross weight – grams: 2590 Cutting diameter – millimeter (DC): 56 mm Depth of cut maximum – millimeter (APMX): 168 mm Overall length – millimeter (OAL): 264 mm Protruding length – millimeter (LPR): 194 mm Shank length – millimeter (LS): 70 mm Usable Length – millimeter (LU): 179 mm Connection diameter – millimeter (DCON MS): 40 mm Flange diameter – millimeter (DF): 58 mm Adjustment limit minimum – millimeter (ADJLN): 0.5 mm Adjustment limit maximum – millimeter (ADJLX): 0.5 mm Net weight – grams: 2590 ISO: 803D-56-168-S40

Need Technical Advice?

Description

Additional information

Brand

PRAMET
