PRAMET 804D-0787-314-S100 Drills

Description

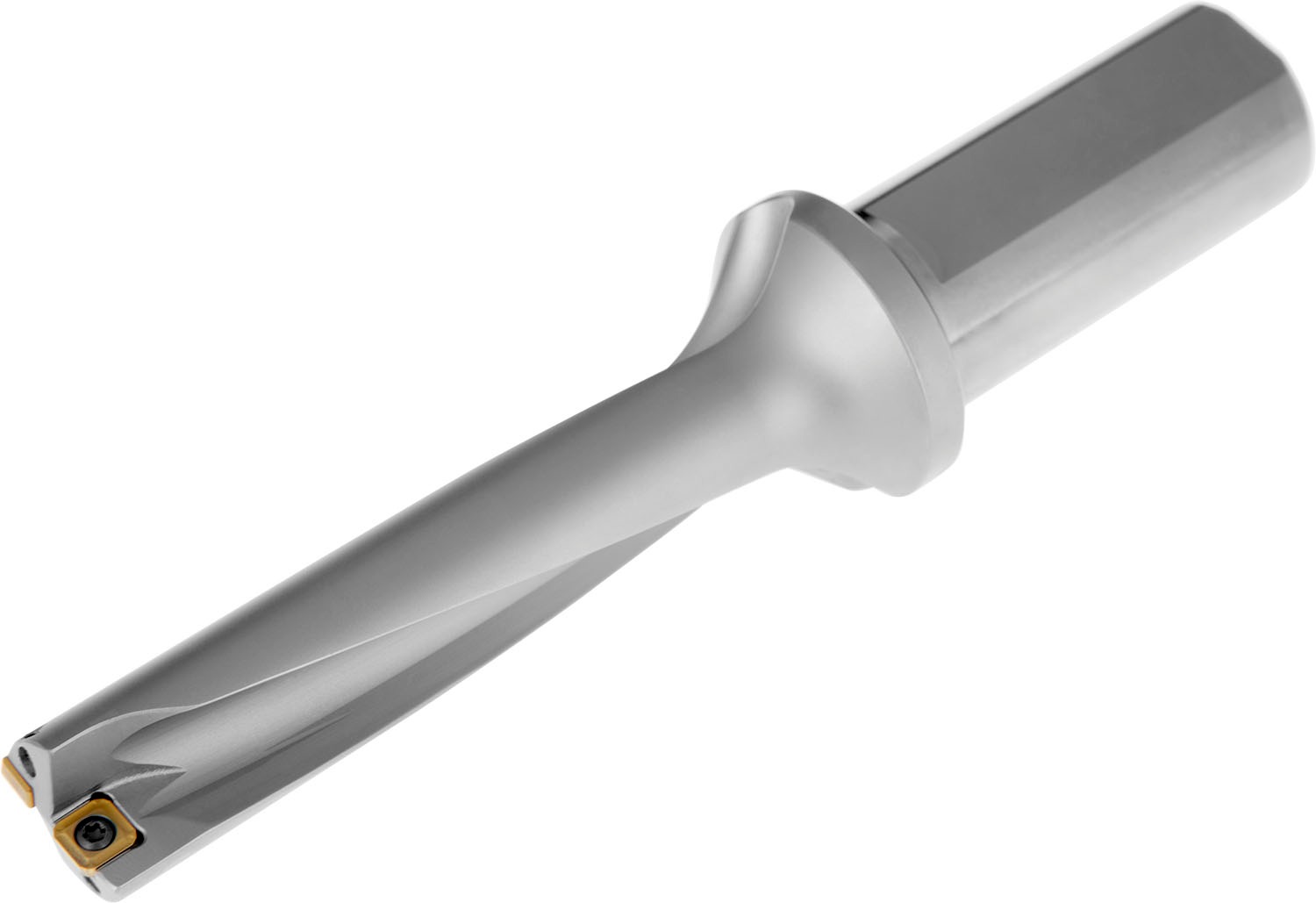

Indexable insert drill which utilises an XPET 0602.. insert in the central pocket and a SCET 0602.. insert in the peripheral pocket, cutting diameter 0.787”, with a 1.000” cylindrical shank with flat according to ISO 9766 and through coolant for maximum drilling depths up to 4 x D

Additional information

Weight	0.8173 kg
barcode
Additional Information	Description: Value Product name: 804D-0787-314-S100 Cutting diameter – inch (DC): 0.787 inch Depth of cut maximum – inch (APMX): 3.148 inch Overall length – inch (OAL): 6.378 inch Protruding length – inch (LPR): 4.134 inch Shank length – inch (LS): 2.244 inch Usable Length – inch (LU): 3.346 inch Connection diameter – inch (DCON MS): 1 inch Adjustment limit minimum – inch (ADJLN): 0.008 inch Adjustment limit maximum – inch (ADJLX): 0.02 inch ISO: 804D-0787-314-S100

Need Technical Advice?

Description

Additional information

Brand

PRAMET
