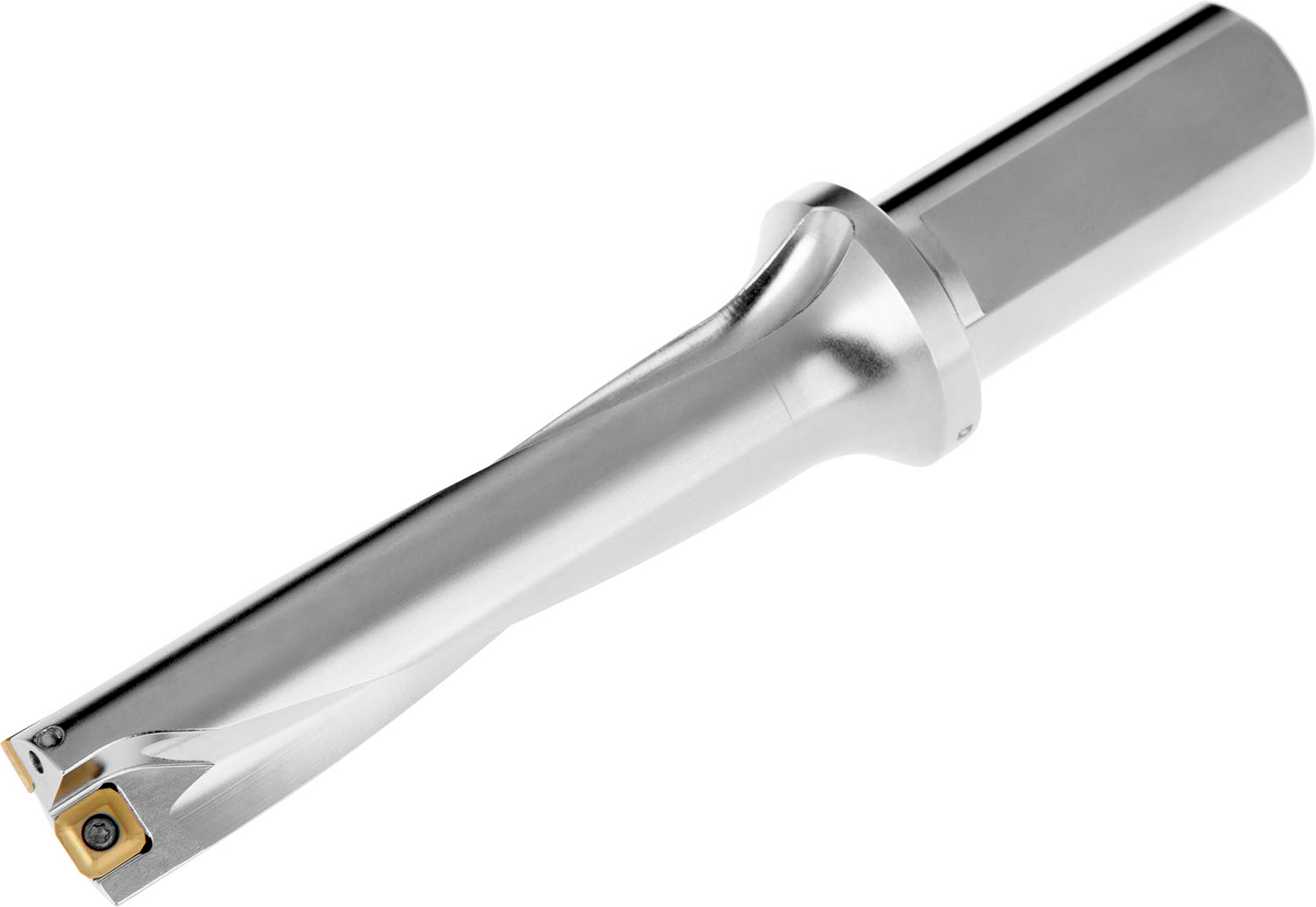

PRAMET 804D-20-80-S25 Drills

Description: Value
EAN number: 3603602943163
Product number (SAP): 84006877
Ordering code ANSI: 804D-20-80-S25
Gross weight – grams: 410.1
Cutting diameter – millimeter (DC): 20 mm
Depth of cut maximum – millimeter (APMX): 80 mm
Overall length – millimeter (OAL): 161 mm
Protruding length – millimeter (LPR): 105 mm
Shank length – millimeter (LS): 56 mm
Usable Length – millimeter (LU): 85 mm
Connection diameter – millimeter (DCON MS): 25 mm
Flange diameter – millimeter (DF): 35 mm
Adjustment limit minimum – millimeter (ADJLN): 0.1 mm
Adjustment limit maximum – millimeter (ADJLX): 0.45 mm
Net weight – grams: 370
ISO: 804D-20-80-S25
