PRAMET 804D-23-92-S25 Drills

Product Code: 804D-23-92-S25

$873.54$794.13 Ex. GST

Product Code: 804D-23-92-S25 SKU 804D-23-92-S25 Categories , ,
PRAMET 804D-23-92-S25 Drills

Need Technical Advice?

Head over to our other technical website - millerstooling.com.au
Get advice now

Description

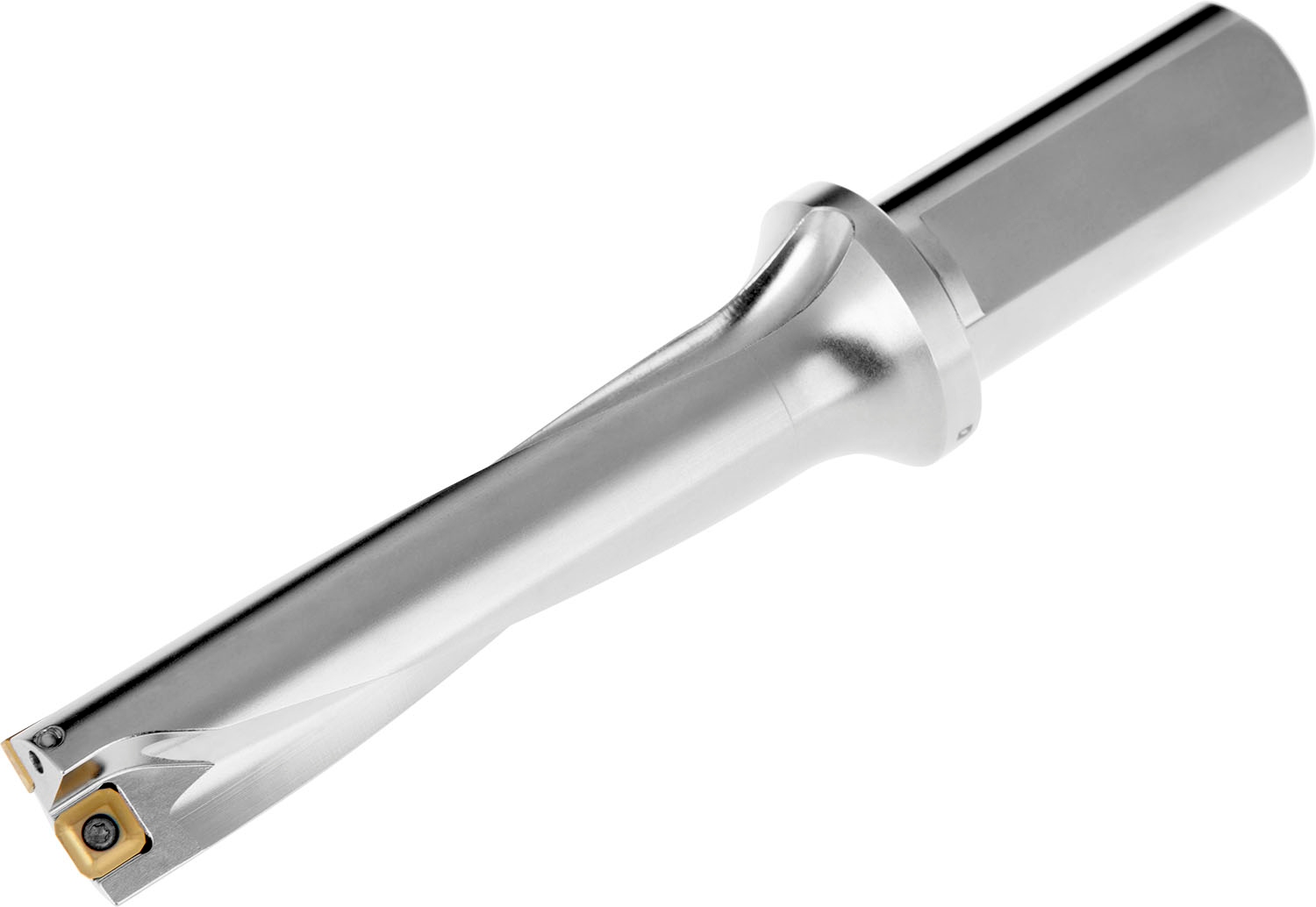

Indexable insert drill which utilises an XPET 0703.. insert in the central pocket and a SCET 0703.. insert in the peripheral pocket, cutting diameter 23mm, with a 25mm cylindrical shank with flat according to ISO 9766 and through coolant for maximum drilling depths up to 4 x D

Additional information

Weight 0.8481 kg
Dimensions
barcode
Additional Information

Description: Value
EAN number: 3603602943408
Product number (SAP): 84006918
Ordering code ANSI: 804D-23-92-S25
Gross weight – grams: 474
Cutting diameter – millimeter (DC): 23 mm
Depth of cut maximum – millimeter (APMX): 92 mm
Overall length – millimeter (OAL): 173 mm
Protruding length – millimeter (LPR): 117 mm
Shank length – millimeter (LS): 56 mm
Usable Length – millimeter (LU): 98.5 mm
Connection diameter – millimeter (DCON MS): 25 mm
Flange diameter – millimeter (DF): 35 mm
Adjustment limit minimum – millimeter (ADJLN): 0.35 mm
Adjustment limit maximum – millimeter (ADJLX): 0.5 mm
Net weight – grams: 440
ISO: 804D-23-92-S25

Brand

PRAMET
