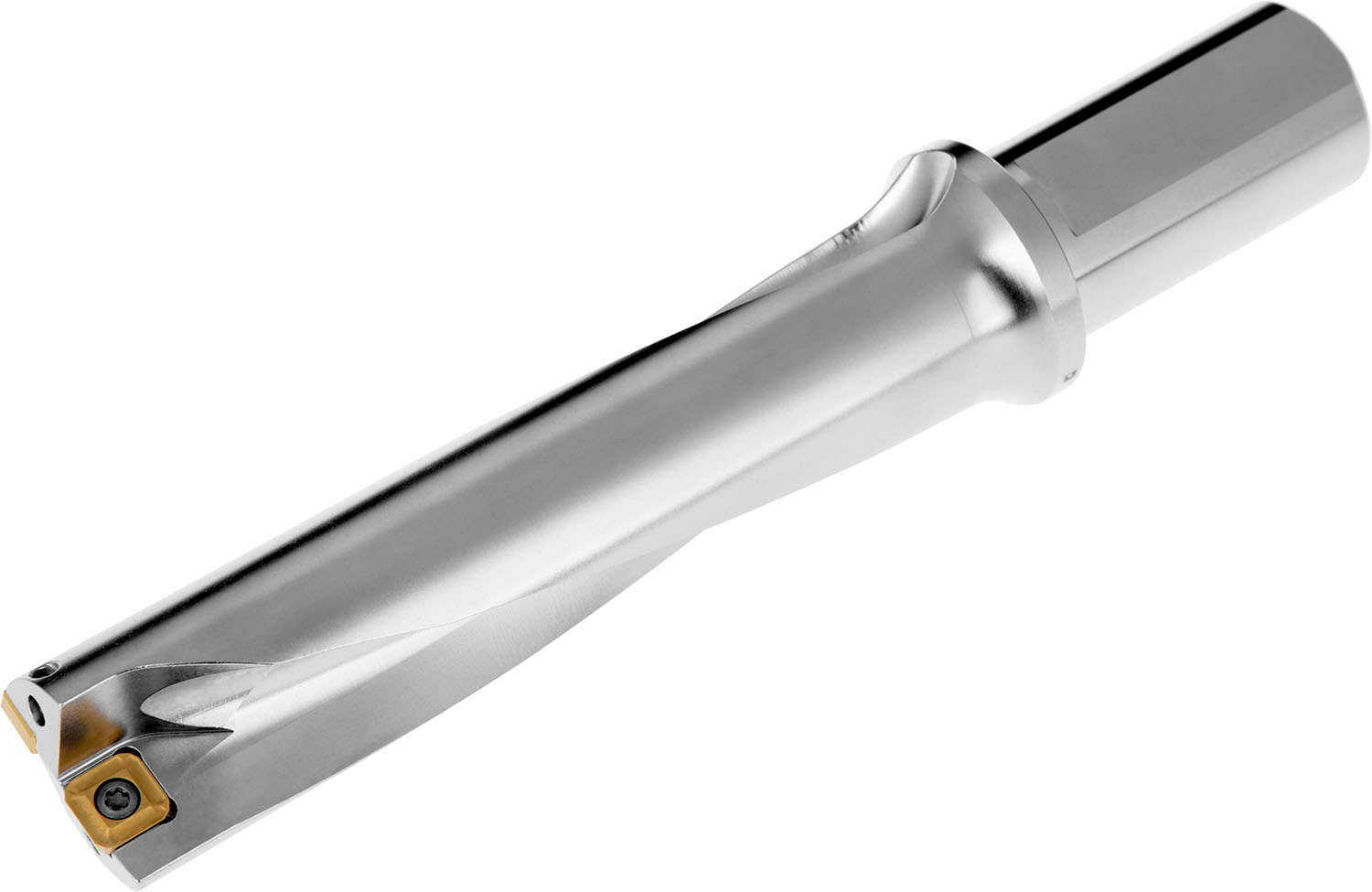

PRAMET 804D-30-120-S32 Drills

Description: Value
EAN number: 3603602943460
Product number (SAP): 84006924
Ordering code ANSI: 804D-30-120-S32
Gross weight – grams: 886.6
Cutting diameter – millimeter (DC): 30 mm
Depth of cut maximum – millimeter (APMX): 120 mm
Overall length – millimeter (OAL): 205 mm
Protruding length – millimeter (LPR): 145 mm
Shank length – millimeter (LS): 60 mm
Usable Length – millimeter (LU): 127.5 mm
Connection diameter – millimeter (DCON MS): 32 mm
Flange diameter – millimeter (DF): 42 mm
Adjustment limit minimum – millimeter (ADJLN): 0.15 mm
Adjustment limit maximum – millimeter (ADJLX): 0.5 mm
Net weight – grams: 820
ISO: 804D-30-120-S32
