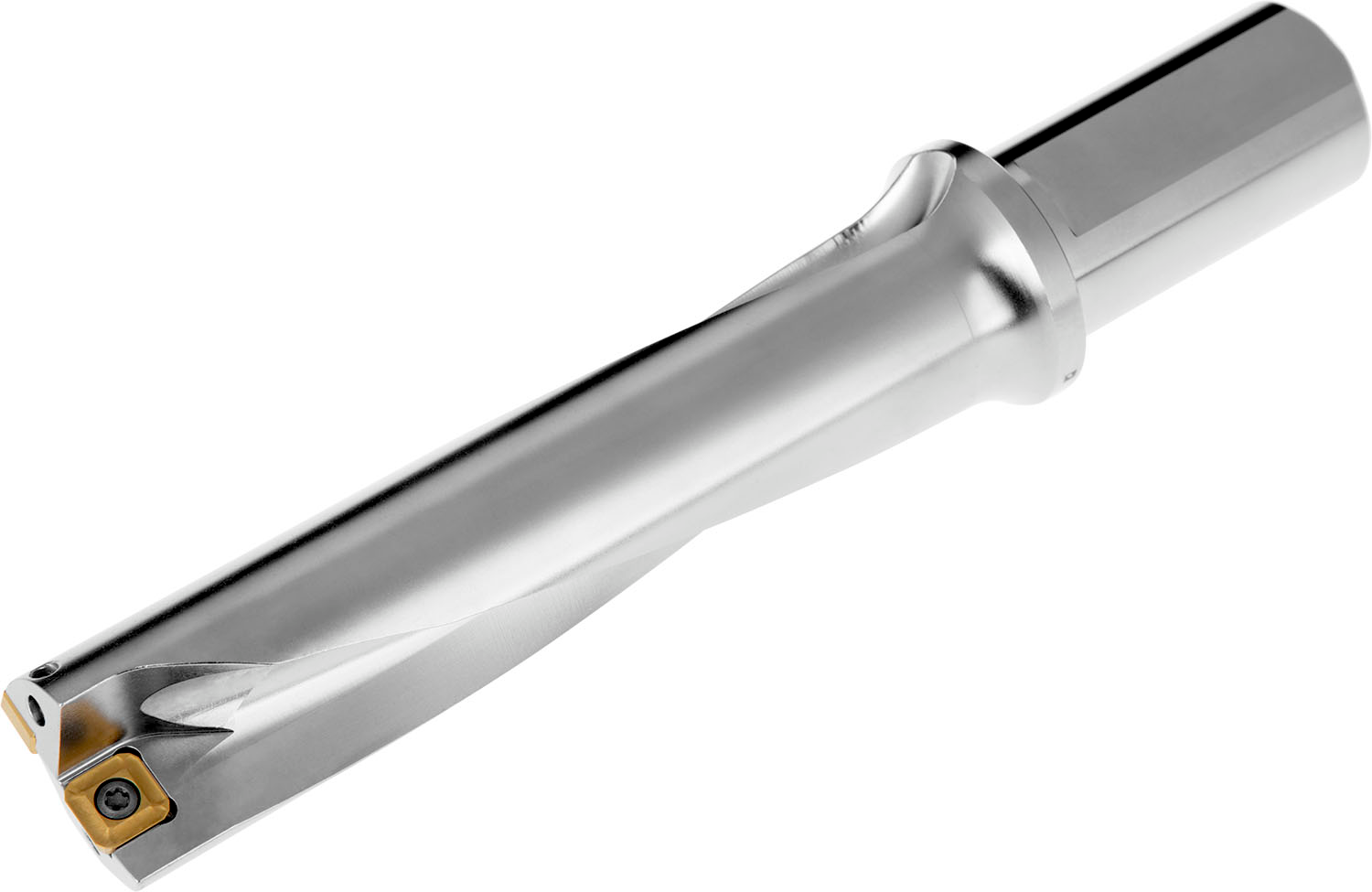

PRAMET 804D-35-140-S32 Drills

Description: Value
EAN number: 3603602943507
Product number (SAP): 84006928
Ordering code ANSI: 804D-35-140-S32
Gross weight – grams: 1100.8
Cutting diameter – millimeter (DC): 35 mm
Depth of cut maximum – millimeter (APMX): 140 mm
Overall length – millimeter (OAL): 225 mm
Protruding length – millimeter (LPR): 165 mm
Shank length – millimeter (LS): 60 mm
Usable Length – millimeter (LU): 149 mm
Connection diameter – millimeter (DCON MS): 32 mm
Flange diameter – millimeter (DF): 42 mm
Adjustment limit minimum – millimeter (ADJLN): 0.25 mm
Adjustment limit maximum – millimeter (ADJLX): 0.5 mm
Net weight – grams: 1040
ISO: 804D-35-140-S32
