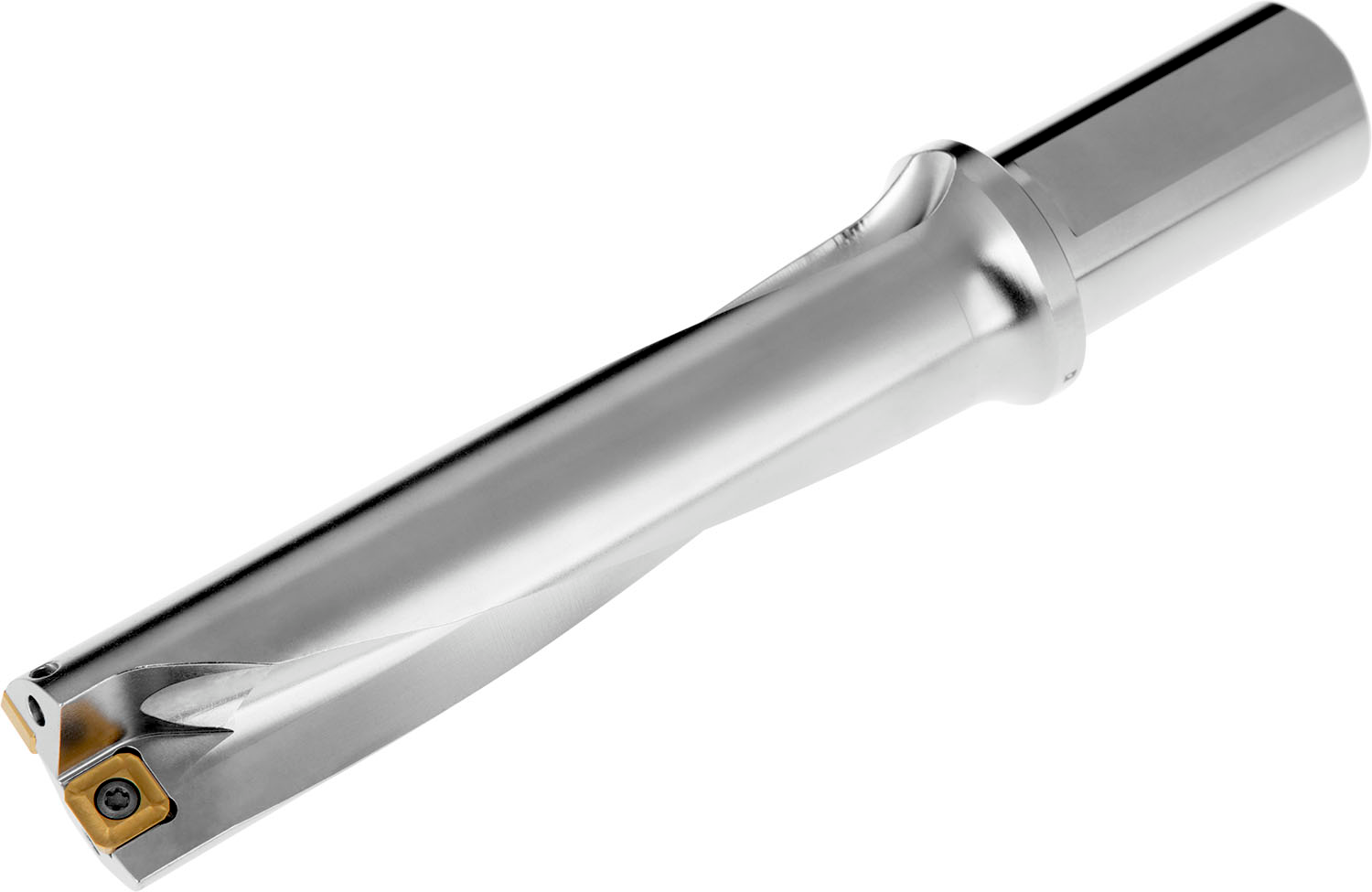

PRAMET 804D-37-148-S32 Drills

Description: Value
EAN number: 3603602943521
Product number (SAP): 84006930
Ordering code ANSI: 804D-37-148-S32
Gross weight – grams: 1210.1
Cutting diameter – millimeter (DC): 37 mm
Depth of cut maximum – millimeter (APMX): 148 mm
Overall length – millimeter (OAL): 233 mm
Protruding length – millimeter (LPR): 173 mm
Shank length – millimeter (LS): 60 mm
Usable Length – millimeter (LU): 158 mm
Connection diameter – millimeter (DCON MS): 32 mm
Flange diameter – millimeter (DF): 42 mm
Adjustment limit minimum – millimeter (ADJLN): 0.1 mm
Adjustment limit maximum – millimeter (ADJLX): 0.5 mm
Net weight – grams: 1110
ISO: 804D-37-148-S32
