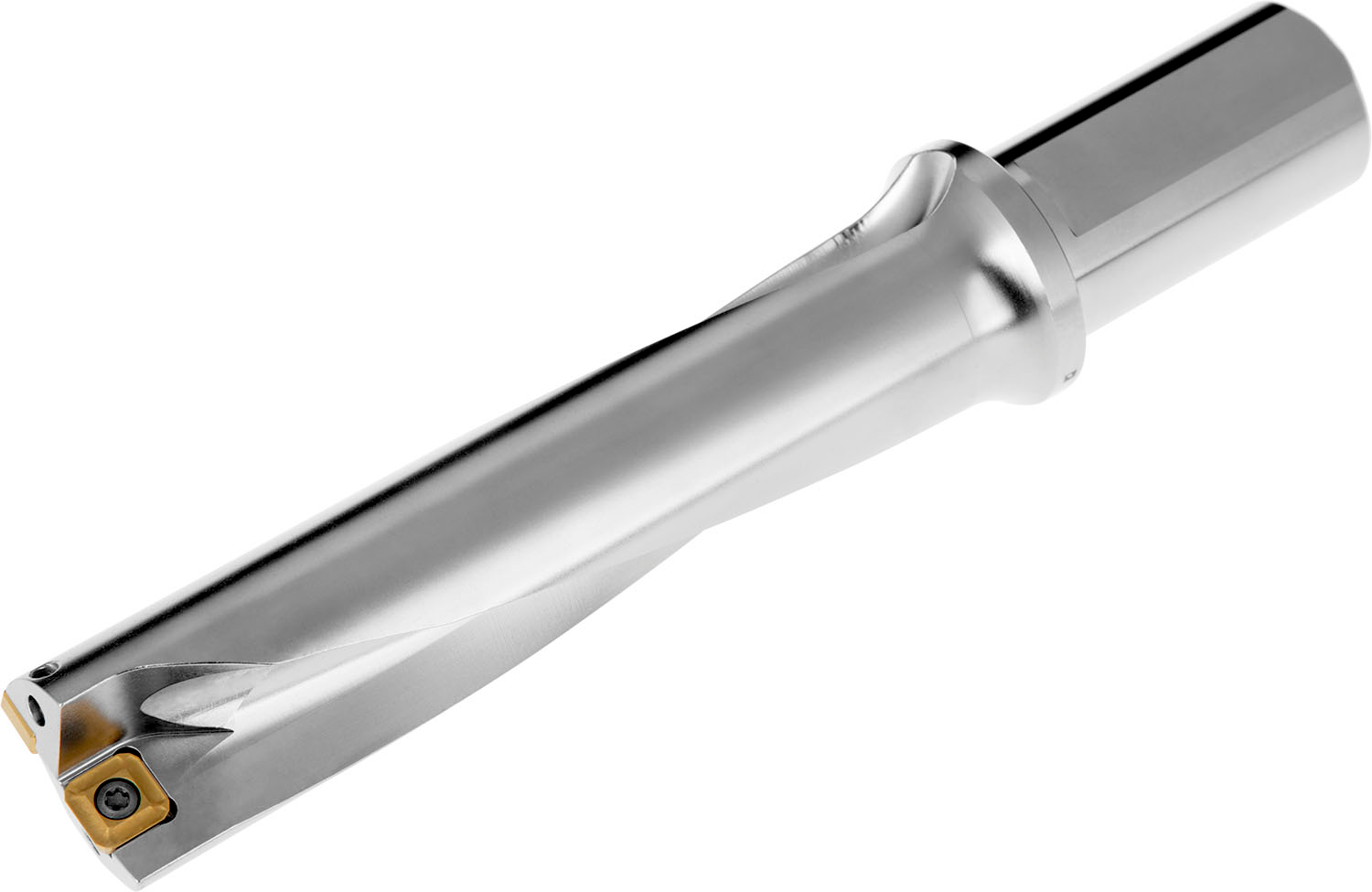

PRAMET 804D-41-164-S40 Drills

Description: Value
EAN number: 3603602963185
Product number (SAP): 86006554
Ordering code ANSI: 804D-41-164-S40
Gross weight – grams: 1834
Cutting diameter – millimeter (DC): 41 mm
Depth of cut maximum – millimeter (APMX): 164 mm
Overall length – millimeter (OAL): 259 mm
Protruding length – millimeter (LPR): 189 mm
Shank length – millimeter (LS): 70 mm
Usable Length – millimeter (LU): 172 mm
Connection diameter – millimeter (DCON MS): 40 mm
Flange diameter – millimeter (DF): 50 mm
Adjustment limit minimum – millimeter (ADJLN): 0.2 mm
Adjustment limit maximum – millimeter (ADJLX): 0.5 mm
Net weight – grams: 1680
ISO: 804D-41-164-S40
