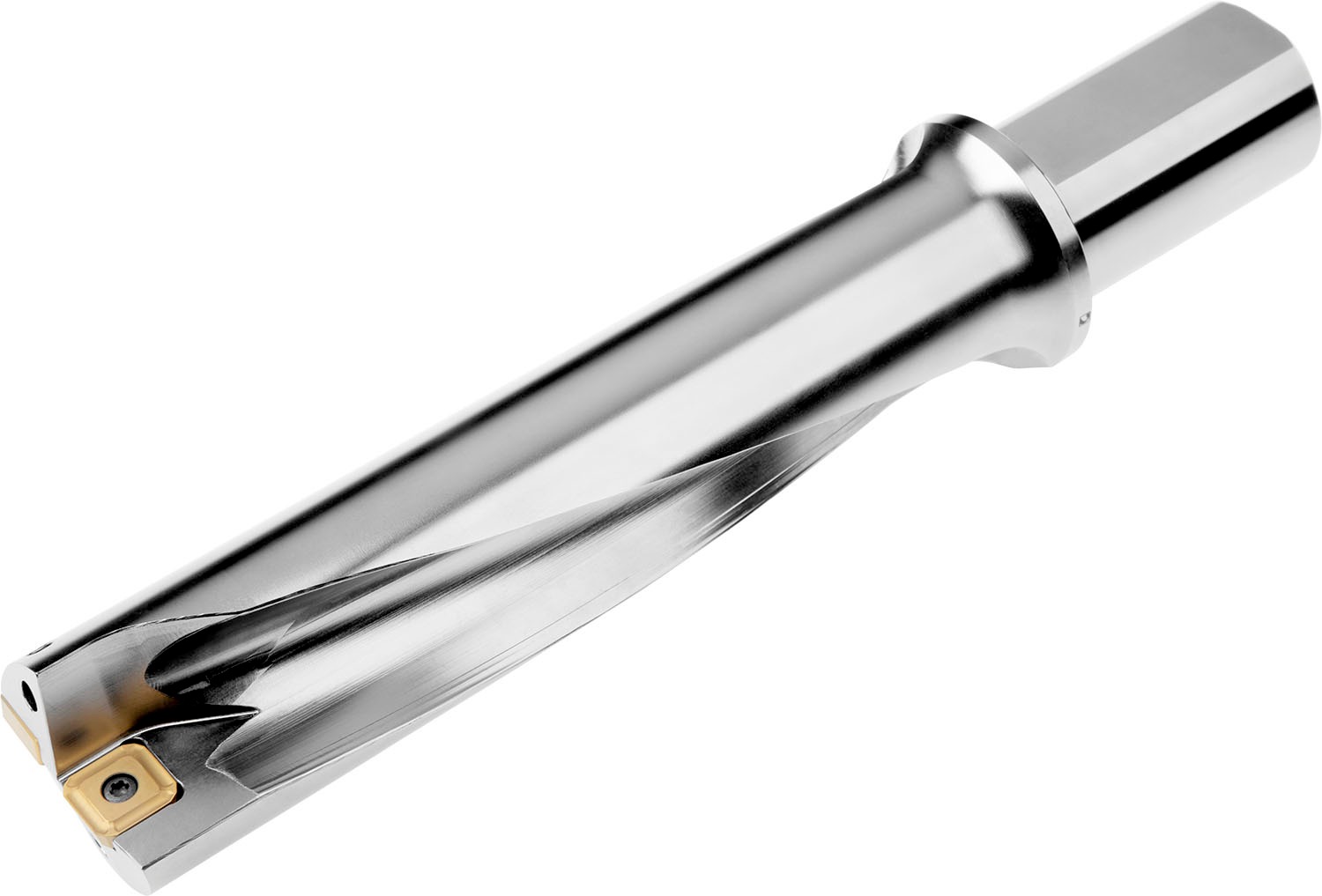

PRAMET 804D-48-192-S40 Drills

Description: Value
EAN number: 3603602963253
Product number (SAP): 86006564
Ordering code ANSI: 804D-48-192-S40
Gross weight – grams: 2473.1
Cutting diameter – millimeter (DC): 48 mm
Depth of cut maximum – millimeter (APMX): 192 mm
Overall length – millimeter (OAL): 287 mm
Protruding length – millimeter (LPR): 217 mm
Shank length – millimeter (LS): 70 mm
Usable Length – millimeter (LU): 201 mm
Connection diameter – millimeter (DCON MS): 40 mm
Flange diameter – millimeter (DF): 55 mm
Adjustment limit minimum – millimeter (ADJLN): 0.5 mm
Adjustment limit maximum – millimeter (ADJLX): 0.5 mm
Net weight – grams: 2330
ISO: 804D-48-192-S40
