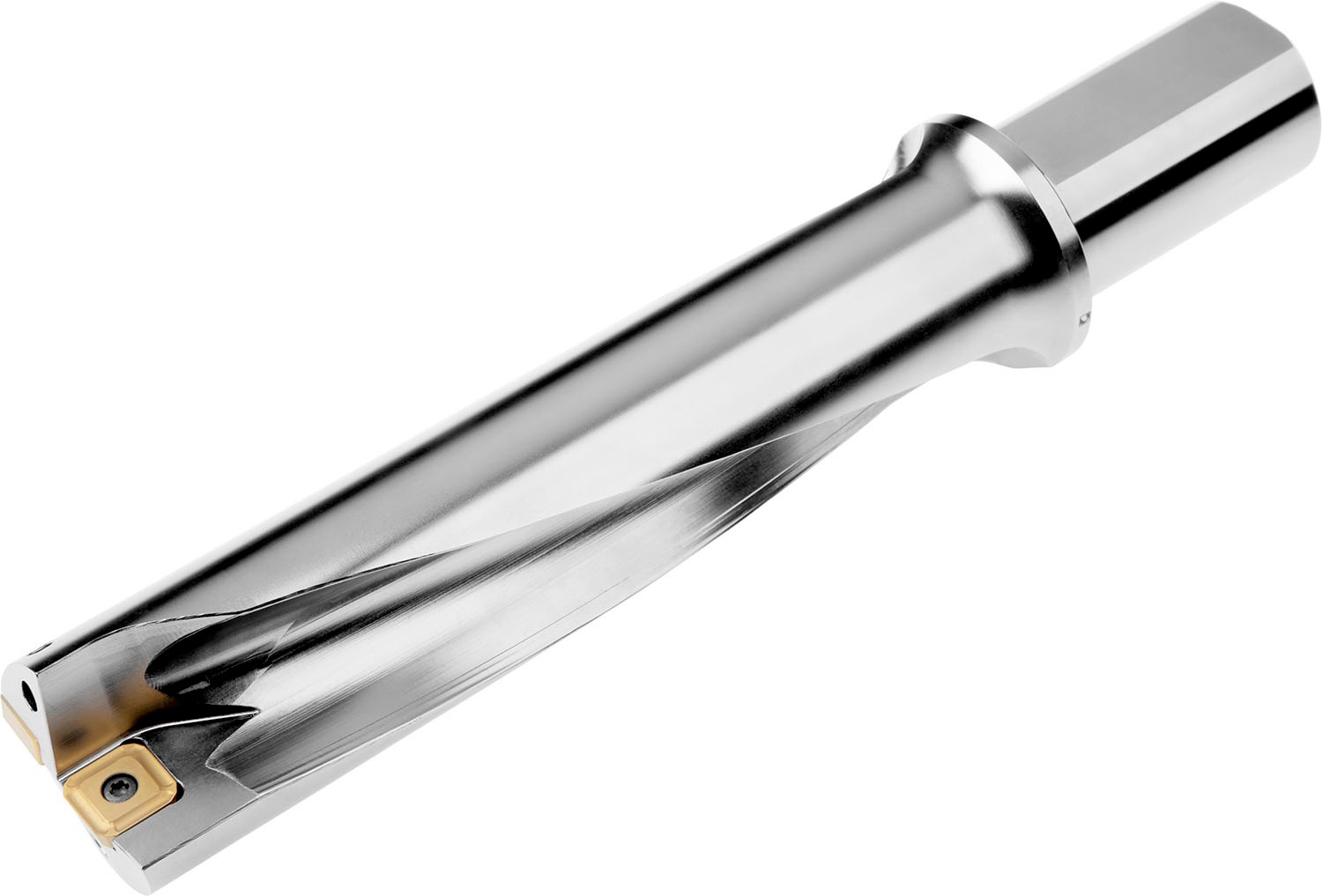

PRAMET 804D-54-216-S40 Drills

Description: Value
EAN number: 3603602963314
Product number (SAP): 86006570
Ordering code ANSI: 804D-54-216-S40
Gross weight – grams: 3165.8
Cutting diameter – millimeter (DC): 54 mm
Depth of cut maximum – millimeter (APMX): 216 mm
Overall length – millimeter (OAL): 311 mm
Protruding length – millimeter (LPR): 241 mm
Shank length – millimeter (LS): 70 mm
Usable Length – millimeter (LU): 226.5 mm
Connection diameter – millimeter (DCON MS): 40 mm
Flange diameter – millimeter (DF): 58 mm
Adjustment limit minimum – millimeter (ADJLN): 0.5 mm
Adjustment limit maximum – millimeter (ADJLX): 0.5 mm
Net weight – grams: 2900
ISO: 804D-54-216-S40
