PRAMET 805D-22-110-S25 Drills

Product Code: 805D-22-110-S25

$932.46$847.69 Ex. GST

Product Code: 805D-22-110-S25 SKU 805D-22-110-S25 Categories , ,
PRAMET 805D-22-110-S25 Drills

Need Technical Advice?

Head over to our other technical website - millerstooling.com.au
Get advice now

Description

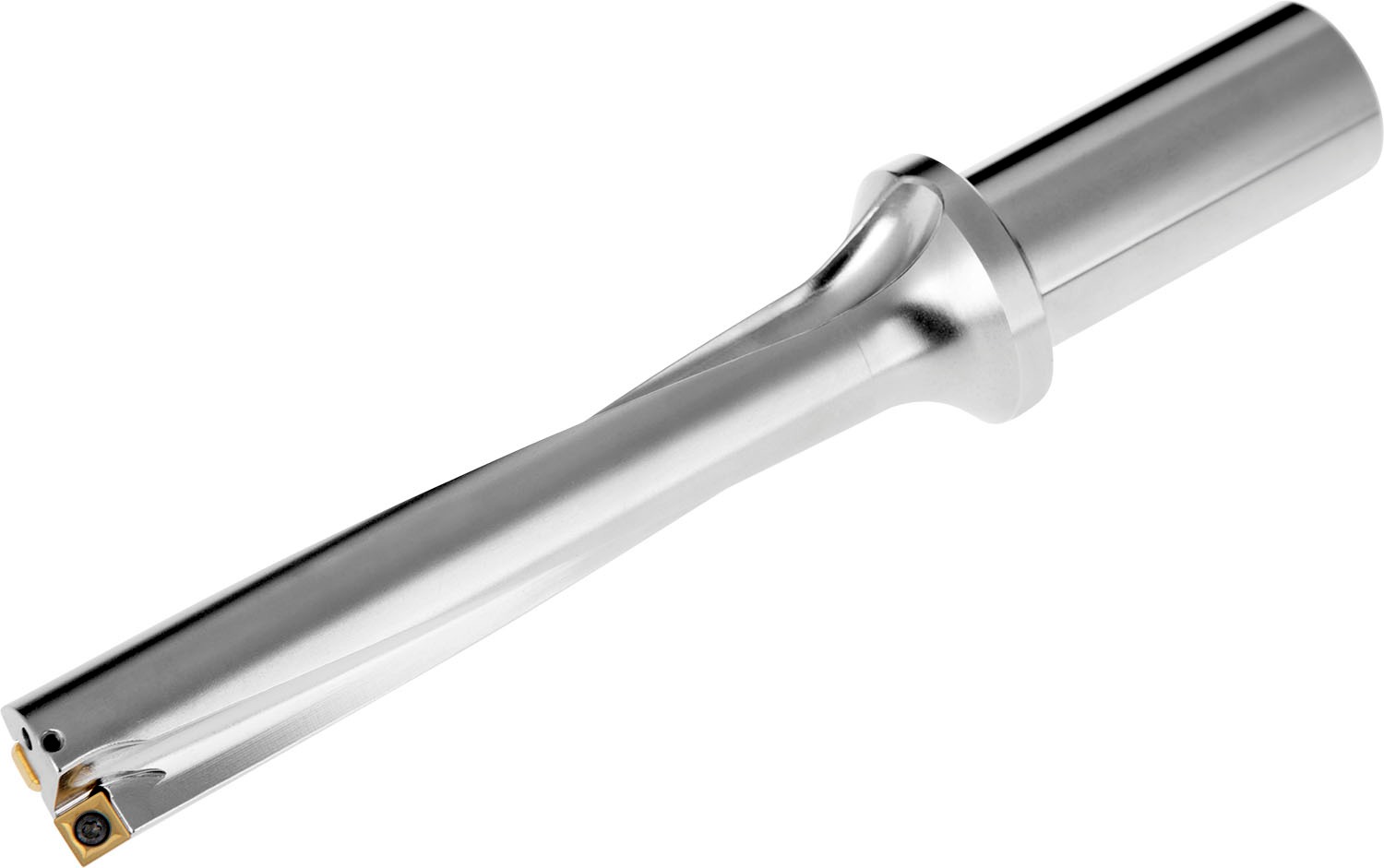

Indexable insert drill which utilises an XPET 0703.. insert in the central pocket and a SCET 0602.. insert in the peripheral pocket, cutting diameter 22mm, with a 25mm cylindrical shank with flat according to ISO 9766 and through coolant for maximum drilling depths up to 5 x D

Additional information

Weight 0.9053 kg
Dimensions
barcode
Additional Information

Description: Value
EAN number: 3603602943583
Product number (SAP): 84006944
Ordering code ANSI: 805D-22-110-S25
Gross weight – grams: 503
Cutting diameter – millimeter (DC): 22 mm
Depth of cut maximum – millimeter (APMX): 110 mm
Overall length – millimeter (OAL): 191 mm
Protruding length – millimeter (LPR): 135 mm
Shank length – millimeter (LS): 56 mm
Usable Length – millimeter (LU): 116 mm
Connection diameter – millimeter (DCON MS): 25 mm
Flange diameter – millimeter (DF): 35 mm
Adjustment limit minimum – millimeter (ADJLN): 0.45 mm
Adjustment limit maximum – millimeter (ADJLX): 0.5 mm
Net weight – grams: 450
ISO: 805D-22-110-S25

Brand

PRAMET
