PRAMET 805D-31-155-S32 Drills

Description

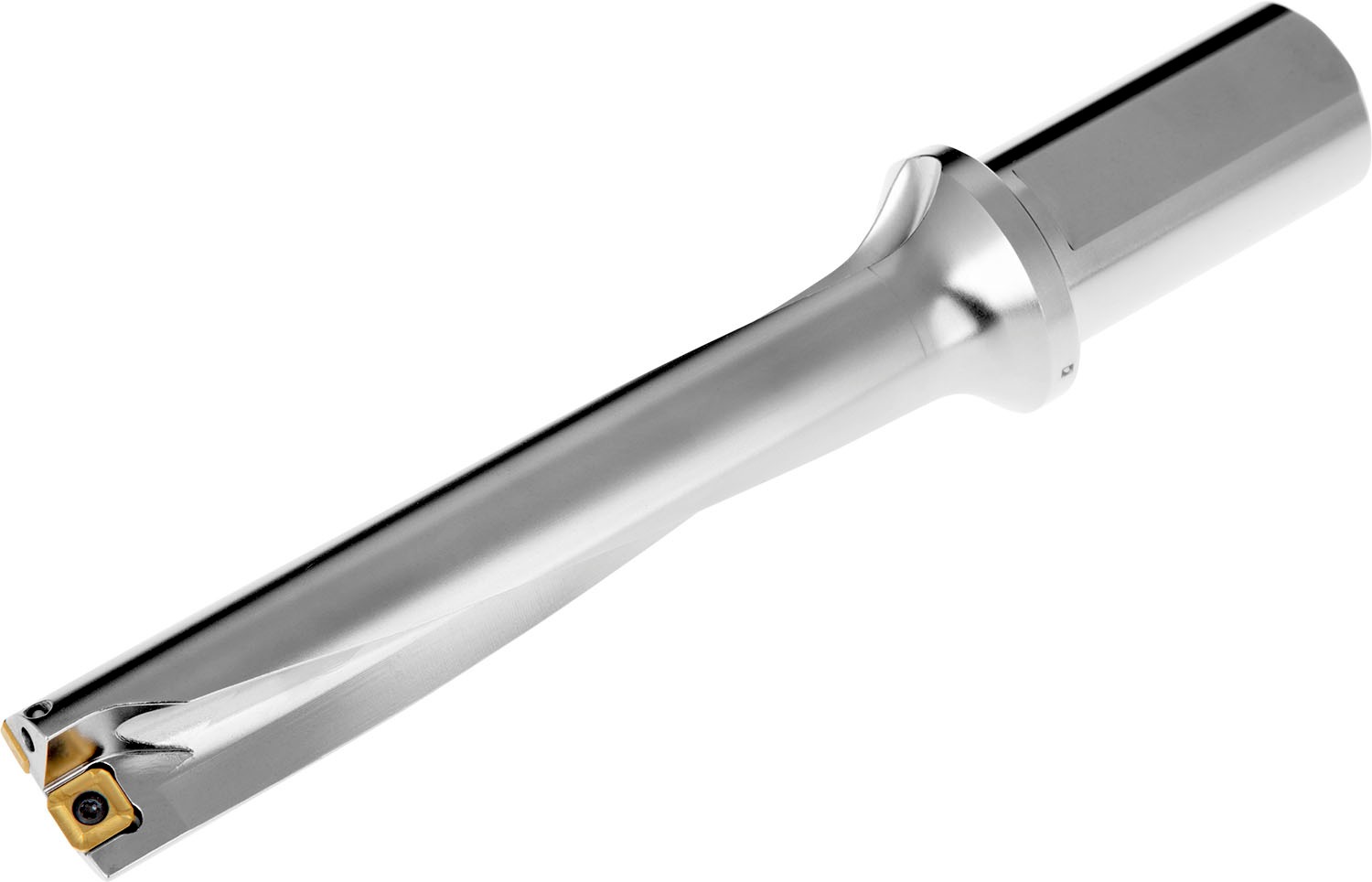

Indexable insert drill which utilises an XPET 0903.. insert in the central pocket and a SCET 09T3.. insert in the peripheral pocket, cutting diameter 31mm, with a 32mm cylindrical shank with flat according to ISO 9766 and through coolant for maximum drilling depths up to 5 x D

Additional information

Weight	1.0637 kg
Dimensions
barcode
Additional Information	Description: Value EAN number: 3603602943675 Product number (SAP): 84006953 Ordering code ANSI: 805D-31-155-S32 Gross weight – grams: 1025 Cutting diameter – millimeter (DC): 31 mm Depth of cut maximum – millimeter (APMX): 155 mm Overall length – millimeter (OAL): 240 mm Protruding length – millimeter (LPR): 180 mm Shank length – millimeter (LS): 60 mm Usable Length – millimeter (LU): 163 mm Connection diameter – millimeter (DCON MS): 32 mm Flange diameter – millimeter (DF): 42 mm Adjustment limit minimum – millimeter (ADJLN): 0.15 mm Adjustment limit maximum – millimeter (ADJLX): 0.5 mm Net weight – grams: 950 ISO: 805D-31-155-S32
