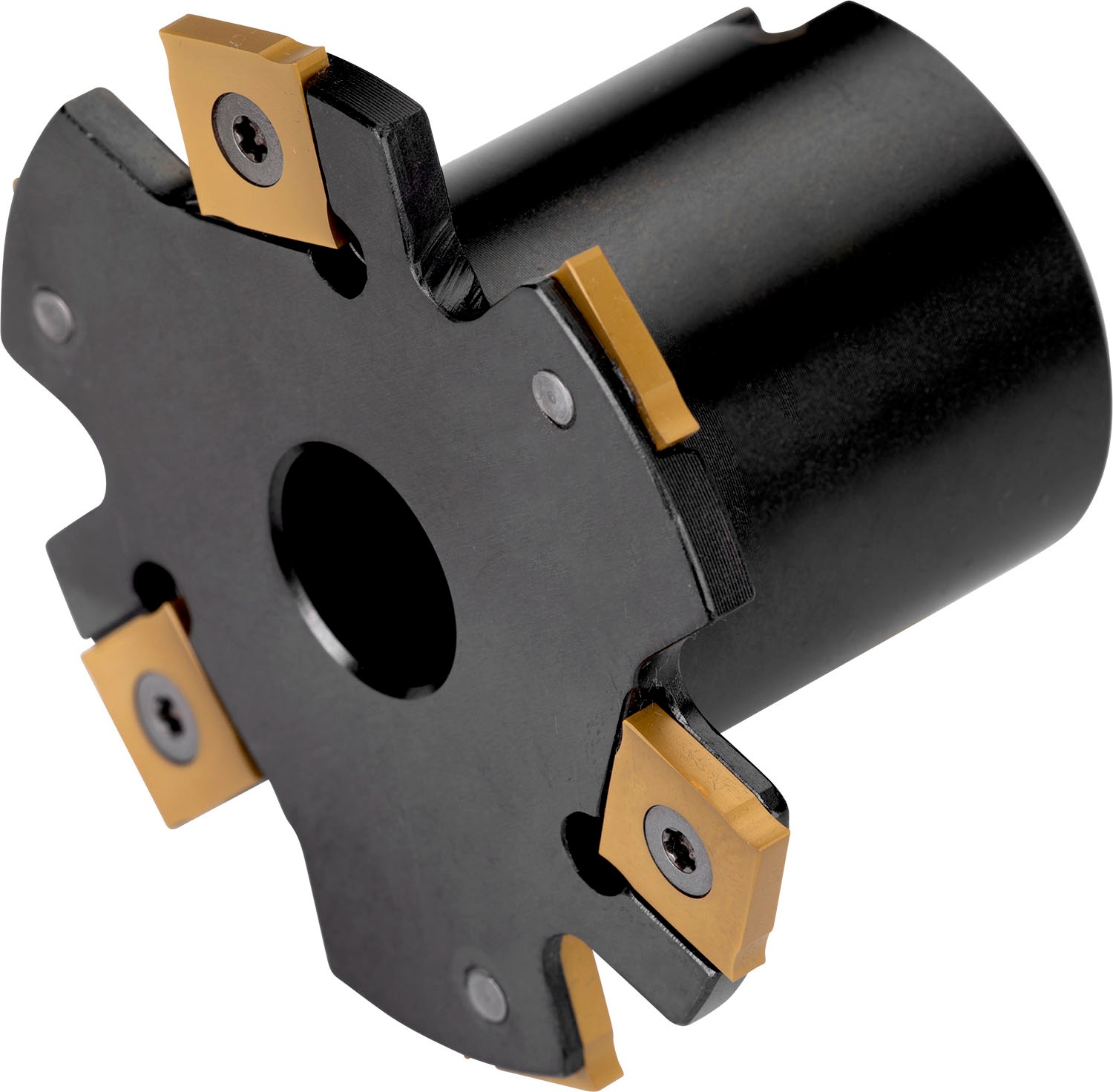

PRAMET 80A04R-S90SN12N6 Milling cutters with clamping by screw

Description: Value
EAN number: 3603602936721
Product number (SAP): 84004709
Ordering code ANSI: 80A04R-S90SN12N6
Gross weight – grams: 496
Milling range CW – Global: 4.0 – 14.0 mm
Cutting diameter – millimeter (DC): 80 mm
Overall length – millimeter (OAL): 40 mm
Connection bore diameter – millimeter (DCB): 22 mm
Hub diameter – millimeter (DHUB): 40 mm
Cutting depth maximum – millimeter (CDX): 17.5 mm
Cutting width – millimeter (CW): 6 mm
Face effective cutting edge count (ZEFF): 4
Radial rake angle (GAMF): 2.5
Axial rake angle (GAMP): -0.5
Peripheral effective cutting edge count (ZEFP): 8
Rotational speed maximum (RPMX): 8400
Net weight – grams: 494
Cutter Design: S90SN
Insert index count (NOI): 8
ISO: 80A04R-S90SN12N6
