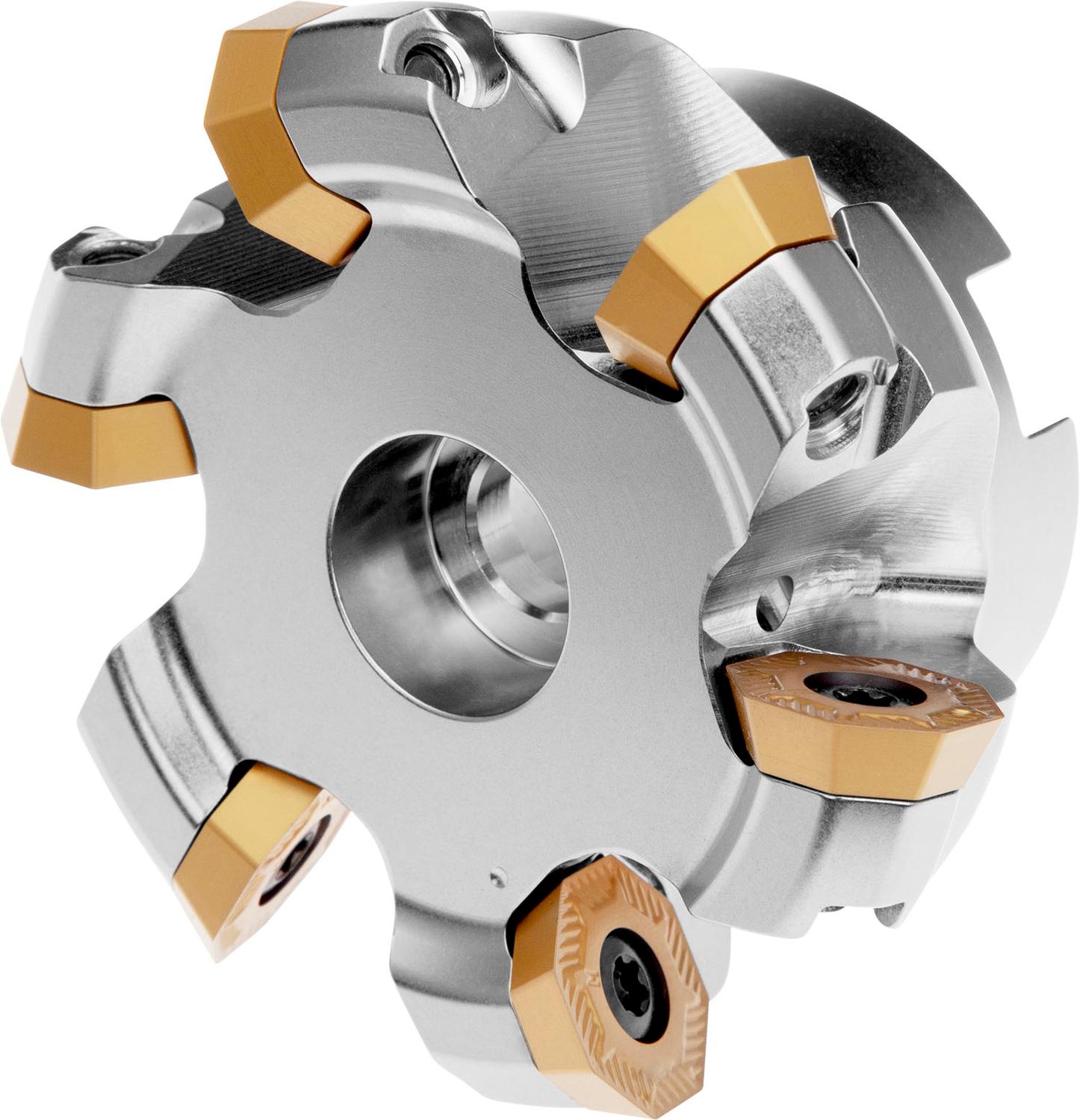

PRAMET 80A05R-S45OE06Z-C Milling cutters with clamping by screw

Product Code: 80A05R-S45OE06Z-C

$1,116.01$1,014.55 Ex. GST

Product Code: 80A05R-S45OE06Z-C SKU 80A05R-S45OE06Z-C Categories , ,

Need Technical Advice?

Head over to our other technical website - millerstooling.com.au

Description

Face mill with double positive geometry which utilises 5 of OEHT 0604AE.., REHT 1604M0.. or XEHT 0604AE.. single-sided inserts, cutting diameter 80 to maximum 90.2mm with 43° approach angle and 27mm connection bore according to DIN 8030-A, 50mm protrusion length, through coolant and differential pitch for face milling and chamfering with a maximum depth of cut of 3.3 (9.9)mm

Additional information

Weight 1.0835 kg
barcode
Additional Information

Description: Value
EAN number: 3603603072244
Product number (SAP): 86025910
Ordering code ANSI: 80A05R-S45OE06Z-C
Gross weight – grams: 1019.2
Cutting diameter – millimeter (DC): 80 mm
Cutting diameter maximum – millimeter (DCX): 90.2 mm
Functional length – millimeter (LF): 50 mm
Connection diameter – millimeter (DCON MS): 27 mm
Counterbore diameter connection bore – millimeter (DCCB): 38 mm
Keyway width – millimeter (KWW): 12.4 mm
Keyway depth – millimeter (KWD): 7 mm
Radial rake angle (GAMF): 6
Axial rake angle (GAMP): 10
Peripheral effective cutting edge count (ZEFP): 5
Cutting pitch differential (CPDF): Yes
Rotational speed maximum (RPMX): 8500
Net weight – grams: 1019.2
Cutter Design: SOE06Z
Insert index count (NOI): 5
ISO: 80A05R-S45OE06Z-C
