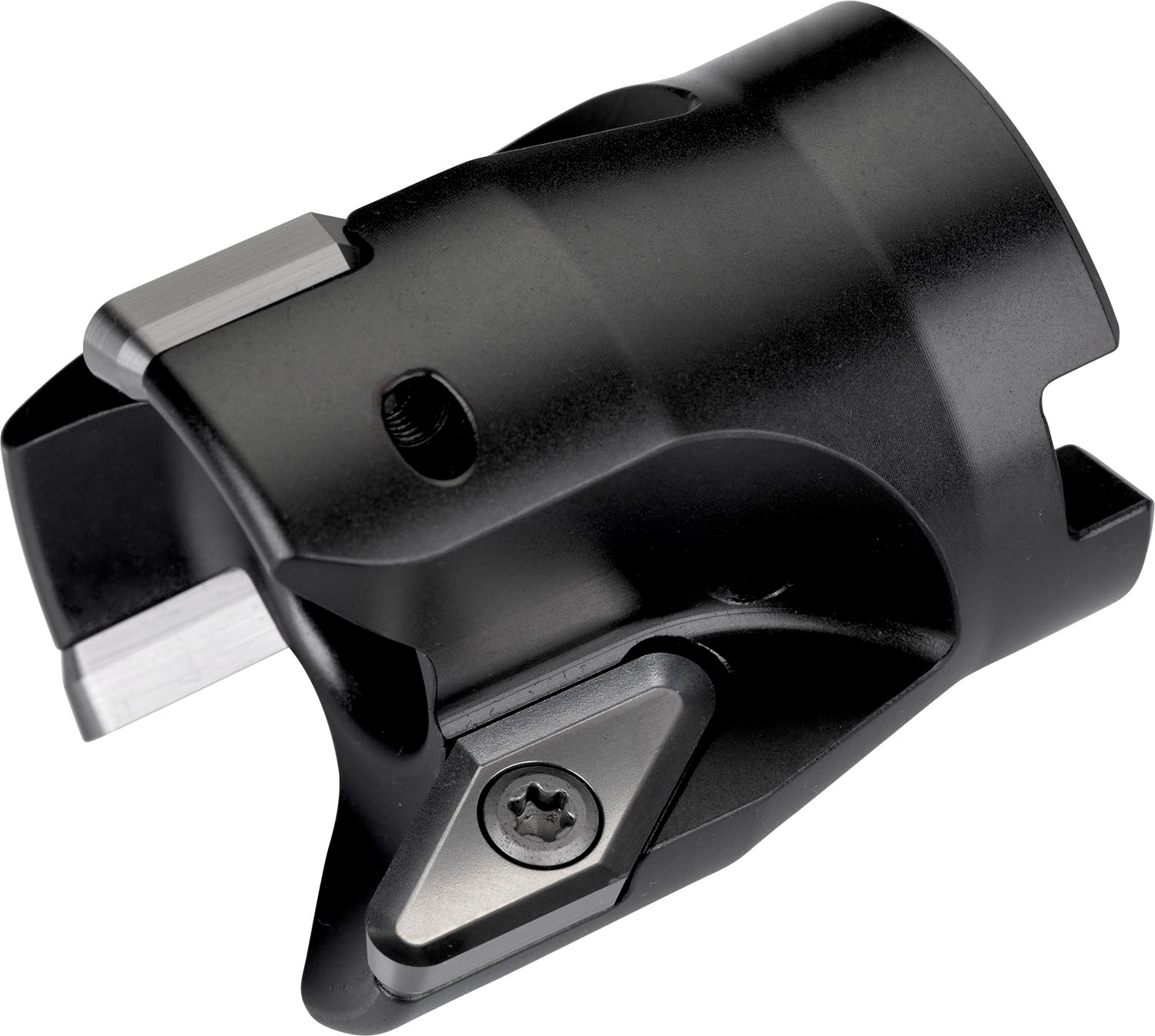

PRAMET 80A05R-S90VC22C Milling cutters with clamping by screw

Product Code: 80A05R-S90VC22C

$1,246.30$1,133.00 Ex. GST

Product Code: 80A05R-S90VC22C SKU 80A05R-S90VC22C Categories , ,

Need Technical Advice?

Head over to our other technical website - millerstooling.com.au

Description

End mill with double positive geometry which utilises 5 of VCGT 220530F-FA single-sided inserts, cutting diameter 80mm with 90° approach angle and 27mm connection bore according to DIN 8030-A, 56mm protrusion length, through coolant for helical milling and progressive plunge milling with a maximum depth of cut of 3.0 (16.0)mm

Additional information

Weight 1.21 kg
barcode
Additional Information

Description: Value
EAN number: 3603602933447
Product number (SAP): 84003837
Ordering code ANSI: 80A05R-S90VC22C
Gross weight – grams: 1122.3
Cutting diameter – millimeter (DC): 80 mm
Connection diameter – millimeter (DCON MS): 27 mm
Counterbore diameter connection bore – millimeter (DCCB): 20 mm
Functional length – millimeter (LF): 56 mm
Hub diameter – millimeter (DHUB): 63 mm
Keyway width – millimeter (KWW): 12 mm
Keyway depth – millimeter (KWD): 7 mm
Radial rake angle (GAMF): 8
Axial rake angle (GAMP): 3
Peripheral effective cutting edge count (ZEFP): 5
Rotational speed maximum (RPMX): 6600
Net weight – grams: 1120
Cutter Design: SVC22C
Insert index count (NOI): 5
ISO: 80A05R-S90VC22C

Brand

PRAMET
