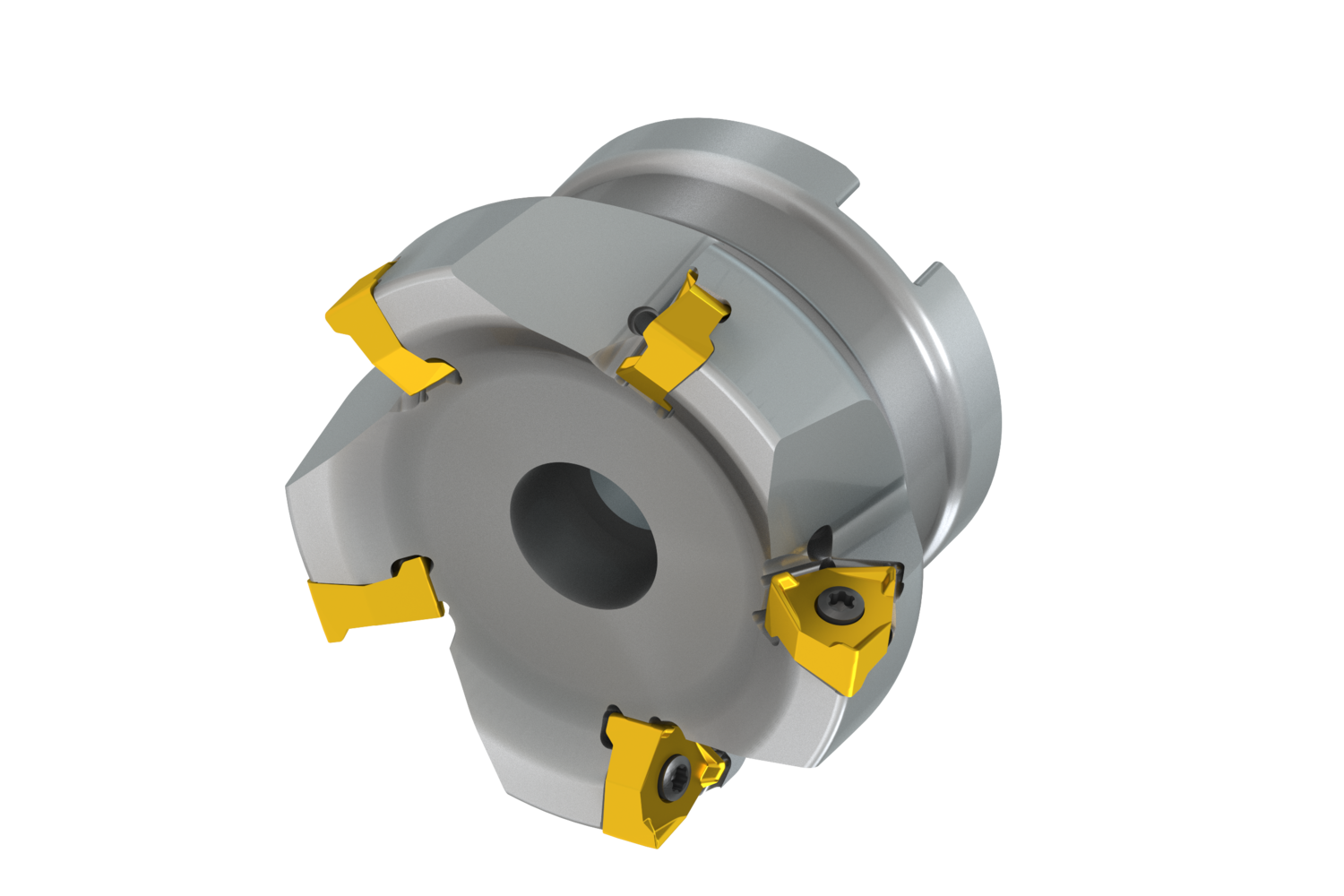

PRAMET 80A05R-S90XN08-C Milling Cutters

Description: Value
EAN number: 3603604144223
Product number (SAP): 86043807
Ordering code ANSI: 80A05R-S90XN08-C
Gross weight – grams: 1137.3

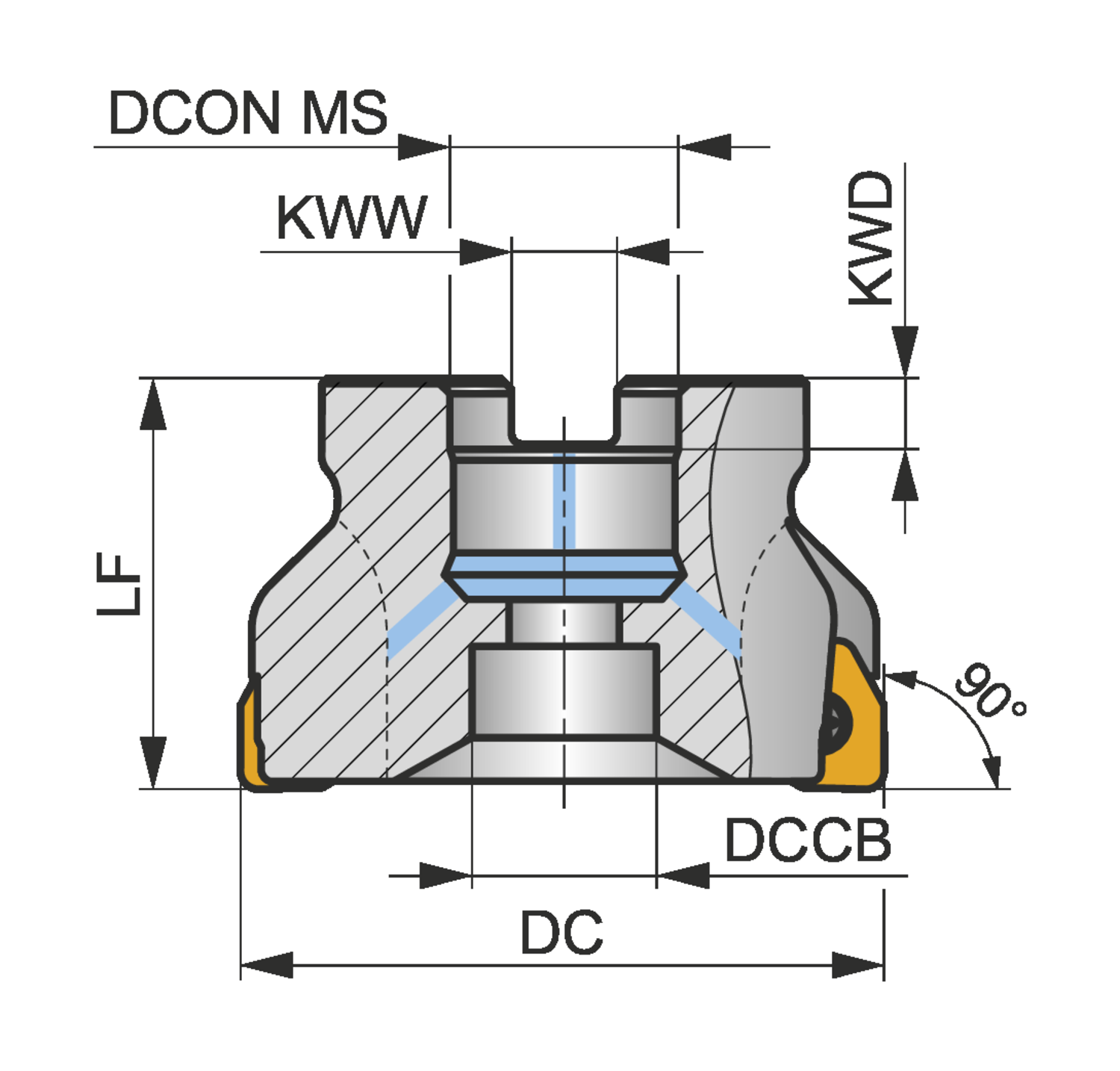

Cutting diameter – millimeter (DC): 80 mm
Connection diameter – millimeter (DCON MS): 27 mm
Counterbore diameter connection bore – millimeter (DCCB): 22 mm
Functional length – millimeter (LF): 50 mm
Keyway width – millimeter (KWW): 12.4 mm
Keyway depth – millimeter (KWD): 7 mm

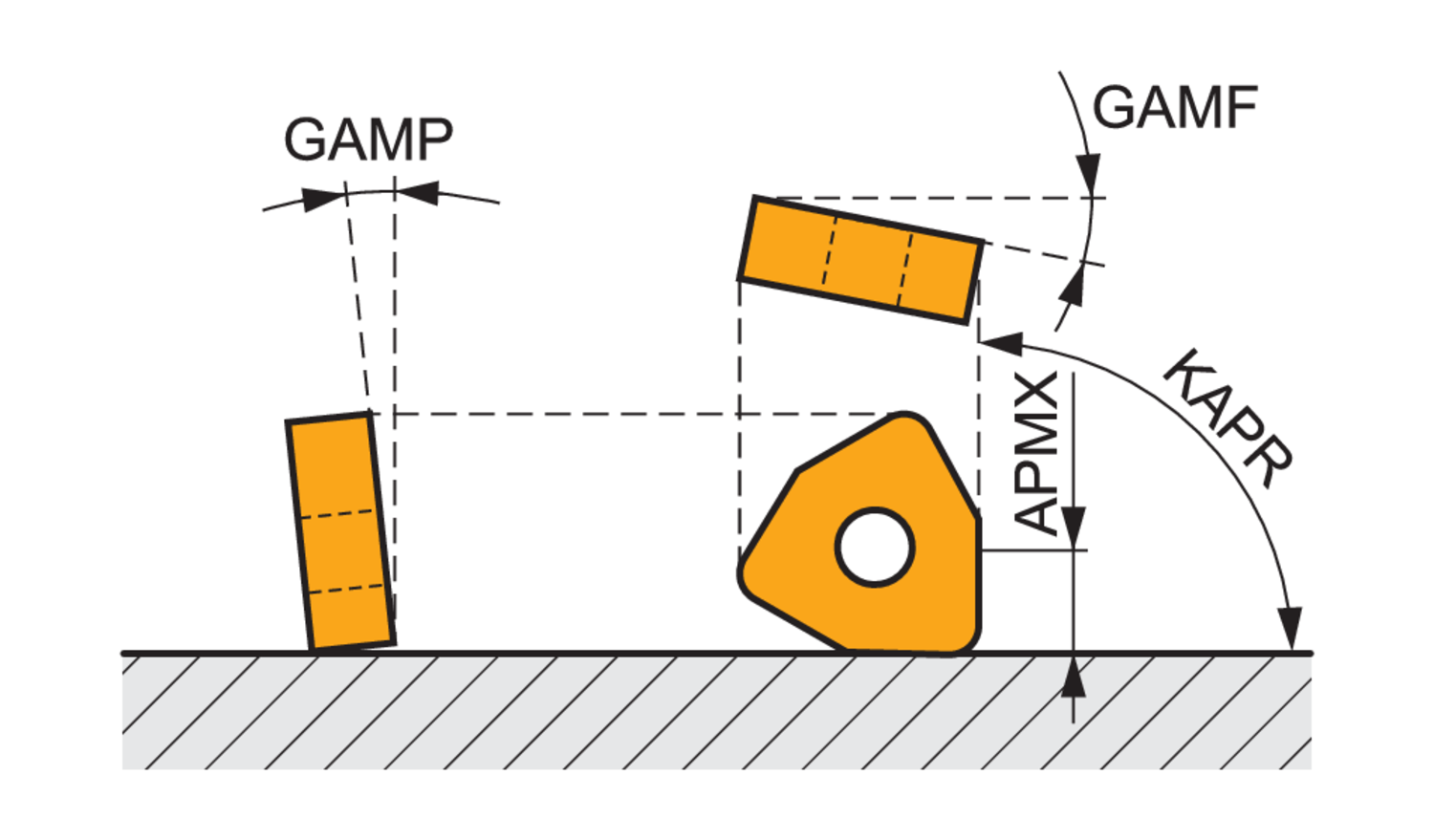

Radial rake angle (GAMF): -11.2
Axial rake angle (GAMP): -6.3
Peripheral effective cutting edge count (ZEFP): 5
Cutting pitch differential (CPDF): Yes
Rotational speed maximum (RPMX): 8400
Net weight – grams: 1000
Cutter Design: SXN08
ISO: 80A05R-S90XN08-C
