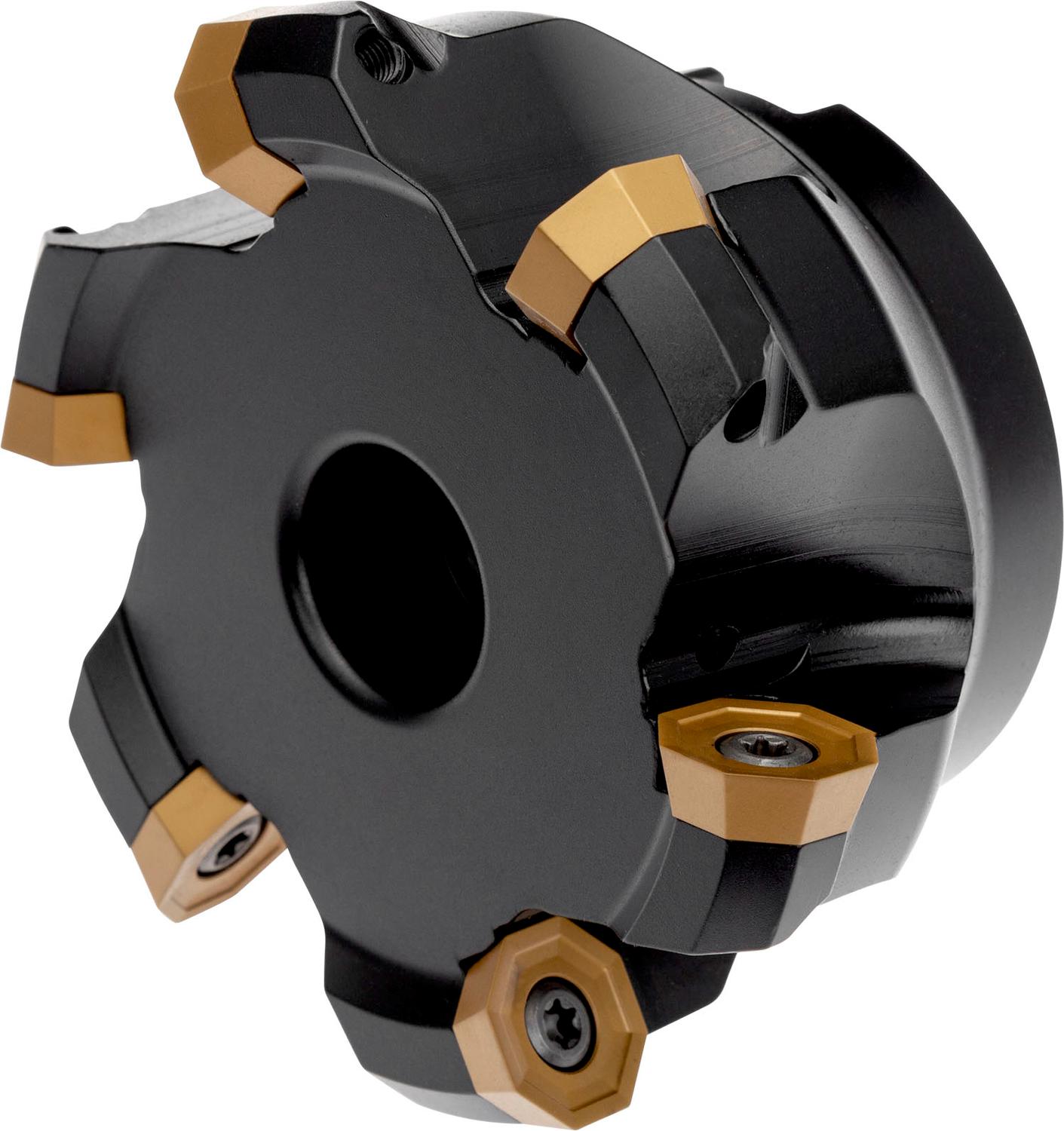

PRAMET 80A06R-S45OD06D Milling cutters with clamping by screw

Description: Value
EAN Number: 3603602921833 Product Number (SAP): 86038502 Ordering Code ANSI: 80A06R-S45OD06D Gross Weight – Grams: 1192.2 Cutting Diameter – Millimeter (DC): 80 mm Cutting Diameter Maximum – Millimeter (DCX): 89.5 mm Functional Length – Millimeter (LF): 50 mm Connection Diameter – Millimeter (DCON MS): 27 mm Counterbore Diameter Connection Bore – Millimeter (DCCB): 20 mm Keyway Width – Millimeter (KWW): 12.4 mm Keyway Depth – Millimeter (KWD): 7 mm Radial Rake Angle (GAMF): 0 Axial Rake Angle (GAMP): 5 Peripheral Effective Cutting Edge Count (ZEFP): 6 Cutting Pitch Differential (CPDF): Yes Rotational Speed Maximum (RPMX): 7800 Net Weight – Grams: 1190.6 Cutter Design: SOD06D Insert Index Count (NOI): 6 ISO: 80A06R-S45OD06D
