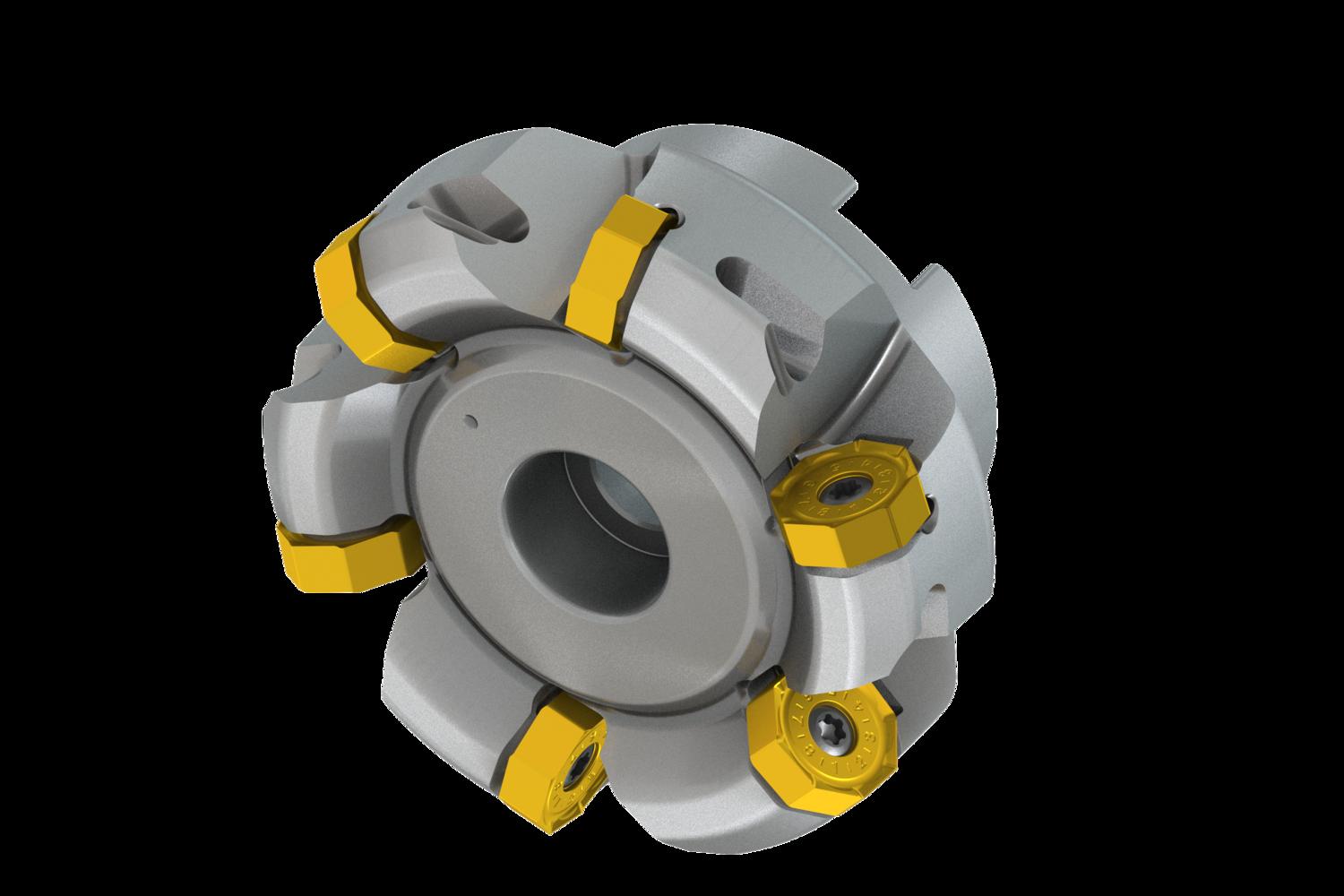

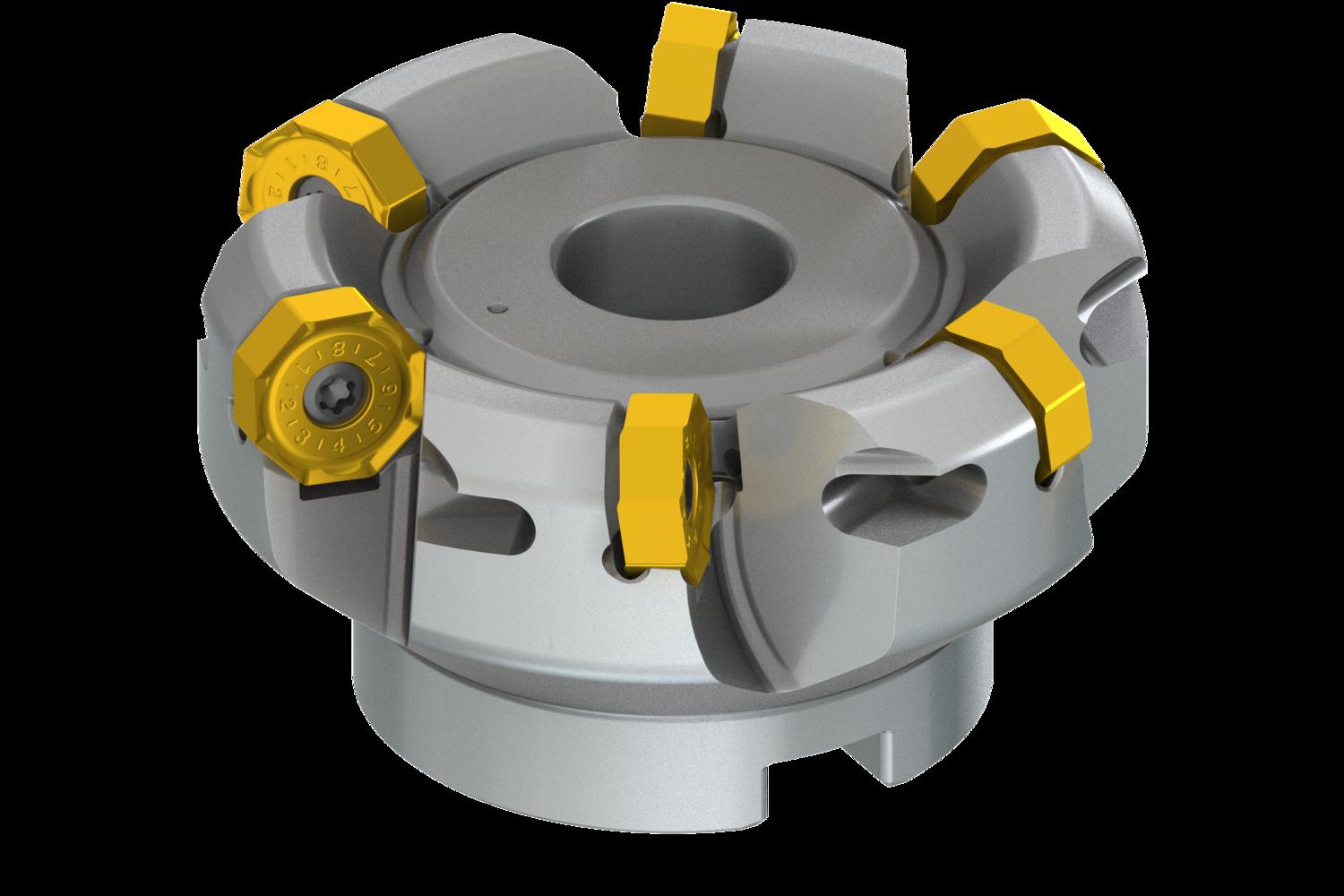

PRAMET 80A06R-S45ON06-C Milling cutters with clamping by screw

Description: Value
EAN number: 3603604105309
Product number (SAP): 86042971
Ordering code ANSI: 80A06R-S45ON06-C
Gross weight – grams: 1386.6
Cutting diameter – millimeter (DC): 80 mm
Cutting diameter maximum – millimeter (DCX): 90.8 mm
Connection diameter – millimeter (DCON MS): 27 mm
Counterbore diameter connection bore – millimeter (DCCB): 22.1 mm
Functional length – millimeter (LF): 50 mm
Keyway width – millimeter (KWW): 12.4 mm
Keyway depth – millimeter (KWD): 7 mm

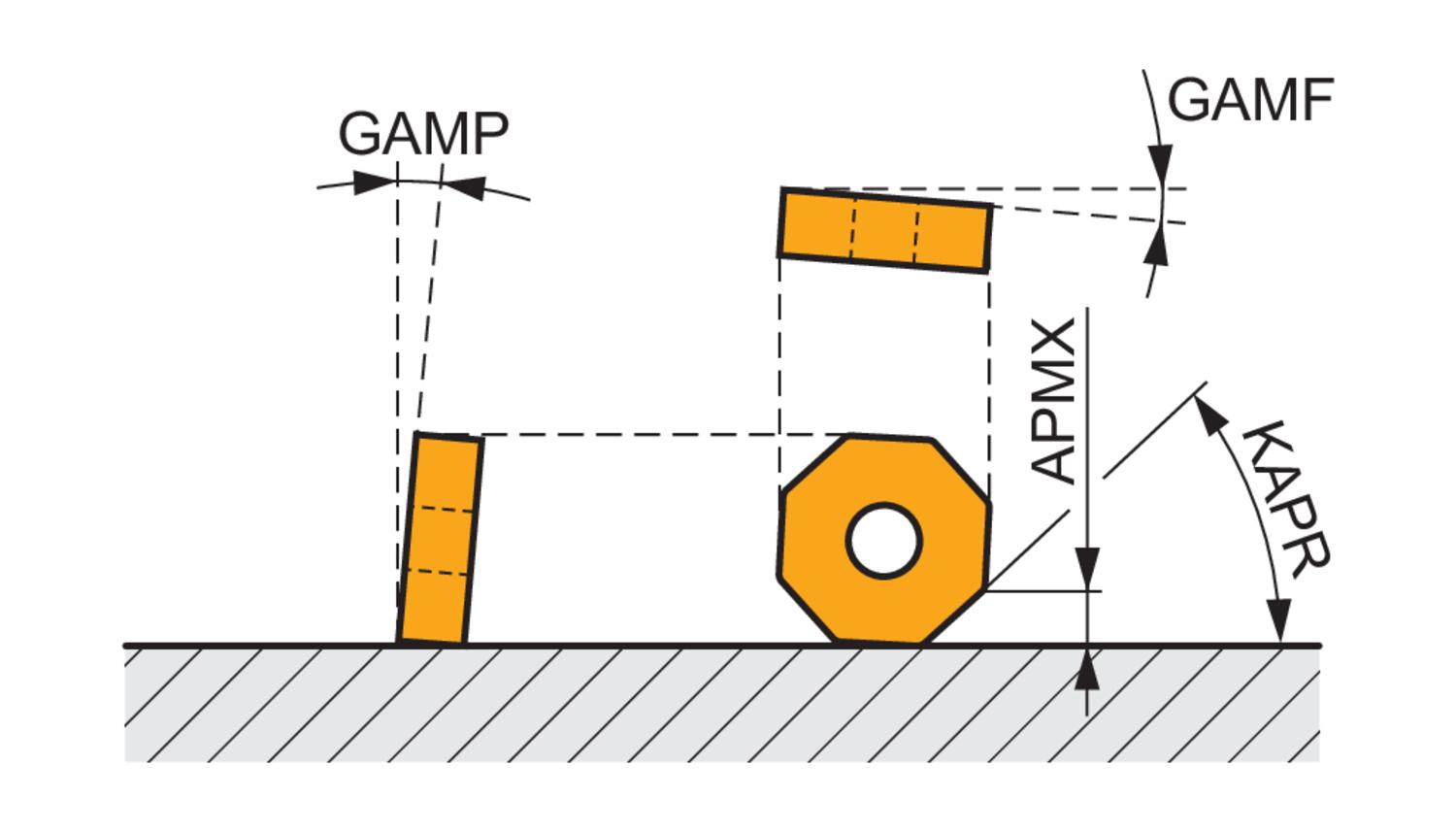

Radial rake angle (GAMF): -10
Axial rake angle (GAMP): -5
Peripheral effective cutting edge count (ZEFP): 6
Cutting pitch differential (CPDF): Yes
Rotational speed maximum (RPMX): 7500
Net weight – grams: 1270
Cutter Design: SON06C
ISO: 80A06R-S45ON06-C
