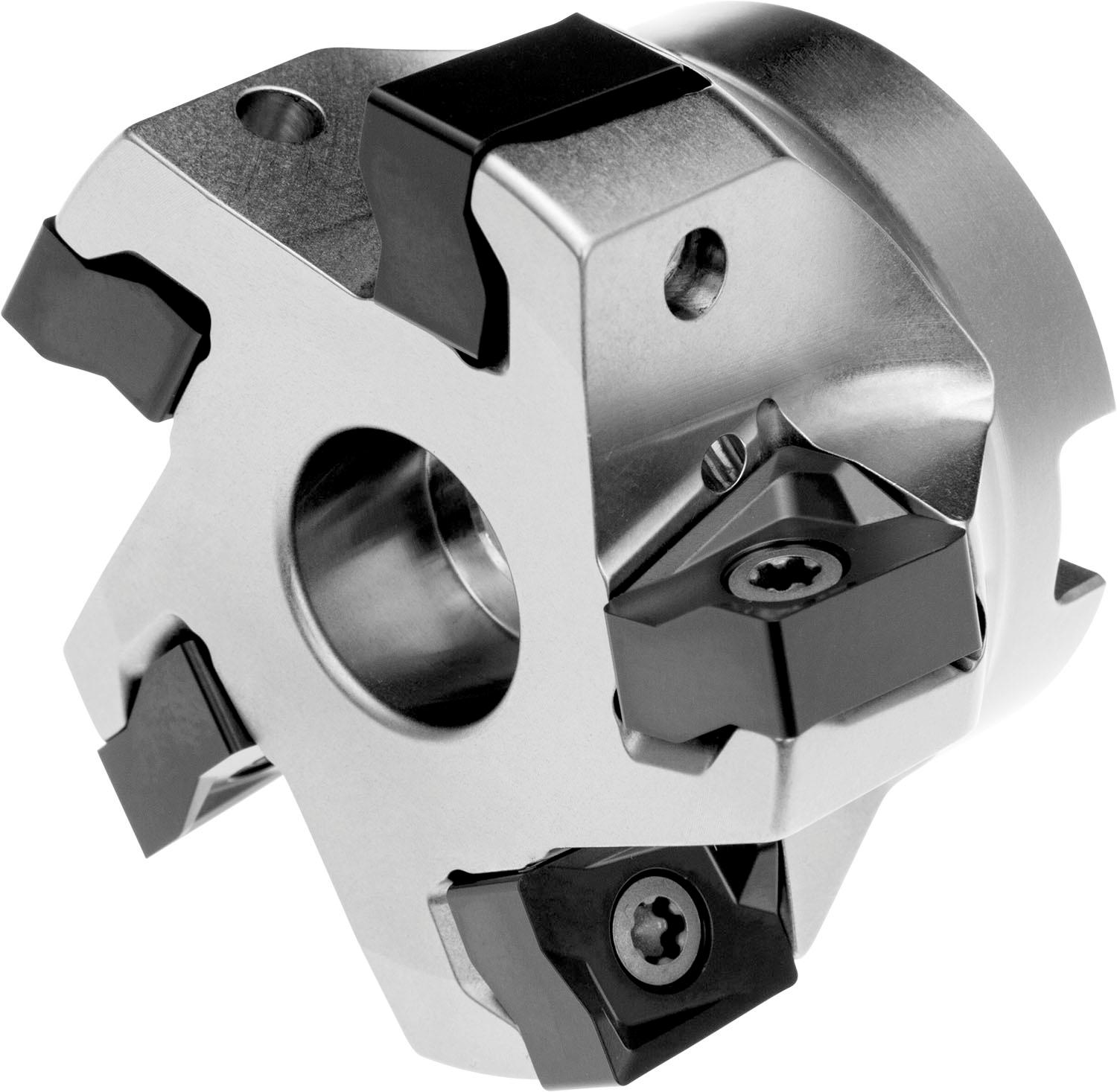

PRAMET 80A06R-S90LN16-C Milling cutters with clamping by screw

Product Code: 80A06R-S90LN16-C

$1,240.64$1,127.85 Ex. GST

Product Code: 80A06R-S90LN16-C SKU 80A06R-S90LN16-C Categories , ,

Need Technical Advice?

Head over to our other technical website - millerstooling.com.au

Description

Shoulder mill with double negative geometry which utilises 6 of LNMU 1607.. or LNGU 1607.. double-sided inserts, cutting diameter 80mm with 90° approach angle and 27mm connection bore according to DIN 8030-A, 50mm protrusion length, through coolant and differential pitch for shallow shoulder milling, shallow slot milling and plunge milling with a maximum depth of cut of 13.0mm

Additional information

Weight 1.2045 kg
barcode
Additional Information

Description: Value
EAN number: 3603602956576
Product number (SAP): 86001215
Ordering code ANSI: 80A06R-S90LN16-C
Product Line: ECON LN
Gross weight – grams: 991
Cutting diameter – millimeter (DC): 80 mm
Functional length – millimeter (LF): 50 mm
Connection diameter – millimeter (DCON MS): 27 mm
Counterbore diameter connection bore – millimeter (DCCB): 38 mm
Keyway width – millimeter (KWW): 12.4 mm
Keyway depth – millimeter (KWD): 7 mm
Radial rake angle (GAMF): -10.5
Axial rake angle (GAMP): -6
Peripheral effective cutting edge count (ZEFP): 6
Cutting pitch differential (CPDF): Yes
Rotational speed maximum (RPMX): 6800
Net weight – grams: 890
Cutter Design: SLN16
Insert index count (NOI): 6
ISO: 80A06R-S90LN16-C

Brand

PRAMET
