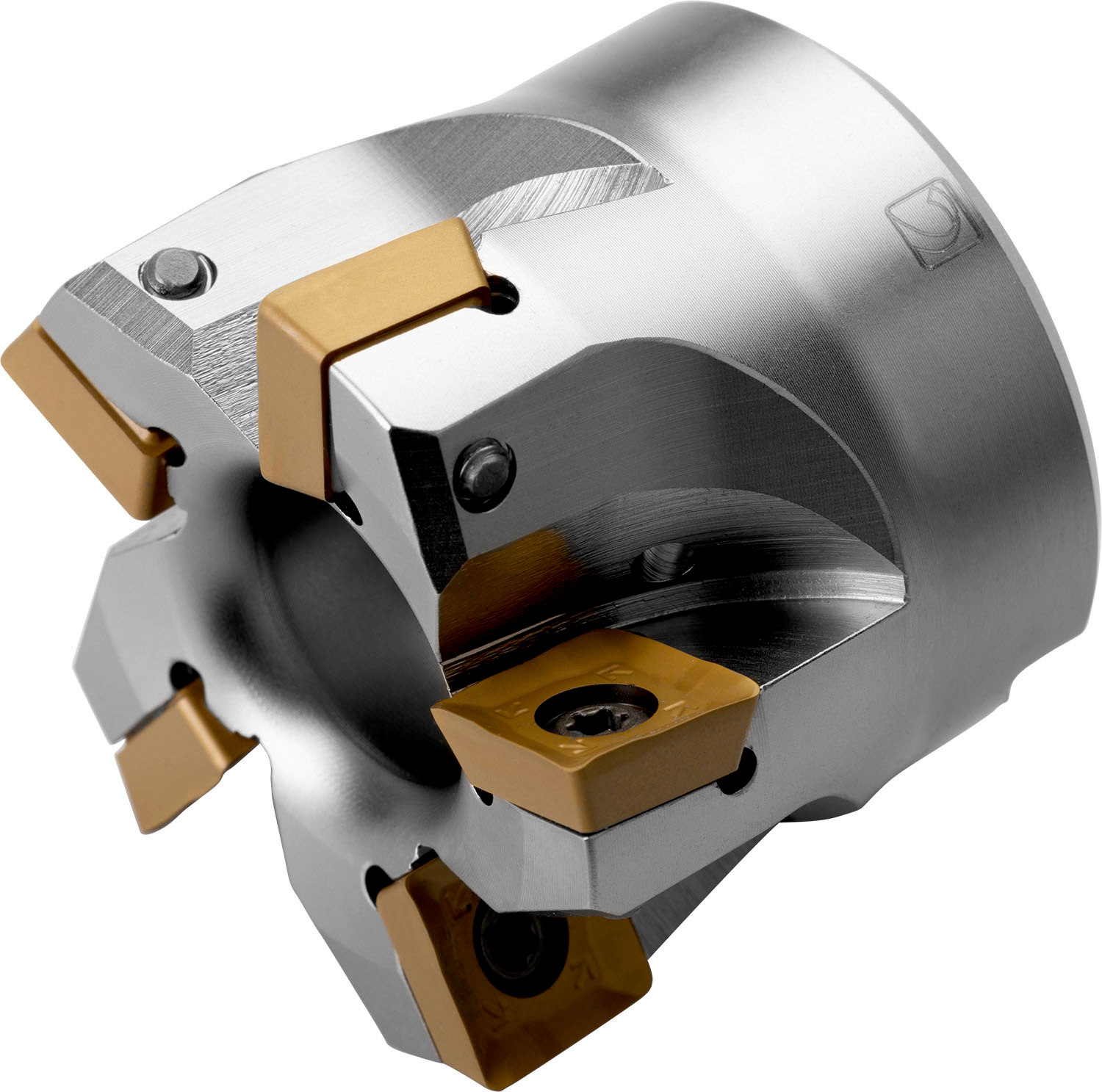

PRAMET 80A06R-S90SD12-C Milling cutters with clamping by screw

Product Code: 80A06R-S90SD12-C

$1,080.88$982.62 Ex. GST

Product Code: 80A06R-S90SD12-C SKU 80A06R-S90SD12-C Categories , ,

Need Technical Advice?

Head over to our other technical website - millerstooling.com.au

Description

Shoulder mill with positve/negative geometry which utilises 6 of SDMT 1205.. single-sided inserts, cutting diameter 80mm with 90° approach angle and 27mm connection bore according to DIN 8030-A, 50mm protrusion length, through coolant for shallow shoulder milling, shallow slot milling and plunge milling with a maximum depth of cut of 10.0mm

Additional information

Weight 1.0494 kg
barcode
Additional Information

Description: Value
EAN number: 3603602955289
Product number (SAP): 86000409
Ordering code ANSI: 80A06R-S90SD12-C
Gross weight – grams: 1195.5
Cutting diameter – millimeter (DC): 80 mm
Functional length – millimeter (LF): 50 mm
Connection diameter – millimeter (DCON MS): 27 mm
Counterbore diameter connection bore – millimeter (DCCB): 38 mm
Keyway width – millimeter (KWW): 12.4 mm
Keyway depth – millimeter (KWD): 7 mm
Radial rake angle (GAMF): -5
Axial rake angle (GAMP): 8
Peripheral effective cutting edge count (ZEFP): 6
Rotational speed maximum (RPMX): 10300
Net weight – grams: 1160.6
Cutter Design: SSD12
Insert index count (NOI): 6
ISO: 80A06R-S90SD12-C

Brand

PRAMET
