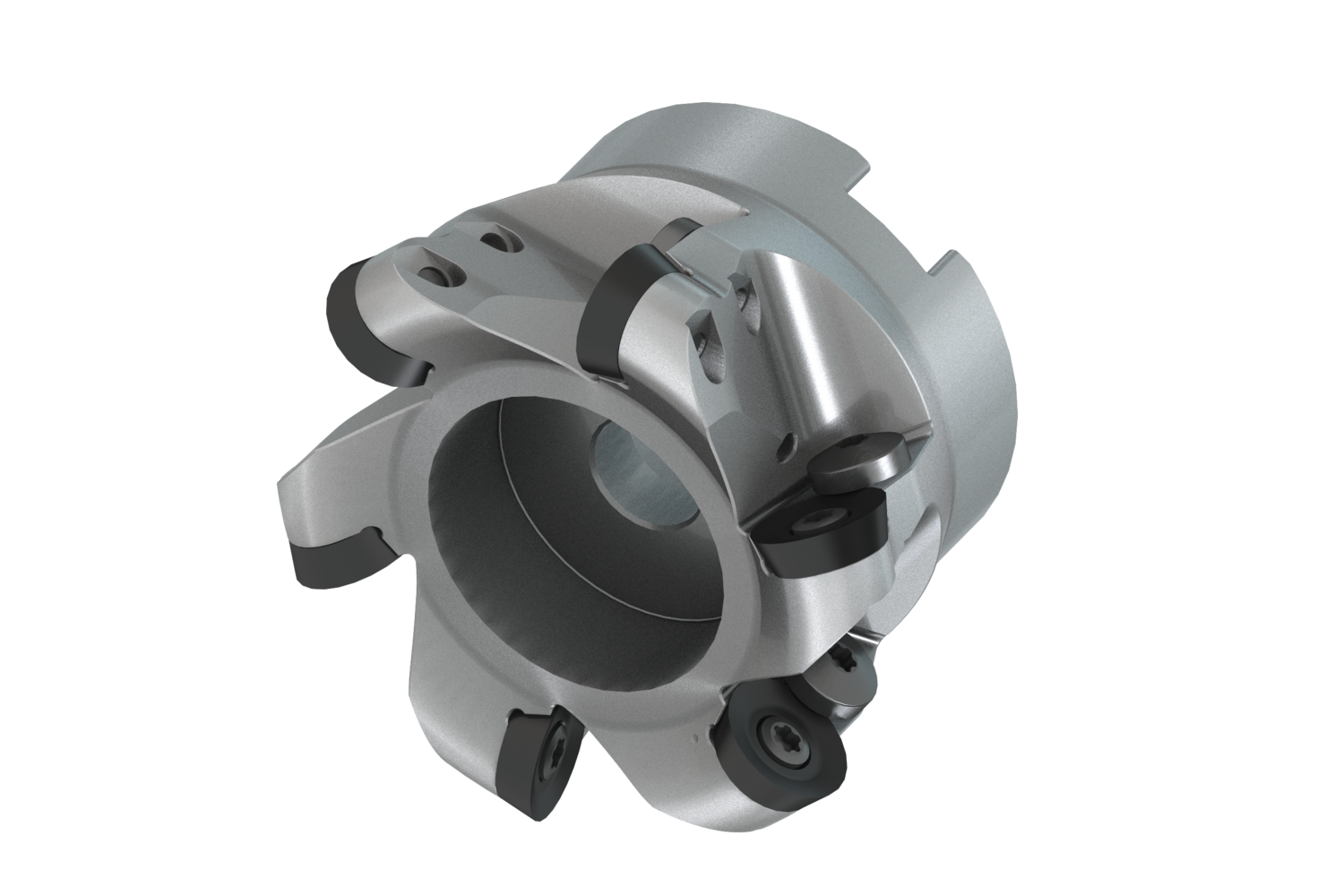

PRAMET 80A06R-SCMORD16-CF Milling cutters for D&M

Description: Value
EAN number: 3603603830080
Product number (SAP): 86037362
Ordering code ANSI: 80A06R-SCMORD16-CF
Gross weight – grams: 866.6
Cutting diameter maximum – millimeter (DCX): 80 mm
Cutting diameter – millimeter (DC): 64 mm
Connection diameter – millimeter (DCON MS): 27 mm
Counterbore diameter connection bore – millimeter (DCCB): 38 mm
Functional length – millimeter (LF): 52 mm
Keyway width – millimeter (KWW): 12.4 mm
Keyway depth – millimeter (KWD): 12.4 mm
Radial rake angle (GAMF): 0
Axial rake angle (GAMP): 7
Peripheral effective cutting edge count (ZEFP): 6
Rotational speed maximum (RPMX): 8000
Net weight – grams: 866.6
Cutter Design: SRD16
Insert index count (NOI): 6
ISO: 80A06R-SCMORD16-CF
