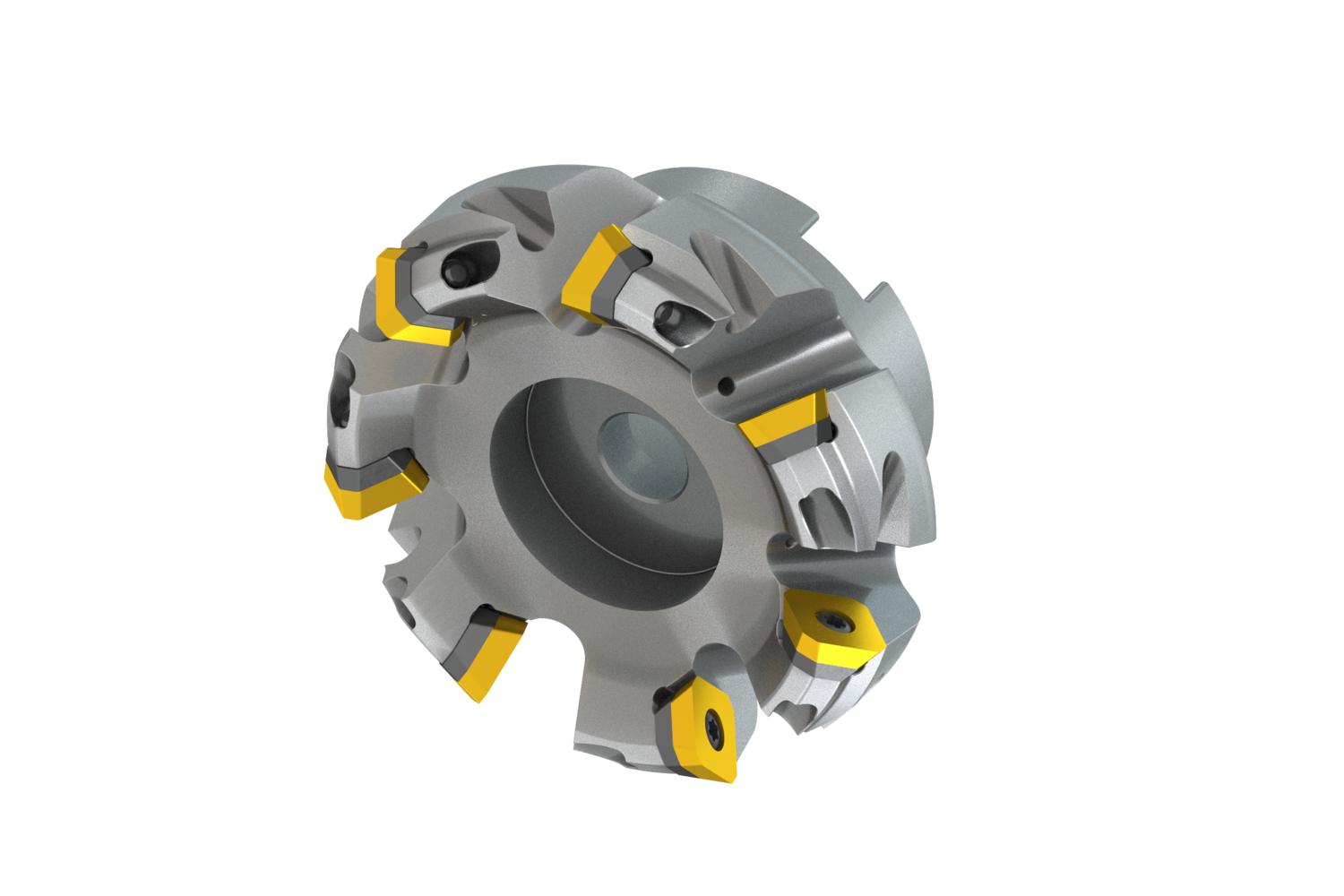

PRAMET 80A07R-S45SD13F-C Milling cutters with clamping by screw

Description: Value
EAN number: 3603603977235
Product number (SAP): 86038940
Ordering code ANSI: 80A07R-S45SD13F-C
Gross weight – grams: 1215.5

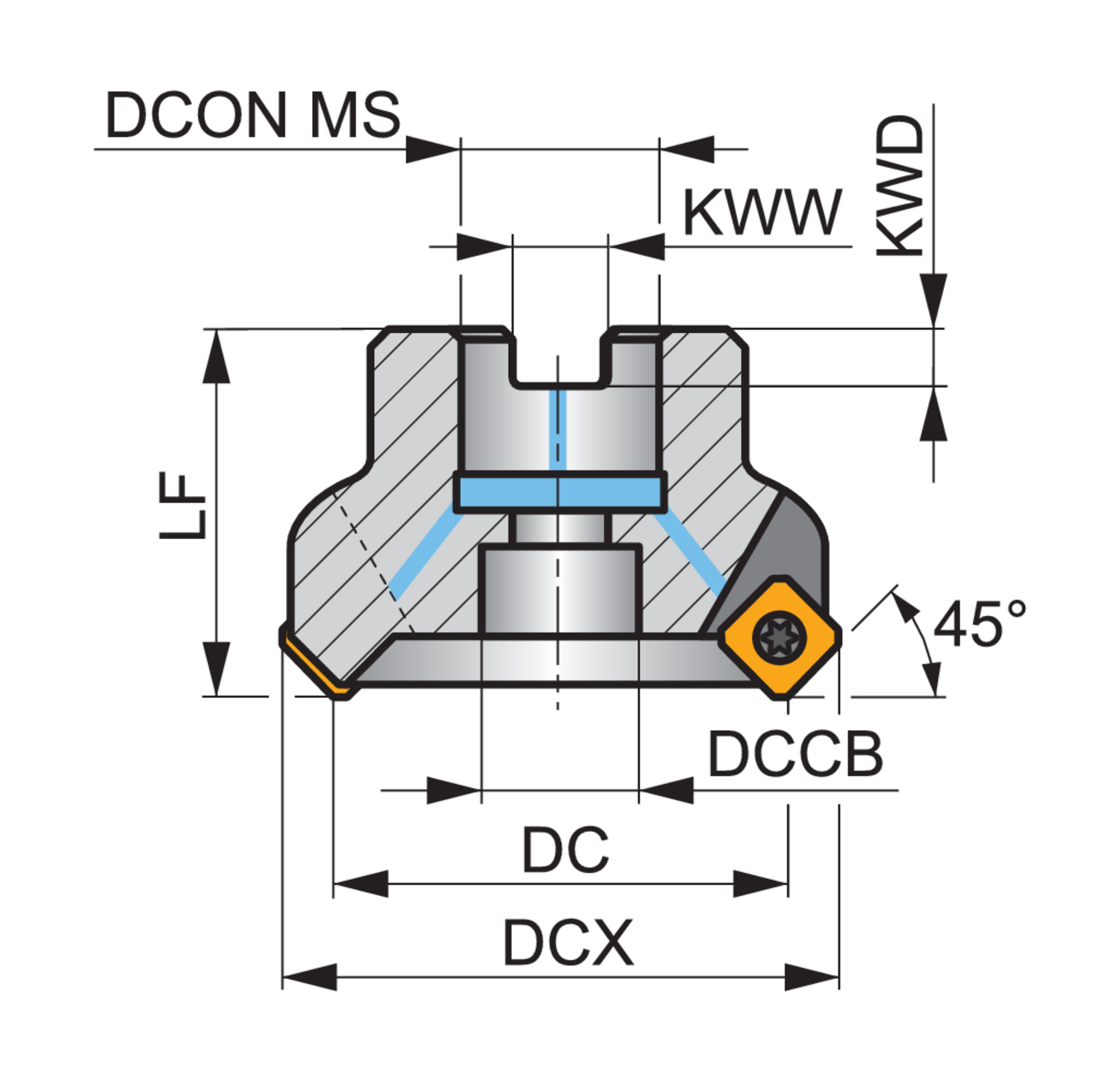

Cutting diameter maximum – millimeter (DCX): 93.4 mm
Cutting diameter – millimeter (DC): 80 mm
Connection diameter – millimeter (DCON MS): 27 mm
Counterbore diameter connection bore – millimeter (DCCB): 22 mm
Functional length – millimeter (LF): 50 mm
Keyway width – millimeter (KWW): 12.4 mm
Keyway depth – millimeter (KWD): 7 mm

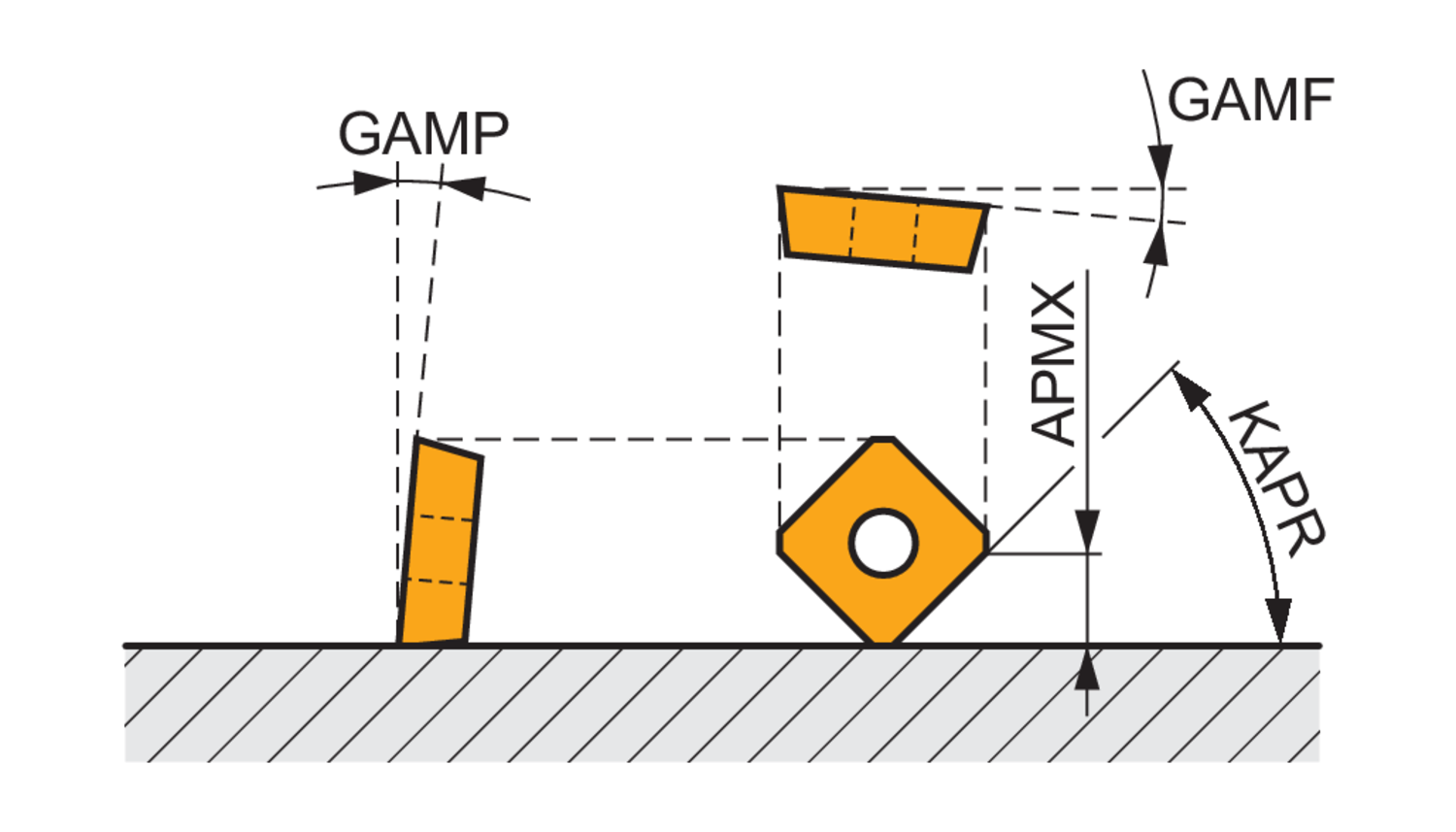

Radial rake angle (GAMF): -7
Axial rake angle (GAMP): 15
Peripheral effective cutting edge count (ZEFP): 7
Cutting pitch differential (CPDF): Yes
Rotational speed maximum (RPMX): 10200
Net weight – grams: 1213.4
Cutter Design: SSD13F
ISO: 80A07R-S45SD13F-C
