Description: Value
EAN number: 3603603844520
Product number (SAP): 86037884
Ordering code ANSI: 80A07R-S90TN16-C
Product Line: ECON TN
Gross weight – grams: 1170.3

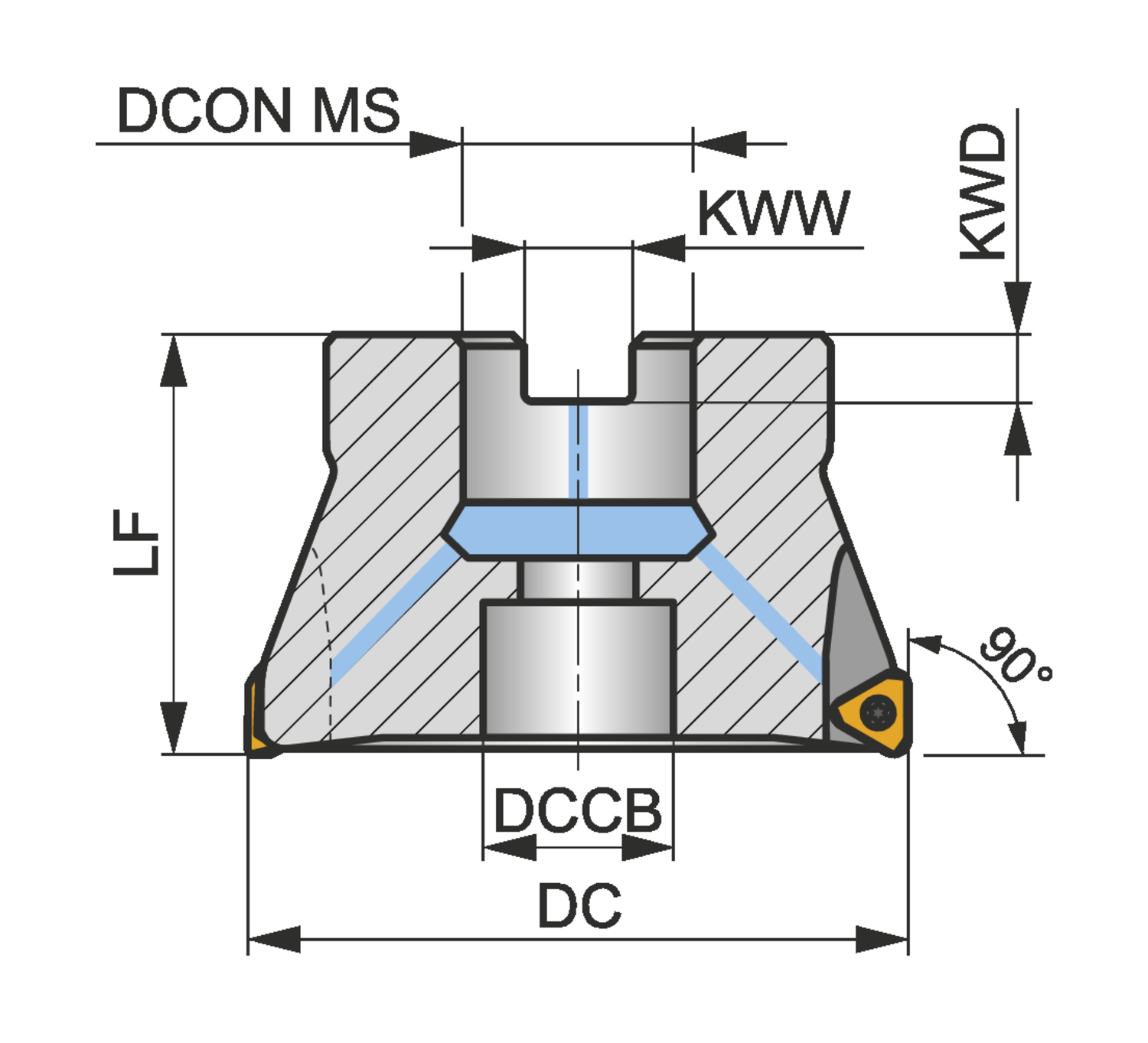

Cutting diameter – millimeter (DC): 80 mm
Overall length – millimeter (OAL): 50 mm
Connection diameter – millimeter (DCON MS): 27 mm
Counterbore diameter connection bore – millimeter (DCCB): 22.1 mm
Functional length – millimeter (LF): 50 mm
Keyway width – millimeter (KWW): 12.4 mm
Keyway depth – millimeter (KWD): 7 mm

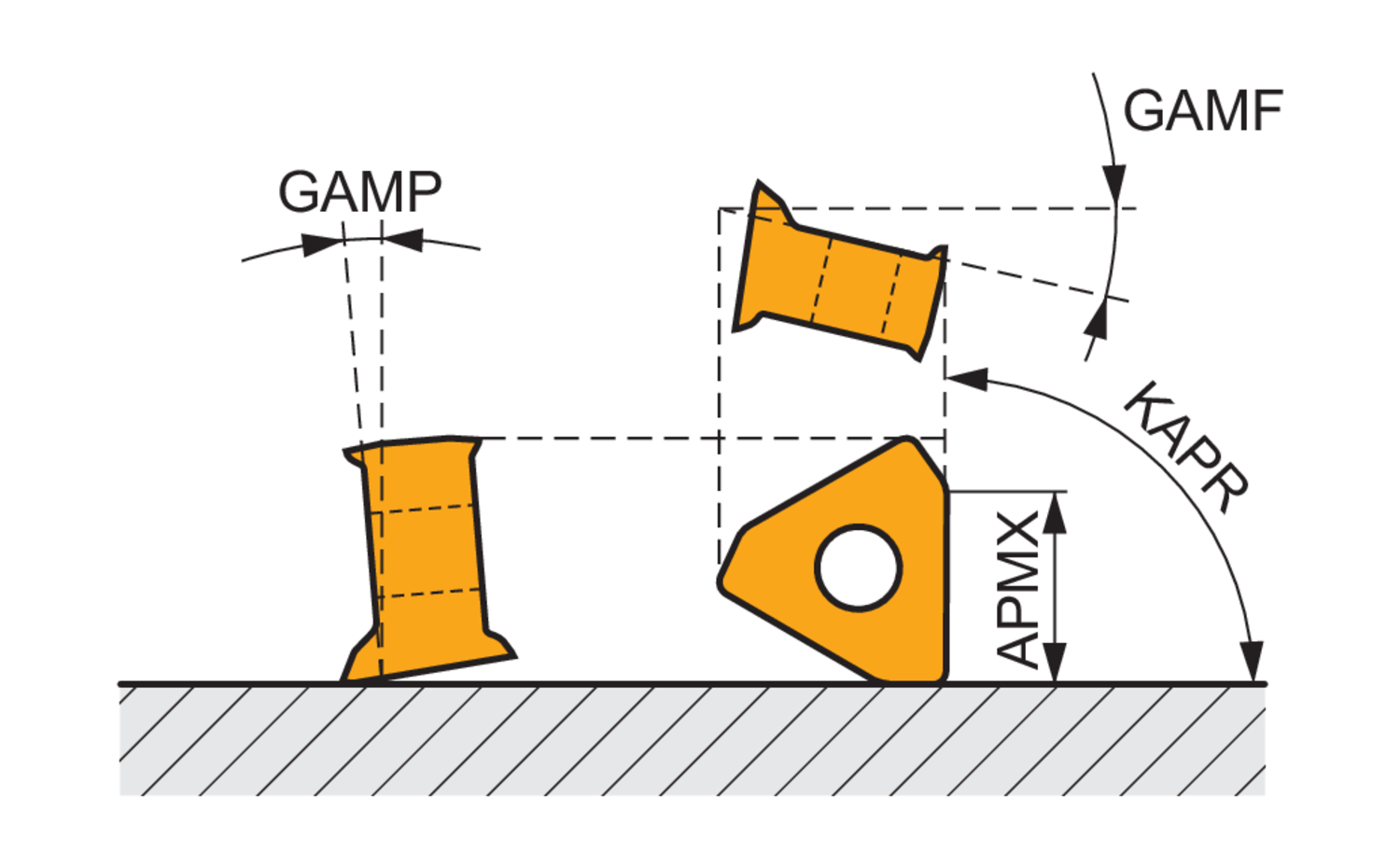

Radial rake angle (GAMF): -16
Axial rake angle (GAMP): -9.5
Peripheral effective cutting edge count (ZEFP): 7
Cutting pitch differential (CPDF): Yes
Rotational speed maximum (RPMX): 11000
Net weight – grams: 1168.1
Cutter Design: STN16
Insert index count (NOI): 7
ISO: 80A07R-S90TN16-C
|
