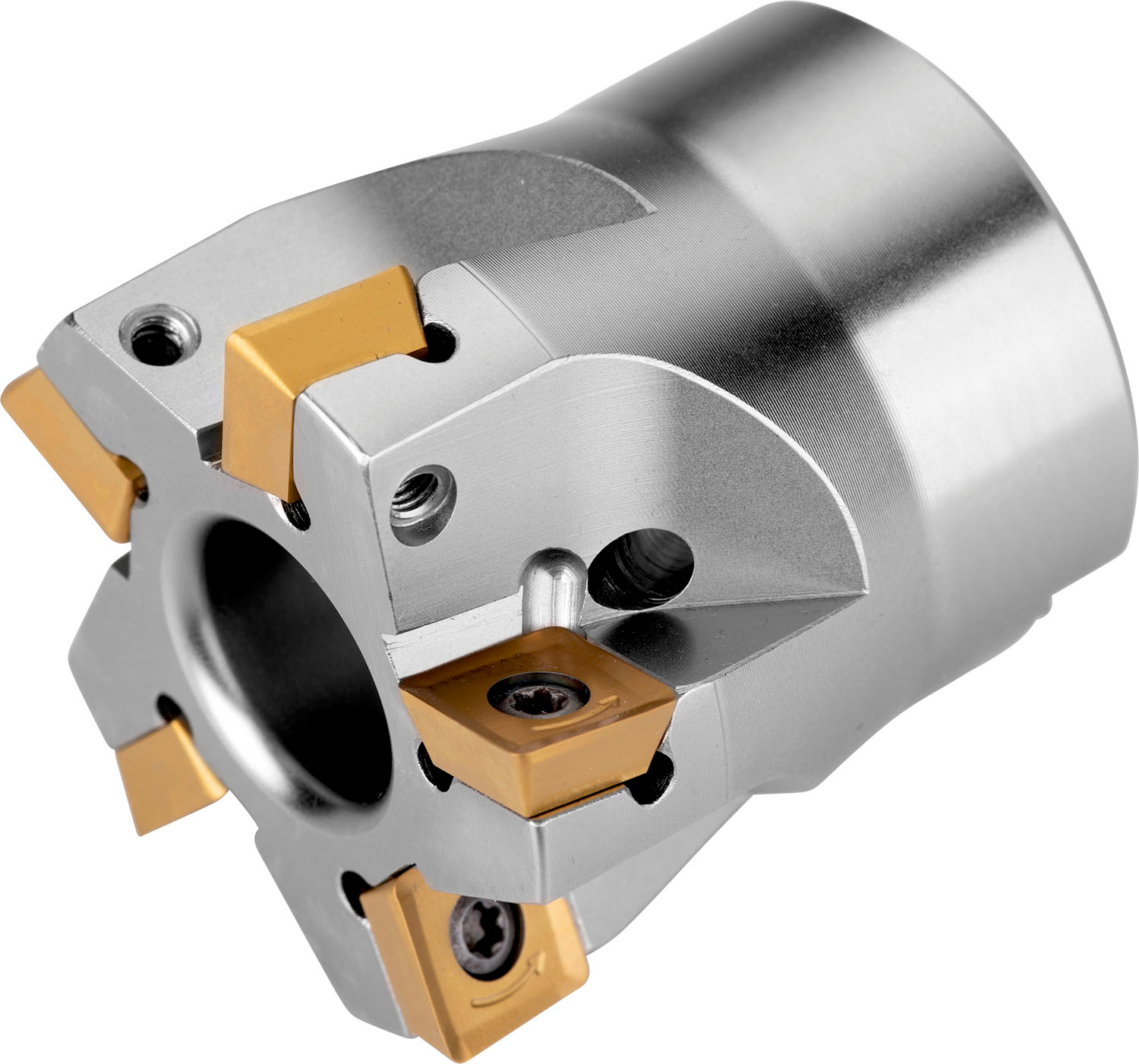

PRAMET 80A09R-S90SO09-C Milling cutters with clamping by screw

Product Code: 80A09R-S90SO09-C

$1,240.64$1,127.85 Ex. GST

Product Code: 80A09R-S90SO09-C SKU 80A09R-S90SO09-C Categories , ,

Need Technical Advice?

Head over to our other technical website - millerstooling.com.au

Description

Shoulder mill with positve/negative geometry which utilises 9 of SOMT 09T3.. single-sided inserts, cutting diameter 80mm with 90° approach angle and 27mm connection bore according to DIN 8030-A, 50mm protrusion length, through coolant for shallow shoulder milling, shallow slot milling and plunge milling with a maximum depth of cut of 8.0mm

Additional information

Weight 1.2045 kg
barcode
Additional Information

Description: Value
EAN number: 3603602936578
Product number (SAP): 84004687
Ordering code ANSI: 80A09R-S90SO09-C
Gross weight – grams: 1081.1
Cutting diameter – millimeter (DC): 80 mm
Connection diameter – millimeter (DCON MS): 27 mm
Counterbore diameter connection bore – millimeter (DCCB): 38 mm
Functional length – millimeter (LF): 50 mm
Keyway width – millimeter (KWW): 12.4 mm
Keyway depth – millimeter (KWD): 7 mm
Radial rake angle (GAMF): -8.1
Axial rake angle (GAMP): 10
Peripheral effective cutting edge count (ZEFP): 9
Rotational speed maximum (RPMX): 11900
Net weight – grams: 1030
Cutter Design: SSO09
Insert index count (NOI): 9
ISO: 80A09R-S90SO09-C

Brand

PRAMET
